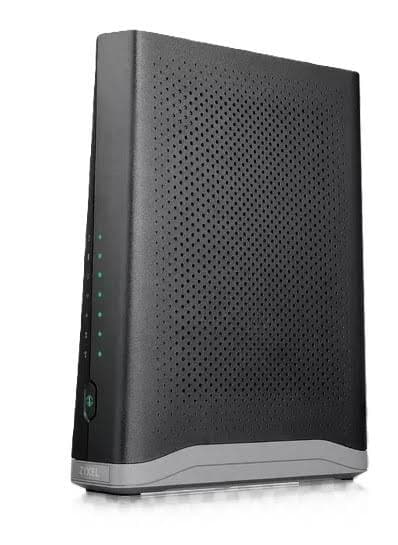

Dual Band Wifi 6 Wireless Gigabit Ethernet Gateway
The Zyxel EX3510-B Series AX5700 Wi-Fi 6 Gigabit Ethernet Gateway supports the latest dual-band wireless Wi-Fi 6 (11ax) technology for optimized bandwidth utilization to increase network capacity and the number of simultaneous streams, which allow more subscribers to enjoy superior connectivity with extremely low latency.
Feature:
Wireless standards:
- IEEE 802.11 b/g/n/ax 2.4 GHz
-
- IEEE 802.11 a/n/ac/ax 5 GHz
-
Wireless transfer rates
- Transmit:
-
- 802.11ax (2.4 GHz): up to 860.3 Mbps*
-
- 802.11ax (5 GHz): up to 4804 Mbps*
-
WLAN features
- Auto channel selection
-
- Wi-Fi Multimedia (WMM)
-
- Wireless output power management
-
- Multiple SSIDs up to 4
-
- Wi-Fi Protected Setup (WPS)
-
- Intra-BSS traffic block
-
- MAC address filtering
-
- WPS 2.0
-
- WPA2-PSK
-
- WPA3-SAE**
-
Firewall:
- IPv4/IPv6 firewall (Stateful Packet Inspection)
-
- Denial-of-Service (DoS) attack prevention
-
- ICMP blocking
-
Routing:
- IPv4/IPv6
-
- NAT
-
- Port forwarding
-
- WAN connection type: DHCP, PPPoE
-
- DHCP option 60/121/125
-
- DHCP server on LAN
-
- IGMP v2/v3
-
- IGMP proxy
-
- Dynamic DNS
-
VPN pass-through:
VLAN:
- 802.1q tag/tag based VLAN
-
- VLAN to ETH port mapping
- Bridged/routed VLAN support
-
Management:
- Web GUI (HTTP/HTTPS)
-
- TR-069/TR-098/TR-181
-
- Firmware upgrade through GUI/TR-069
-
- 2-tier level access and administration
-
Hardware specifications:
WAN
LAN
USB:
LED indicators:
- Power
-
- Internet
-
- Ethernet WAN
-
- Ethernet LAN
-
- Wi-Fi 2.4G
-
- Wi-Fi 5G
-
- WPS
-
Buttons:
Power consumption:
- 12 V DC, 2.5 A
-
- 30 Watt max
-
Physical specifications:
- Item dimensions (WxDxH): 175 x 60 x 245 mm (6.88” x 2.36” x 9.64”)
-
- Item weight: 546 g (1.20 lb.)
-
- Packing dimensions (WxDxH): 279 x 279 x 70 mm (10.98” x 10.63” x 2.76”)
-
- Packing weight: 991 g (2.19 lb.)
-
Environment specifications:
Operating environment:
- Temperature: 5°C to 40°C (41ºF to 104ºF)
-
- Humidity: 10% to 90% (Non-condensing)
