Manufacturer
Unknown
MPN
STD12NF06LT4
Available
0
Condition
New

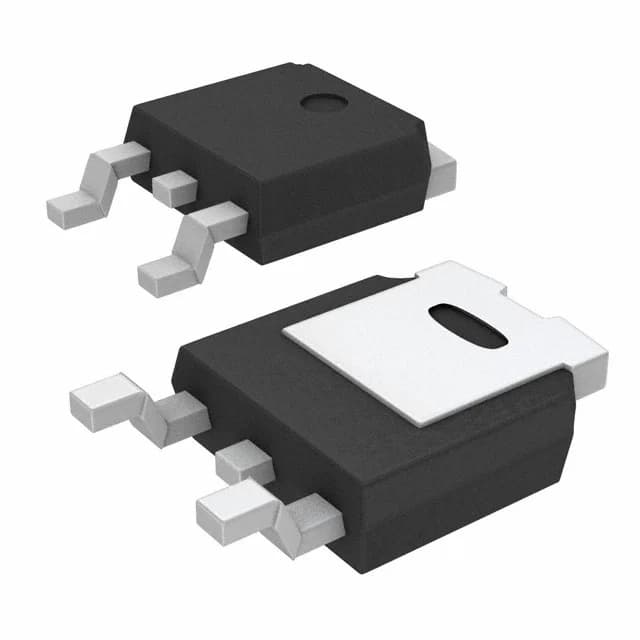

Unknown STD12NF06LT4 - N-mosfet Std12nf06lt4 Dpak Xb3
The Unknown STD12NF06LT4 is a high-quality N-mosfet transistor designed for various electronic applications. This N-mosfet transistor features a low on-resistance and high current handling capability, making it suitable for high-power applications.
Specifications | |
| Mounting Style: | SMD/SMT |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 1 Channel |
| Vds - Drain-Source Breakdown Voltage: | 60 V |
| Id - Continuous Drain Current: | 12 A |
| Rds On - Drain-Source Resistance: | 90 mOhms |
| Vgs - Gate-Source Voltage: | - 20 V, 20 V |
| Vgs th - Gate-Source Threshold Voltage: | 1 V |
| Qg - Gate Charge: | 7.5 nC |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 175 C |
| Pd - Power Dissipation: | 30 W |
| Configuration: | Single |
| Fall Time: | 13 ns |
| Rise Time: | 35 ns |
| Typical Turn-Off Delay Time: | 20 ns |
| Typical Turn-On Delay Time: | 10 ns |
| Unit Weight: | 330 mg |
