Manufacturer
Unknown
MPN
PWRT-210-S
MOQ
94
Available
63,054
Condition
New

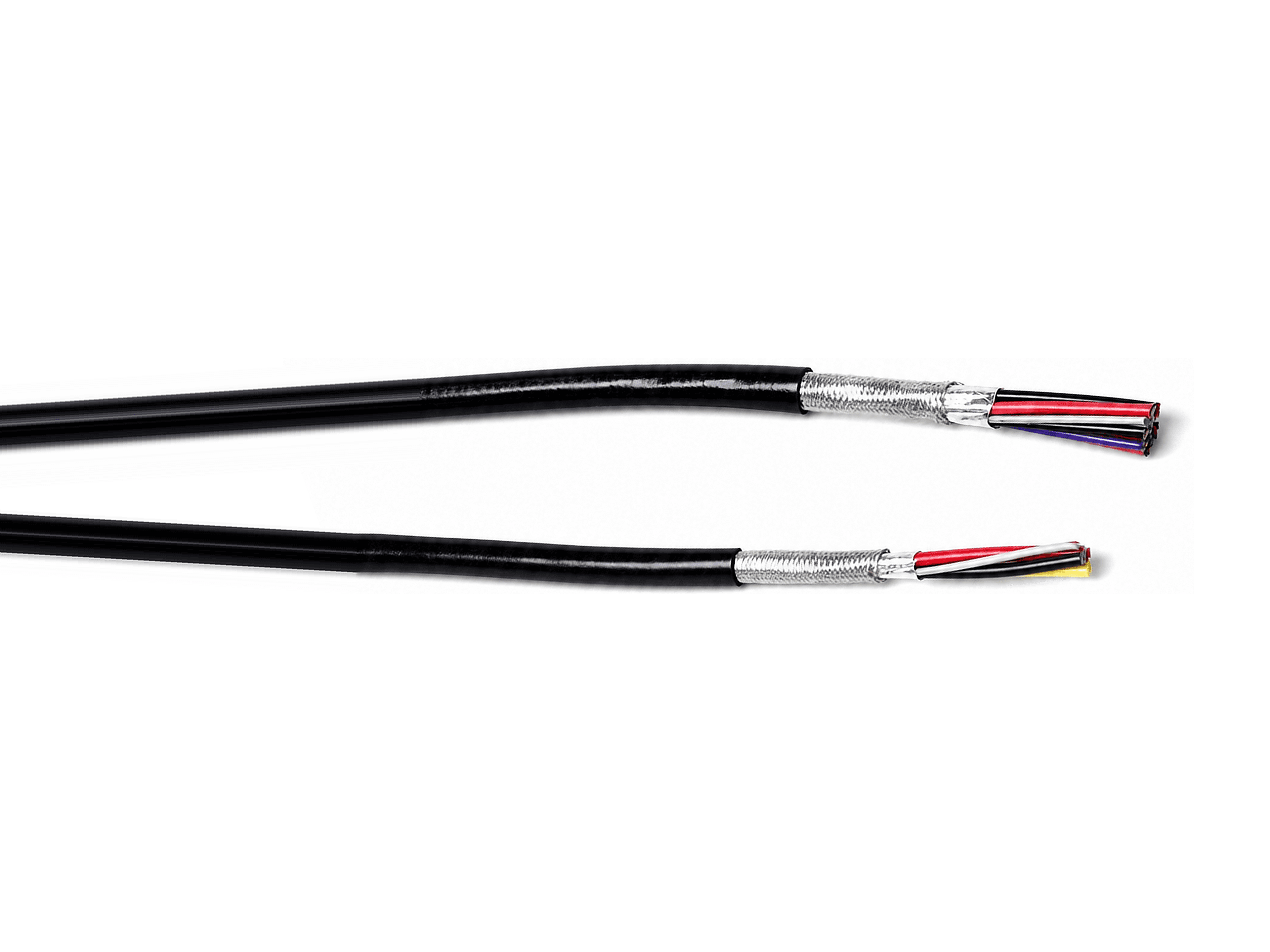

10 Awg Pwr Cable 2 Conductor
The Unknown PWRT-210-S is a high-quality power cable designed for heavy-duty use. It features 10 AWG (American Wire Gauge) wire, making it suitable for handling high levels of electrical current. This power cable is ideal for use in a variety of applications, including industrial equipment, power tools, and appliances.
The outer jacket is made of a tough and flexible material. The conductors are made of high-quality copper, which provides excellent conductivity and minimizes power loss.
Specifications | |
| Cable Type | Power |
| Operating Temperature | -40°C to +90°C |
Construction Materials | |
| Construction Type | Non-Armored |
| Conductor Material | Tinned Copper |
| Dielectric Material | PVC |
| Drain Wire Material | Tinned Copper |
| Filler Material | Polypropylene |
| Ground Wire Material | Tinned Copper |
| Insulation Material, Singles | PVC |
| Jacket Material | PVC |
| Outer Shield (braid) Coverage | 65% |
| Outer Shield (braid) Gauge | 36 AWG |
| Outer Shield (braid) Material | Tinned Copper |
| Outer Shield (tape) Material | Aluminum/Poly, non-bonded |
Dimensions | |
| Cable Weight | 0.30 kg/m | 0.20 lb/ft |
| Diameter Over Conductor, Singles | 3.2004 mm/105 Strand | 0.126 in/105 Strand |
| Diameter Over Dielectric | 4.7244 mm | 0.1860 in |
| Diameter Over Drain Wire | 1.8800 mm/7 Strand | 0.0740 in/7 Strand |
| Diameter Over Ground Wire | 3.2 mm | 0.136 mm |
| Diameter Over Jacket | 12.395 mm | 0.488 in |
| Diameter Over Shield (braid) | 10.109 mm | 0.398 in |
| Jacket Thickness | 1.143 mm | 0.045 in |
Electrical Specifications | |
| Conductor dc Resistance | 1.06 ohms/kft | 3.47 ohms/km |
| Conductor dc Resistance Note | Maximum Value Based on a Standard Condition of 20°C |
| Safety Voltage Rating | 600 V |
Environmental Specifications | |
| Environmental Space | UV Resistant for Outdoor and/or Direct Burial Installations |
General Specifications | |
| Application | Industrial |
| Jacket Color | Black |
| Conductor Gauge, Singles | 10 AWG |
| Conductor Type, Singles | Stranded |
| Conductors | 2 |
| Construction Type | Discrete Power Cable |
| Drain Wire Gauge | 14 AWG |
| Ground Wire Gauge | 10 AWG |
| Ground Wire Type | Stranded |
| Jacket Color, Singles | Black | Red |
| Weight | 0.21 lbs |
