Manufacturer
Ubiquiti Networks
MPN
LTU-Pro
Available
1
Condition
New

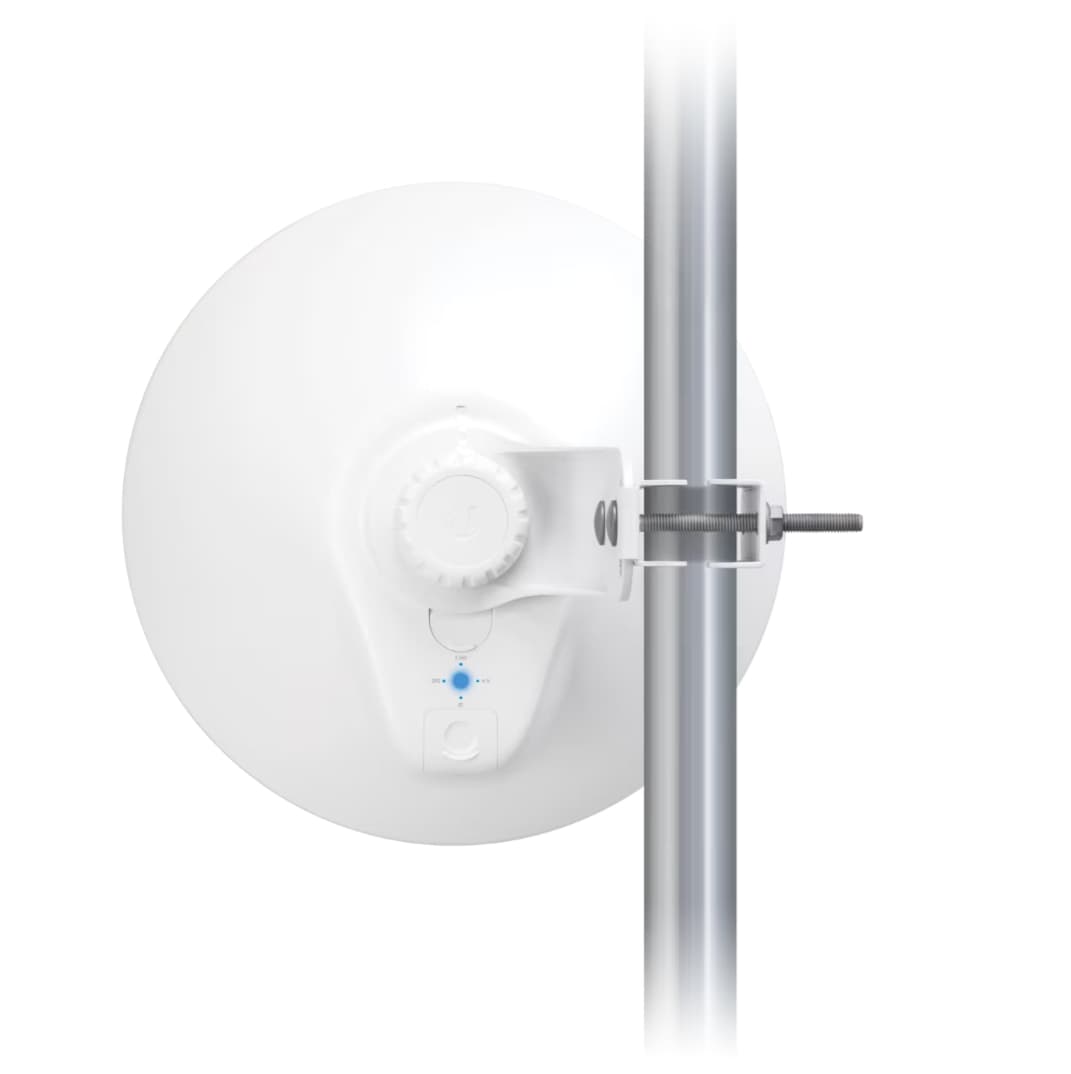

Ubiquiti Networks LTU-Pro – 5 GHz PtMP Client – 24 dBi Antenna
The Ubiquiti Networks LTU-Pro is a high-performance PtMP (Point-to-Multi-Point) client designed for use in 5 GHz wireless networks. It features a powerful 24 dBi antenna, making it ideal for long-range connections and providing reliable and stable connectivity. This PtMP client is part of Ubiquiti's LTU technology, which offers improved scalability, noise immunity, and throughput compared to traditional wireless technologies.
The LTU-Pro is designed for easy installation and can be mounted on a pole or wall. With its advanced features and high-gain antenna, the LTU-Pro is capable of delivering high-speed data transfer rates and low latency, making it perfect for applications such as video streaming, online gaming, and VoIP.
Mechanical | |
|---|---|
| Dimensions | 316.5 x 316.5 x 174.3 mm (12.5 x 12.5 x 6.9") |
| Weight | 1.3 kg (2.9 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Mounting | Pole mount (Kit included) |
| Wind loading | 150 N at 200 km/h (33.72 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 22–27V DC |
| Max. power consumption | 9W |
| ESD/EMP protection | Air/contact: ± 24kV |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
Software | |
| Modes | PtMP CPE, PtP* *1.5.1 and later 1.5.x series firmware. |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is available in PtMP CPE mode only. |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser iOS or Android based smartphone |
System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
RF | |
| Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 EU Worldwide | 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz 2400 - 2483.5 MHz 5150 - 5875 MHz 2400 - 2483.5 MHz 4800 - 6200 MHz *Depends on regulatory region. |
| Max. conducted TX power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later. |
| Antenna gain | 24 dBi |
| Beamwidth | 14° |
| Sidelobe level | -10 dB |
| Front-to-back ratio | 27 dB |
Please refer to the following attachments for additional details on the product.
