Manufacturer
Tripp Lite
MPN
SMART500RT1U
Available
0
Condition
New

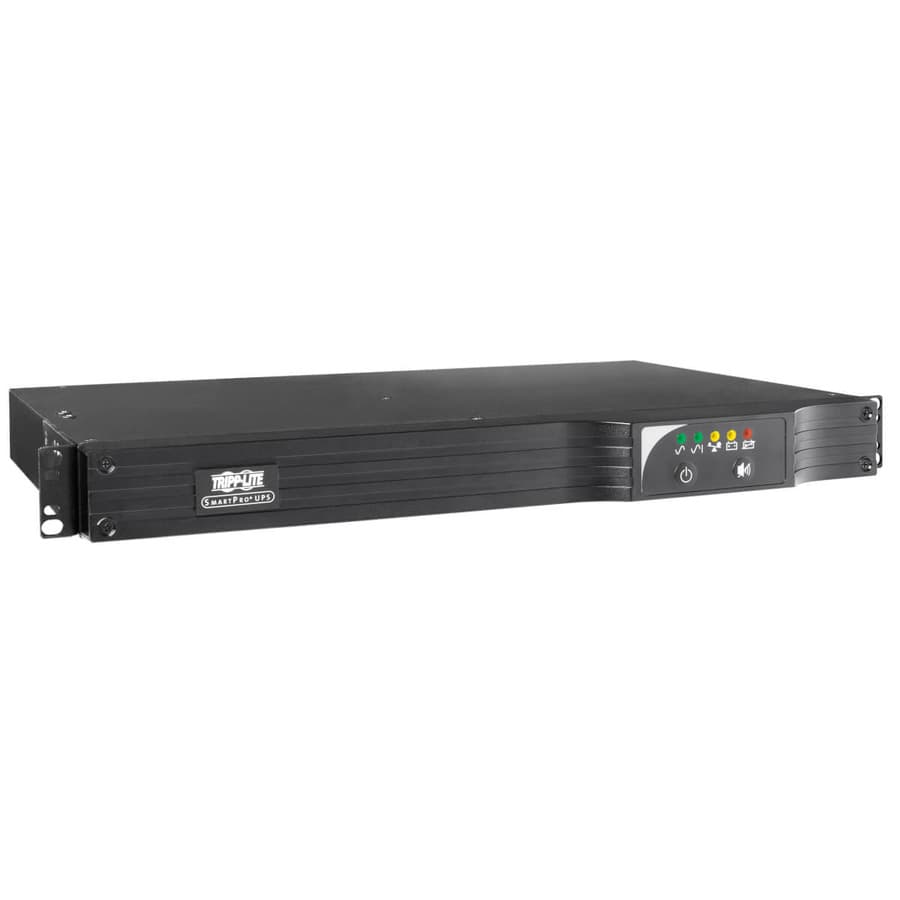

Tripp Lite SMART500RT1U - SmartPro Rack UPs, 300W
The Tripp Lite SMART500RT1U is a SmartPro Rack UPS that provides reliable power protection for your critical equipment. With a power capacity of 300W, this UPS is designed to keep your devices running during power outages, surges, and sags.
It features 6 outlets, 3 of which are battery-supported and surge-protected, while the other 3 are surge-protected only. This allows you to connect a variety of devices and protect them from power fluctuations. This enables you to monitor the UPS status and perform automatic shutdowns in case of extended power outages.
Tripp Lite SMART500RT1U .5 kVA / 500VA / 300 watt line interactive UPS
1U rack / tower compatible form factor
NEMA 5-15P input connection; 7 NEMA 5-15R output receptacles
Installed depth of only 11.8 in / 29.8 cm
Large internal batteries offer runtimes of 14.6 minutes at half load (250VA/150 watts) and 3.2 minutes at full load (500VA/300 watts)
Intelligent battery management system extends battery life
Maintains regulated 120V nominal output during brownouts as low as 90V
Includes 6 UPS-supported outlets and 1 surge-only outlet
One of the UPS supported outlets is switched for remote load shedding or rebooting of an individual device
USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software
Supports detailed monitoring of equipment load levels,self-test data, and utility power condition via built-in RS-232 and USB interfaces
Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
Emergency Power Off (EPO) interface with cable
Multi-function audible alarms and set of 5 front panel LEDs
Network-grade AC surge suppression
Field-replaceable, hot-swappable internal UPS batteries
Specifications | |
Input: | |
| Rated input current (Maximum Load) | 10A |
| Nominal Input Voltage(s) Supported | 120V AC |
| UPS Input Connection Type | NEMA 5-15P |
| Input Circuit Breakers | 10A |
| UPS Input Cord Length (ft.) | 10 |
| UPS Input Cord Length (m) | 3.1 |
| Recommended Electrical Service | 15A 120V |
| Input Phase | Single-Phase |
Output: | |
| Output Volt Amp Capacity (VA) | 500 |
| Output Watt Capacity (Watts) | 300 |
| Output kW Capacity (kW) | 2.4 |
| Output Capacity Details | 4.2A @ 120V. (LINE MODE) 120% @ 5 minutes; (BATTERY MODE) 120% @ 5 seconds |
| Power Factor | 0.6 |
| Nominal Voltage Details | 120V sinusoidal in line mode and 120V PWM in battery mode |
| Frequency Compatibility | 60 Hz |
| Frequency Compatibility Details | Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. |
| Output Voltage Regulation (Line Mode) | -14%, +16% |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| UPS Output Receptacles (Surge Suppression Only) | 5 UPS outlets, 1 surge-only outlet |
| Load Management Receptacles | One switchable single-outlet 5-15R load bank |
| Output Circuit Breakers | 15A branch rated (x2) - each breaker protects 4 outlets, L5-30R is unbreakered |
| Output AC Waveform (AC Mode) | Sine wave |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Nominal Output Voltage(s) Supported | 120V |
Battery: | |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Full Load Runtime (min.) | 3 min. (300w) |
| Half Load Runtime (min.) | 14 min. (150w) |
| Expandable Battery Runtime | Supports extended runtime with optional external battery packs |
| Expandable Runtime | No |
| DC System Voltage (VDC) | 12 |
Voltage Regulation: | |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 90 (±5%). Input voltage range of 90 to 139 |
| Undervoltage Correction | Input voltages between 90 and 105 (±5%) are boosted by 14% |
User Interface, Alerts & Controls: | |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch |
| Audible Alarm | Audible alarm indicates power-failure, overload and low-battery conditions |
| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
Surge / Noise Suppression: | |
| UPS AC Suppression Joule Rating | 567 J |
| UPS AC Suppression Response Time | Instantaneous |
| EMI / RFI AC Noise Suppression | Yes |
Physical: | |
| Primary Form Factor | Rackmount; Tower |
| Included Mounting Accessory Description | Included mounting brackets provide front-rail installation in 2 or 4 post racks, plus upright tower configurations |
| Installation Form Factors Supported with Included Accessories | 2 post 19 inch rackmount; 2 post front mount; 4 post 19 inch rackmount; Tower |
| Minimum Required Rack Depth (cm) | 36.32 |
| Minimum Required Rack Depth (inches) | 14.3 |
| Primary UPS Depth (mm) | 286 |
| Primary UPS Height (mm) | 44 |
| Primary UPS Width (mm) | 440 |
| Rack Height | 1U |
| Shipping Dimensions (hwd / cm) | 10.67 x 39.88 x 54.10 |
| Shipping Dimensions (hwd / in.) | 4.20 x 15.70 x 21.30 |
| Shipping Weight (kg) | 8.67 |
| Shipping Weight (lbs.) | 19.12 |
| UPS Housing Material | Steel |
| UPS Power Module Dimensions (hwd, cm) | 4.39 x 43.99 x 28.60 |
| UPS Power Module Dimensions (hwd, in.) | 1.73 x 17.32 x 11.26 |
| UPS Power Module Weight (kg) | 7.18 |
| UPS Power Module Weight (lbs.) | 15.84 |
Environmental: | |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Relative Humidity | 0 to 95%, non-condensing |
| AC Mode BTU / Hr. (Full Load) | 48 |
| AC Mode Efficiency Rating (100% Load) | 97% |
| AC Economy Mode Efficiency Rating (100% Load) | 0.97 |
| Operating Elevation (ft.) | 6561 ft. (2000 m) above sea level |
| Audible Noise | 45 dBA maximum, front side 1m |
