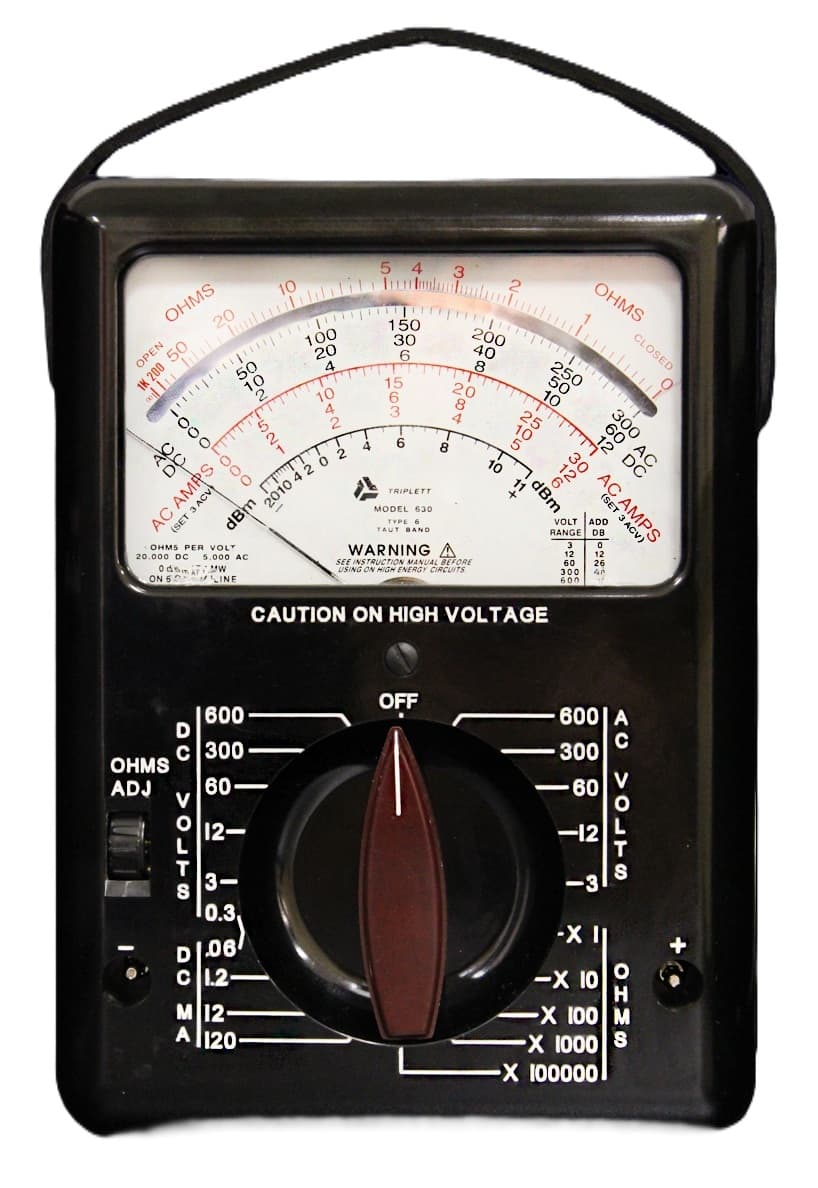

Triplett 3030 - Model 630 Analog Tester. 25 Ranges And Functions Glass Meter Window Two Input Jacks Ac Voltage Frequency Response To 40kgz Resistance Measurement Of 30v/100m On Rx100k Range

Triplett 3030 - Model 630 Analog Tester. 25 Ranges And Functions  Glass Meter Window  Two Input Jacks  Ac Voltage Frequency Response To 40kgz  Resistance Measurement Of 30v/100m On Rx100k Range

Product Features:

• Single range switch helps reduce chance of operator error

• Offers diode overload protection with 2 fuse arrangement

• Mirrored scale reduces parallax error

• Decibel function suitable for audio work

• All ranges are fuse protected

• Compact and rugged design with thermoset plastic case

• Offers 25 ranges and functions

• Glass meter window provides added chemical resistance

• Two input jacks help minimize error

• AC Voltage frequency response to 40KHz typical

• Resistance measurement of 30V / 100M on Rx100K range for testing insulation

• AC/DC voltage to 600V

• DC current to 120 mA

• Resistance to 10 Megaohms
