Manufacturer
Trina Solar
MPN
TSM-425-NE09RC.05
Available
0
Condition
New

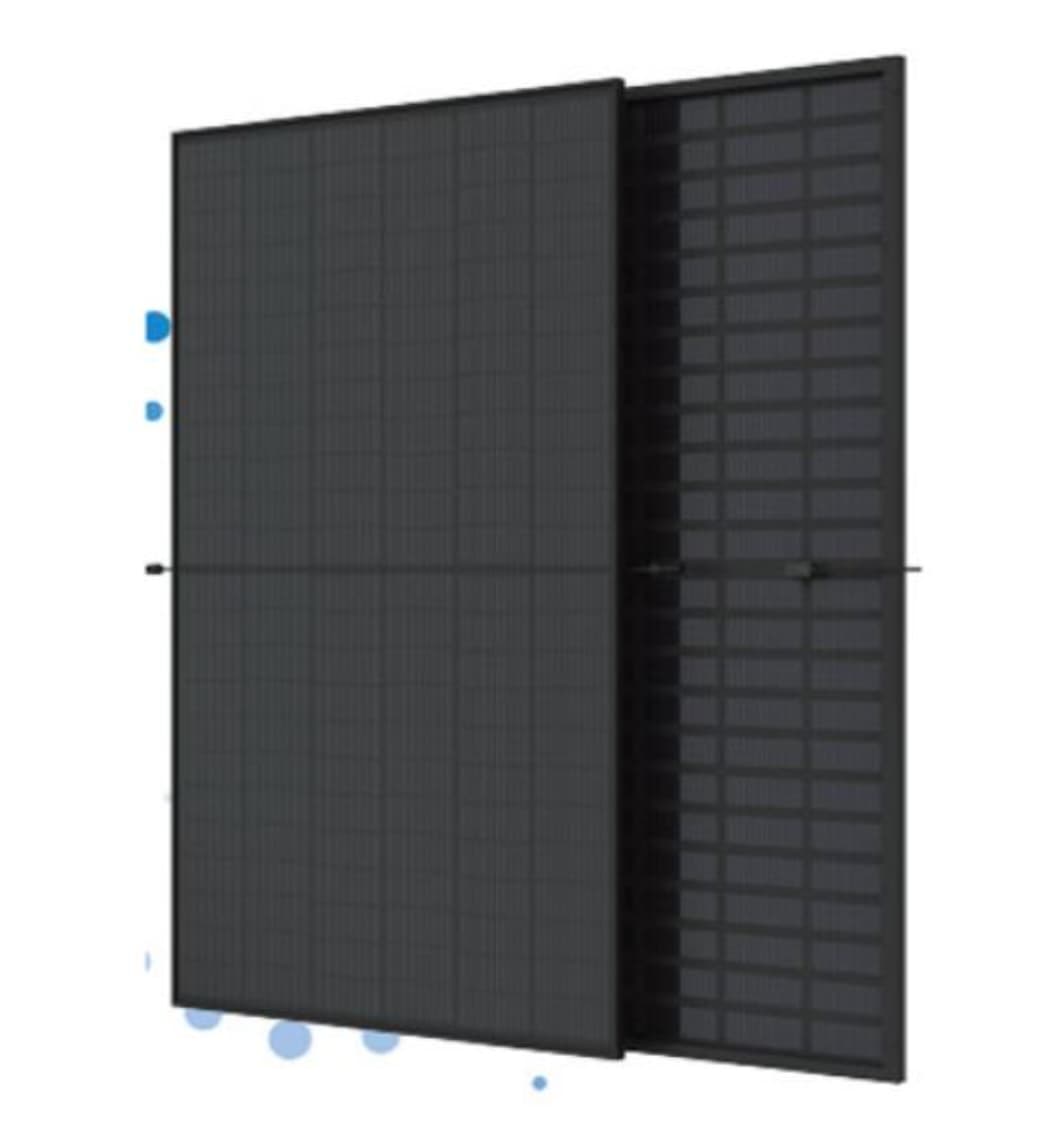

Trina Solar TSM-425-NE09RC.05 - Tri 425w 144c S+
The Trina Solar TSM-425-NE09RC.05 is a high-performance solar panel designed and manufactured by the reputable brand Trina Solar. With a maximum power output of 425 watts, this solar panel is capable of generating a significant amount of electricity, making it ideal for larger energy needs. It features 144 monocrystalline cells, which are known for their high efficiency and durability.
This ensures that the panel can continue to produce electricity even in low light conditions. The TSM-425-NE09RC.05 is also designed with advanced technology, including PERC technology, which allows for higher energy conversion efficiency. This means that more sunlight is converted into usable electricity, resulting in greater energy savings for the user.
Specifications | |
| Watts PTC | 324 |
| Cells | 144 |
| Open Circuit Voltage (Voc) | 51.4 |
| Max Power Voltage (Vmpp) | 43.2 |
| Max Current | 25 A |
| Max System Voltage | 1500 V |
| Frame Thickness (mm) | 30 |
| Backsheet Material | Black Grid Transparent Backsheet |
| Output Cables | Photovoltaic Technology Cable 4.0mm2 (0.006 inches2) Landscape:N 1100 mm/ P1100 mm(43.31/43.31 inches) |
| Temp Coefficient (Pmpp) | -0.30 |
| Watts STC | 425 W |
| Technology | Monocrystalline |
| Short Circuit Current (Isc) | 10.47 |
| Max Power Current (Impp) | 9.84 |
| Efficiency | 21.3 |
| Frame Material | Anodized Aluminum Alloy |
| Frame Color | Black |
| Connector | MC4 / EVO2 |
| Series Fuse Rating (Amps) | 25 |
| Temp Coefficient (Voc) | -0.24 |
