Manufacturer
Texas Instruments
MPN
TPS564201
MOQ
667
Available
2,950
Condition
New

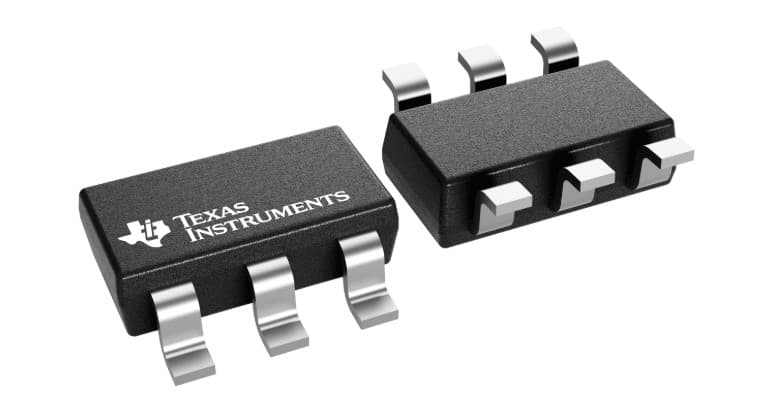

Ic Dc-dc Conv Tps564201
The Texas Instruments TPS564201 is a highly efficient DC-DC converter designed for use in a wide range of applications. This IC utilizes advanced control techniques to achieve high efficiency, with a typical efficiency of 95%. This not only helps to reduce power consumption, but also minimizes heat dissipation, making it ideal for use in space-constrained applications.
The TPS564201 also features a built-in soft-start function, which helps to reduce inrush current during start-up, prolonging the lifespan of the converter and connected components. It also has overcurrent and overtemperature protection, ensuring safe and reliable operation.
Specifications | |
| Topology | Buck |
| Iout (max) (A) | 4 |
| Vin (max) (V) | 17 |
| Vin (min) (V) | 4.5 |
| Vout (max) (V) | 7 |
| Vout (min) (V) | 0.76 |
| Control mode | D-CAP2 |
| Operating temperature range (°C) | -40 to 125 |
| Iq (typ) (A) | 0.0004 |
| Duty cycle (max) (%) | 80 |
Please refer to the following attachments for additional details on the product.
Warranty
30-days warranty
