Manufacturer
TE Connectivity
MPN
TRA6927M3NW-001
Available
0
Condition
New

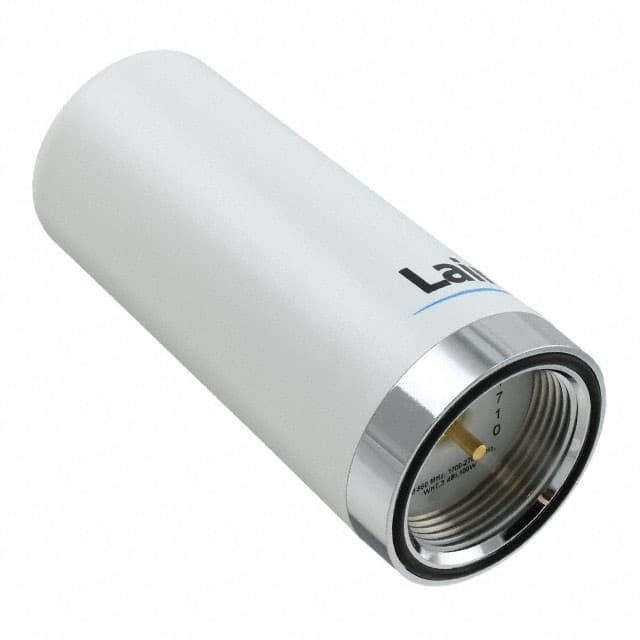

Laird 3g/4g Multiband Phantom Antenna Ideal For 698-960/1710-2700 Mhz Applications. White. 3.30" Radome Height. Nmo
The TE Connectivity TRA6927M3NW-001 is a high-performance 4G/3G multiband phantom antenna designed for use with NMO (Non-Magnetic Option) mounts. This antenna is specifically designed for use in mobile applications, making it ideal for use in vehicles such as cars, trucks, and RVs. The antenna features a sleek and compact design, with a white finish that blends in seamlessly with most vehicle exteriors.
The TRA6927M3NW-001 is a multiband antenna, meaning it is capable of receiving and transmitting signals across multiple frequency bands. This makes it a versatile option for use with various cellular networks, including 4G and 3G. One of the key features of this antenna is its phantom design. This means that the antenna is designed to be mounted inside the vehicle.
| Minimum Frequency: | 698 MHz |
| Maximum Frequency: | 2.7 GHz |
| Protocol - Bluetooth, BLE - 802.15.1: | Bluetooth |
| Protocol - Cellular, NBIoT, LTE: | 3G/4G, Cellular (NBIoT, LTE), GSM |
| Protocol - WiFi - 802.11: | WiMAX |
| Protocol - ANT, Thread, Zigbee - 802.15.4: | 802.15.4 (ANT, Thread, Zigbee), 802.16 |
| Mechanical Style: | Whip |
| Style: | Straight |
| Gain: | 3.5 dBi, 5.5 dBi, 4.6 dBi |
| Impedance: | 50 Ohms |
| VSWR: | 2.5:1, 2.0:1, 2.0:1, 2.5:1, 2.0:1 |
| Power Rating: | 100 W |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 85 C |
| Number of Bands: | 5 Band |
| Termination Style: | Connector |
| Antenna Connector Type: | NMO Connector |
| Centre Frequency: | 752 MHz, 883 MHz, 1.91 GHz, 2.14 GHz, 2.5 GHz |
| Application: | Cellular |
| Length: | 3.65 cm |
| IP Rating: | IP67 |
Please refer to the following attachments for additional details on the product.
No specifications available.
