Manufacturer
Sinclair Technologies
MPN
TN3214-R-4
Available
0
Condition
New

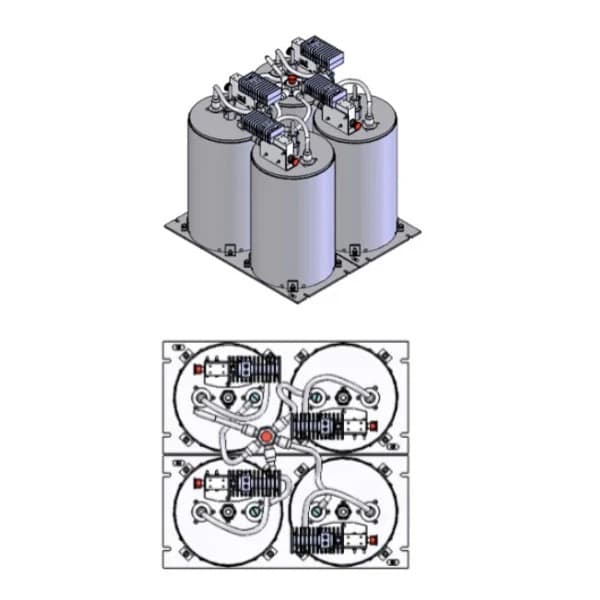

Sinclair Technologies TN3214-R-4 - *430-470 MHz 4 Channel Combiner
The Sinclair Technologies TN3214-R-4 is a 4-channel combiner designed for use in the 430-470 MHz frequency range. It is a high-performance, cost-effective solution for combining multiple signals into a single output. The TN3214-R-4 is designed to provide superior performance and reliability in a wide range of applications.
It features a low insertion loss, high isolation, and excellent return loss characteristics. The TN3214-R-4 is also designed to be easy to install and maintain, with a compact size and lightweight construction. It is ideal for use in a variety of applications, including base station, repeater, and distributed antenna systems.
Electrical | |
|---|---|
| Frequency Range (MHz) | 430 to 470 |
| Impedance (Ω) | 50 |
| Input Connectors | N-Female |
| Isolation Antenna To Tx | 50 |
| Isolation Antenna To Tx (dB) | 50 |
| Isolation Tx To Tx | 60 |
| Isolation Tx To Tx (dB) | 60 |
| Number Of Channels | 4 |
| Output Connectors | N-Female |
| Output Vswr | 2:01 |
Mechanical | |
| Depth (in) | 21.5 |
| Finish | Black |
| Length Height (in) | 17.5 |
| Mounting Configurations | 19 inch rack |
| Shipping Dimensions (in) | 17x22x22 |
| Width (in) | 19 |
Environmental | |
| Temperature Range (°C) | -30 to 60 |
Please refer to the following attachments for additional details on the product.
No specifications available.
