Free shipping included.
Manufacturer
Sinclair Technologies
MPN
SV228-SF2SNM
Available
1
Condition
New

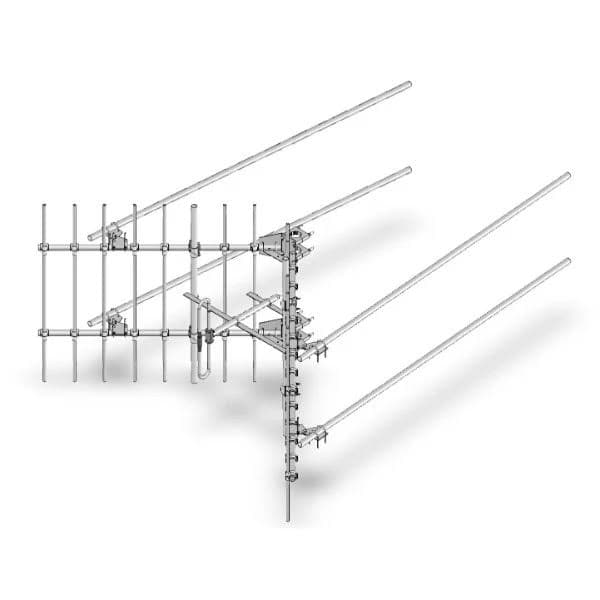

148-174 Mhz, 10 Dbd, Corner Reflector
148-174 MHz corner reflector. 10dB gain, 250 watt. Includes harness w/ N male termination and mounting hardware.
| Electrical | |
|---|---|
| Average Input Power Max (W) | 250 |
| Bandwidth (MHz) | 26 |
| Connector | N-Male |
| Frequency Range (MHz) | 148 to 174 |
| Front To Back Ratio Typ | 30 |
| Gain Nominal (dBd) | 10 |
| Horizontal Beamwidth Typ | 50 |
| Lightning Protection | DC ground |
| Pattern | Directional |
| Polarization | vertical or horizontal |
| Mechanical | |
|---|---|
| Actual Shipping Weight (lbs) | 145 |
| Depth (in) | 57 |
| Length Height (in) | 72 |
| Mounting Hardware Included | Clamp004 |
| Shipping Dimensions (in) | 120x6x15 |
| Width (in) | 117 |
| Environmental | |
|---|---|
| Lateral Thrust 100 Mph No Ice | 479 |
| Rated Wind Velocity No Ice | 100 |
| Temperature Range (°C) | -40 to 60 |
No specifications available.
Warranty
30-days warranty
