Free shipping included.
Manufacturer
Sinclair Technologies
MPN
SD212-HF3P2SNM(D00I)
Available
53
Condition
New

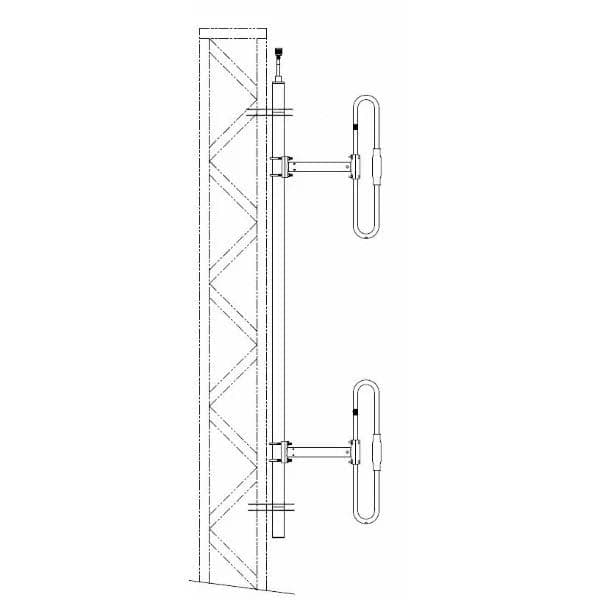

220 Mhz Inverted 1/2 Wave Anten
The Sinclair Technologies SD212-HF3P2SNM(D00I) is a high-quality 220 Mhz inverted 1/2 wave antenna designed for optimal performance in the 220 Mhz frequency range. The SD212-HF3P2SNM(D00I) features a unique inverted 1/2 wave design, which allows for improved signal transmission and reception. This antenna is constructed with high-quality materials to ensure long-lasting durability and performance.
| Electrical | |
|---|---|
| average input power max (W) | 250 |
| bandwidth (MHz) | 35 |
| connector | N-Male |
| electrical tilt available | 0,2,4,6,8, or 10 degrees |
| frequency range (MHz) | 190 to 225 |
| gain nominal (dBd) | 5 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |
| pattern | Bi- directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 30.5 |
| base pipe diameter | 2.375 |
| base pipe material | aluminum |
| base pipe mounting length | 65 |
| depth (in) | 3.5 |
| length height (in) | 75.25 |
| mounting configurations | Inverted |
| radiating element material | aluminum |
| shipping dimensions (in) | 80x35x4 |
| width (in) | 32 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 84 |
| lateral thrust 100 mph no ice | 57.5 |
| rated wind velocity no ice | 215 |
| survival wind velocity no ice | 235 |
| temperature range (°C) | -40 to 60 |
| tip deflection 100 mph no ice | 0.12 |
Warranty
30-days warranty
