Manufacturer
Sinclair Technologies
MPN
RTC5800RB-1
Available
1
Condition
New

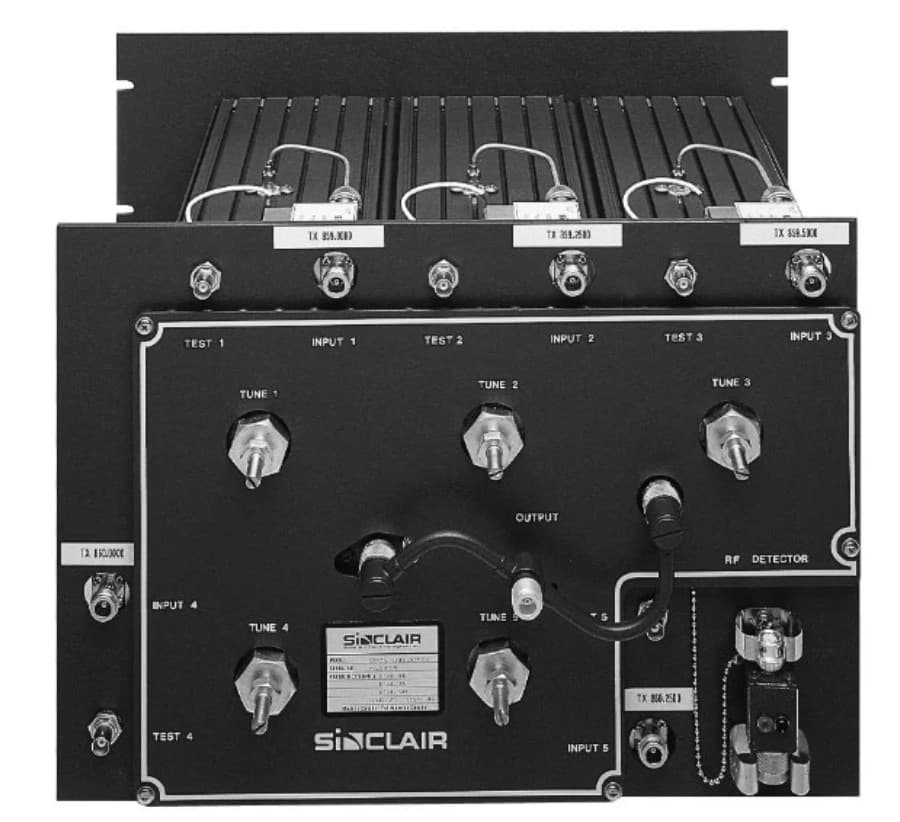

5 Channel Trunking Combiner 806-824mhz
The Sinclair Technologies RTC5800RB-1 is a high-performance 5 channel trunking combiner designed for use in the 806-824mhz frequency range. This combiner is specifically designed for use in trunking systems, making it ideal for public safety, transportation, and utility applications.
It features a low insertion loss and high isolation between channels, ensuring minimal interference and maximum signal strength. This combiner is capable of combining up to 5 channels, allowing for efficient use of limited frequency resources.
It also features a built-in isolator to protect against unwanted signals and a built-in preselector to improve selectivity. The RTC5800RB-1 is easy to install and maintain, with a user-friendly interface and durable construction.
Specifications | |
| frequency range (MHz) | 806 to 824 |
| impedance (Ω) | 50 |
| input connectors | N-Female |
| isolation antenna to tx | 60 |
| isolation antenna to tx (dB) | 60 |
| isolation antenna to tx (dB) | 60 |
| isolation tx to tx | 70 |
| isolation tx to tx (dB) | 70 |
| isolation tx to tx (dB) | 70 |
| minimum channel spacing (MHz) | 0.5 |
| number of channels | 5 |
| output connectors | N-Female |
| output vswr | 2:01 |
| power (per channel) (W) | 125 |
| power per channel | 125 |
Mechanical | |
| actual shipping weight (lbs) | 55 |
| depth (in) | 15 |
| length height (in) | 12.25 |
| mounting configurations | 19 inch rack |
| shipping dimensions (in) | 22x15x19 |
| width (in) | 19 |
Environmental | |
| temperature range (°C) | -30 to 60 |
