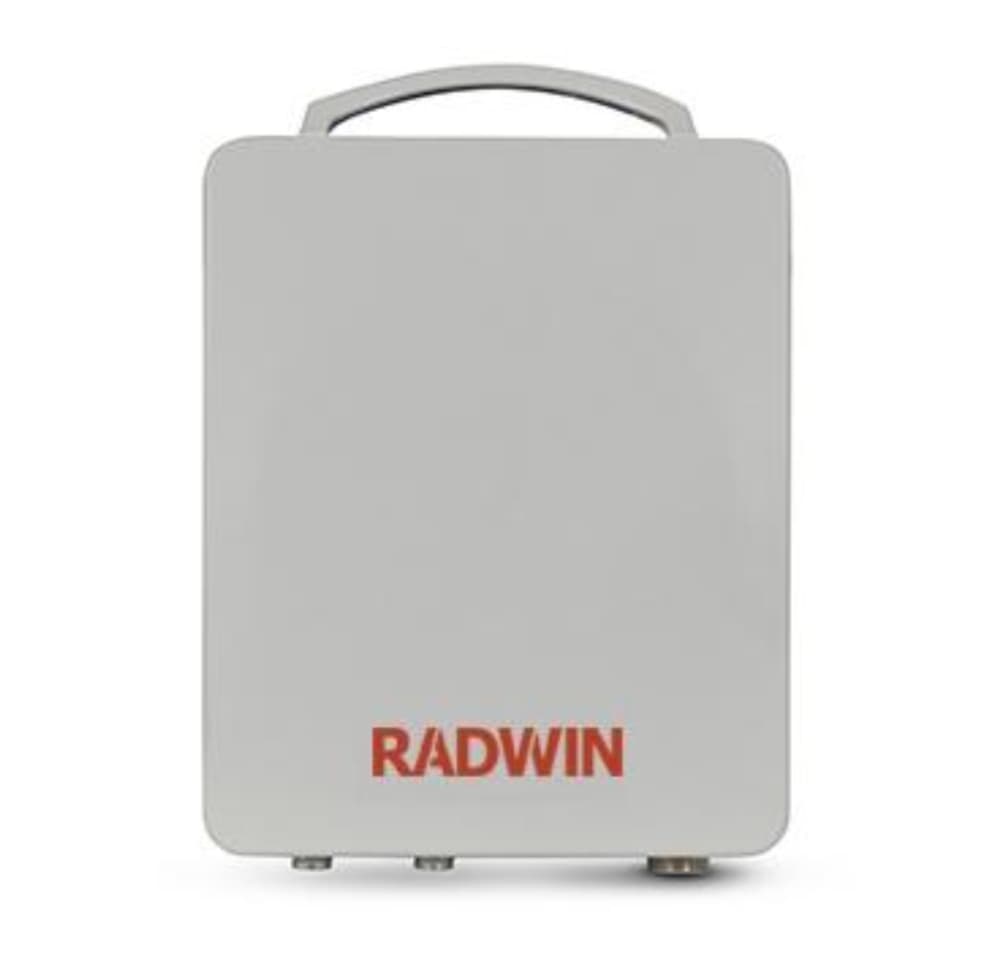

Radwin RW-2050-D200 – 5.8GHz Connectorized ODU – 750 Mbps
Slide 1 of 1
Manufacturer
Radwin
MPN
RW-2050-D200
Available
4
Condition
New
Radwin RW-2050-D200 – 5.8GHz Connectorized ODU – 750 Mbps
The Radwin RW-2050-D200 is a high-performance outdoor unit (ODU) designed for wireless communication in the 5.8GHz frequency band. It is part of the Radwin RW-2000 series and offers a maximum throughput of 750 Mbps, making it ideal for high-speed data transmission and bandwidth-intensive applications.
It is also equipped with advanced security features, including AES encryption, to ensure the confidentiality and integrity of data transmission. With its compact size and lightweight design, this ODU is easy to install and can be mounted on poles, walls, or towers. It is also highly scalable, allowing for easy expansion of the network as needed.
Features:
750 Mbps Ethernet net throughput
Long range – Up to 40 km / 25 miles
Telco-grade, extremely robust in harsh conditions
Supports intra-site and inter-site synchronization to maximize capacity
Configurable asymmetric throughput
Advanced OFDM & MIMO technologies for operation in nLOS/NLOS and dense radio environments
Specifications | |
Configuration | |
| Architecture | Outdoor Unit connectorized for external antenna (2 xN-type) |
| PoE to ODU Interface | Outdoor CAT-5e; Maximum cable length: 100m for 10/100BaseT and 75m for 1000BaseT |
Radio | |
| Max Capacity | 750 Mbps net aggregate throughput |
| Range | Up to 40 km / 25 miles |
| Channel Bandwidth | Configurable: 10, 20, 40, 80 MHz (for the default band) |
| Modulation | 2x2 MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM) |
| Adaptive Modulation, Coding & Channel BW | Supported |
| Automatic Channel Selection | Supported upon power up |
| DFS | Not Supported (for the default band) |
| Diversity | Supported |
| Spectrum Viewer | Supported |
| Max Tx Power | 25 dBm |
| Duplex Technology | TDD |
| Error Correction | FEC k = 1/2, 2/3, 3/4, 5/6 |
| Encryption | AES 128; FIPS 197 |
| Support Indoor units | RADWIN PoE devices (RW-9921-101X) |
| Uplink / Downlink Allocation | Configurable: Symmetric or Asymmetric |
| QoS | Packet classification to 4 priority queues according to 802.1P or Diffserv |
| VLAN Support | 802.1Q, QinQ, 4094 VLANs |
| TDD Intra Site Synchronization | Supported |
| TDD Inter Site Synchronization | Supported through common GPS receiver per site |
Mechanical | |
| ODU Dimensions | 28(w) x 19.5(h) x 8(d) cm 11.02" W x 7.67" H x 3.14" L inch |
| ODU Weight | 2.4 kg / 5.29 lbs |
Power | |
| Power Feeding | Power provided over ODU-IDU cable |
| Power Consumption | <20W |
Environmental | |
| Operating Temperatures | -35°C to 60°C / -31°F to 140°F |
| Humidity | 100% condensing, IP67 (totally protected against dust and against immersion up to 1m) |
EMC | |
| FCC | 47 CFR Class B, Part15, Subpart B |
| ETSI | EN 300 386, EN 301 489-1, EN 301 489-4 |
| CAN/CSA-CEI/IEC | CISPR 22-04 Class B |
Please refer to the following attachments for additional details on the product.
