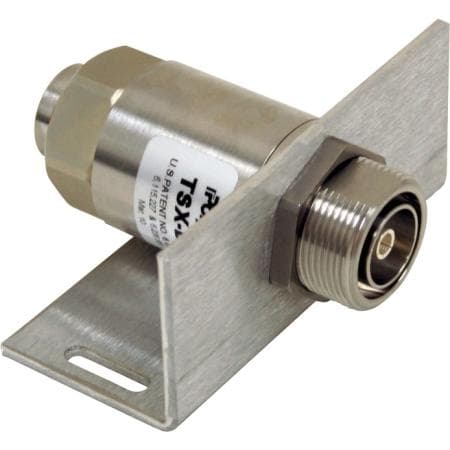

Polyphaser TSX-DFM-BF - 698-2700 MHz Low PIM Coaxial Protector

POLYPHASER 698-2700 MHz Low PIM Coaxial Protector. 750 Watt RF power. DIN female on antenna side, DIN male on equipment side.

This radio frequency surge protector / lightning surge arrestor helps protect your equipment from electromagnetic pulse (EMP) or power surges that are commonly caused by lightning or other strong electrical changes.

Our radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass 698 MHz to 2.7 GHz while suppressing DC surge.

While this radio frequency lightning surge suppressor operates in a range of frequencies from 698MHz to 2.7GHz, it is supporting a power handling maximum of 500 Watts.RF surge protector TSX-DFM-BF from PolyPhaser incorporates surge filter technology to provide protection for equipment at up to the max. power of 500W.

TSX-DFM-BF is constructed with a female gender for the input and male for the output. This F/M 7/16 DIN to 7/16 DIN surge protecting component for RF has a let-through energy of .005uJ. PolyPhaser protection device TSX-DFM-BF is designed with low passive intermodulation (PIM). This bulkhead 7/16 DIN PIM RF surge protector is rated for -155 dBc.
