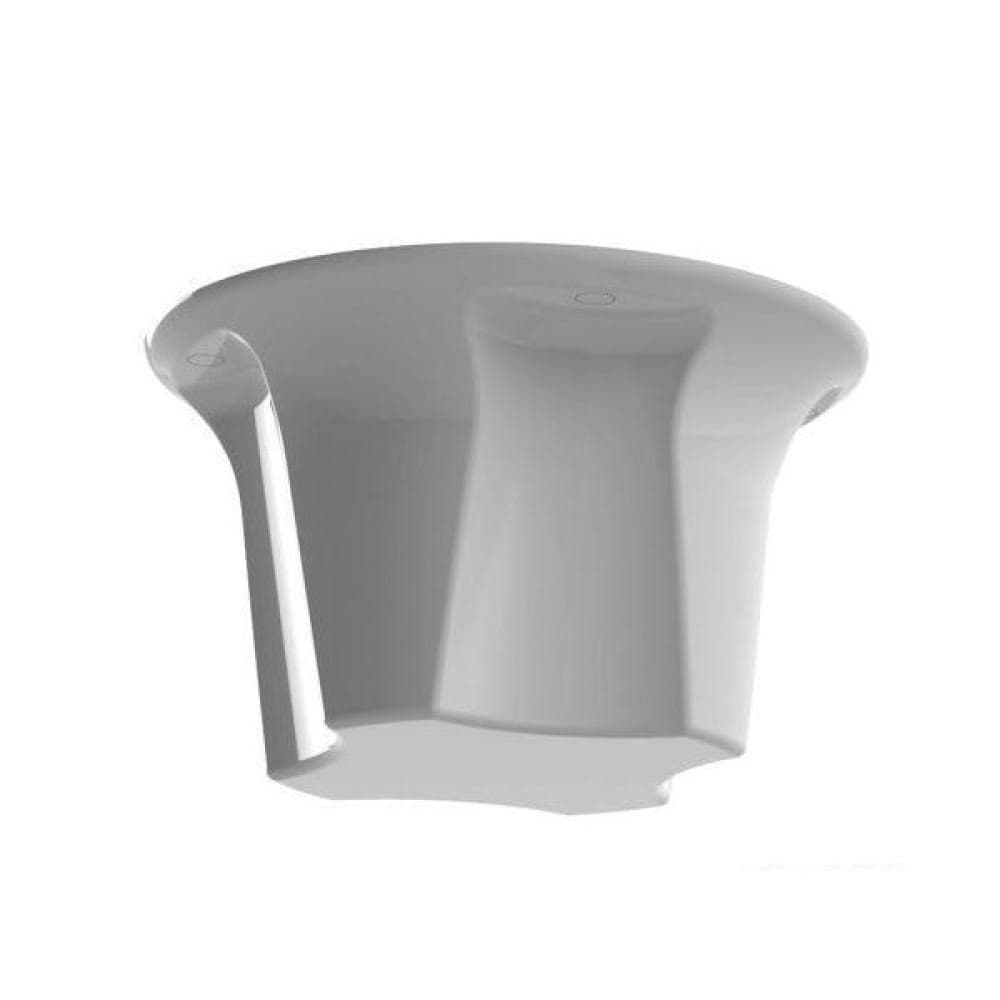

Panorama Antennas CMWB2-038-6-NJ - Indoor Omni 380-6000 Nf

Indoor Omni 380-6000 Nf

The CMWB2-038-6-NJ is a ceiling mount antenna covering UHF and 2G, 3G, and 4G frequencies. The CMWB2-038-6-NJ ceiling antenna is a compact and subtle way to provide optimum indoor or DAS coverage for the networks of today and tomorrow. Concealed beneath the antenna housing is a highly efficient wideband element with low passive intermodulation (PIM). It supports UHF, cellular, WLAN, and WIMAX networks operating within380 to 6000 MHz. Suitable for indoor or outdoor use, the antenna requires one mounting hole for installation but offers additional screw fastening holes located beneath blanking caps. The antenna is ground plane independent and can be fitted onto both thick and thin ceiling tiles.

Key Features

Omnidirectional UHF, cellular, and WiFi ceiling-mount antenna

698-960 MHz and 1710-6000MHz 2G/3G/4G LTE frequencies

380-520 MHz UHF frequency band

2.4 and 5.0 GHz WiFi Frequencies

7 dBi peak gain

50 watts max input power

-150 PIM 3rd order 2x 20W (dBc)

-30 to 70°C operating temperature

Ceiling mount

UL94 V0 flame retardancy
