Manufacturer
Panduit Corporation
MPN
PV18-8R-CY
Available
10
Condition
New

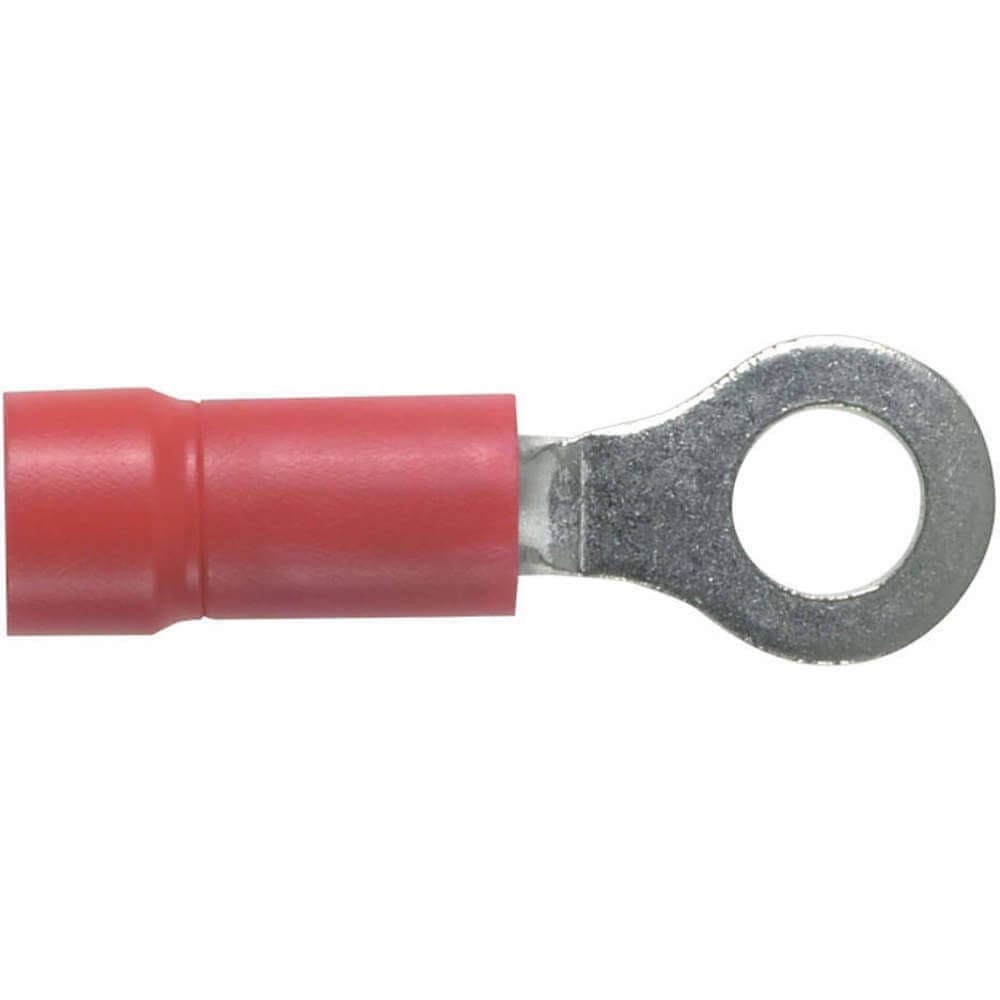

#8 Insulated Ring Term, 22-18awg 100 Ct Bag
The Panduit Corporation PV18-8R-CY is a pack of 100 #8 insulated ring terminals designed for use with 22-18awg wires. These terminals are made by Panduit Corporation, a trusted brand in the electrical industry. Each terminal is made with high-quality materials to ensure a secure and reliable connection. The #8 size is ideal for a variety of applications, and the insulation provides added protection against electrical hazards. These terminals are conveniently packaged in a 100 count bag, making them easy to store and use.
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Seam Type | Brazed |
| Overall Length (In.) | 0.91 |
| Overall Length (mm) | 23.1 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
