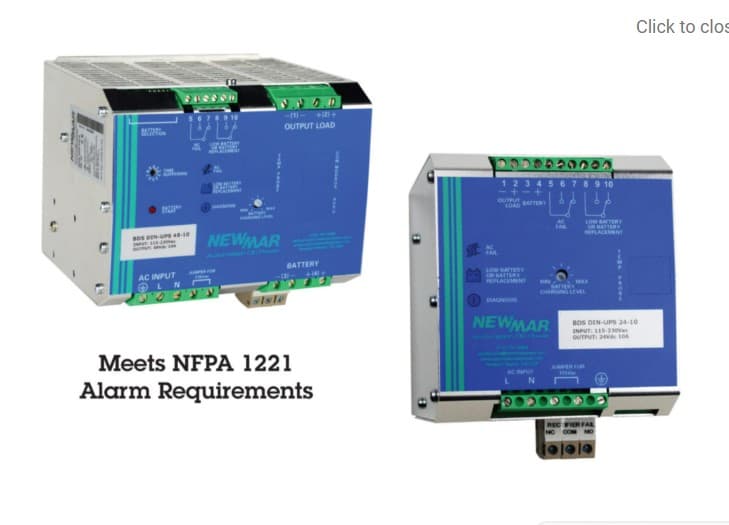

Newmar BDS-DIN-UPS-24-10 - NFPA 24VDC 10A DIN Power System

Newmar BDS-DIN-UPS-24-10 - NFPA 24VDC 10A DIN Power System This power system is specifically designed to meet the requirements of the National Fire Protection Association (NFPA) for 24VDC power supply in fire alarm and emergency communication systems. It is a reliable and efficient power solution for critical applications that require continuous power supply.   The BDS-DIN-UPS-24-10 features a compact DIN rail mount design, making it easy to install in any standard DIN rail enclosure. It has a 24VDC output with a maximum current capacity of 10A, providing enough power to support multiple devices. The system also includes a built-in battery backup, ensuring uninterrupted power supply in case of a power outage.   This power system is equipped with advanced protection features such as overvoltage, overcurrent, and short circuit protection, ensuring the safety of connected devices. It also has a wide operating temperature range of -20C to 70C, making it suitable for use in various environments.    SpecificationsBattery Type: Lead Acid, Gel-Cell, Ni Cad (model BDS-DIN-UPS-48-10 only)Battery Charge Current Limit20 - 100% of charge amperage ratingPower Restore Buttonconnects battery without AC presentPower24 VDCWeight4.5 x 3.9 x 5.3
