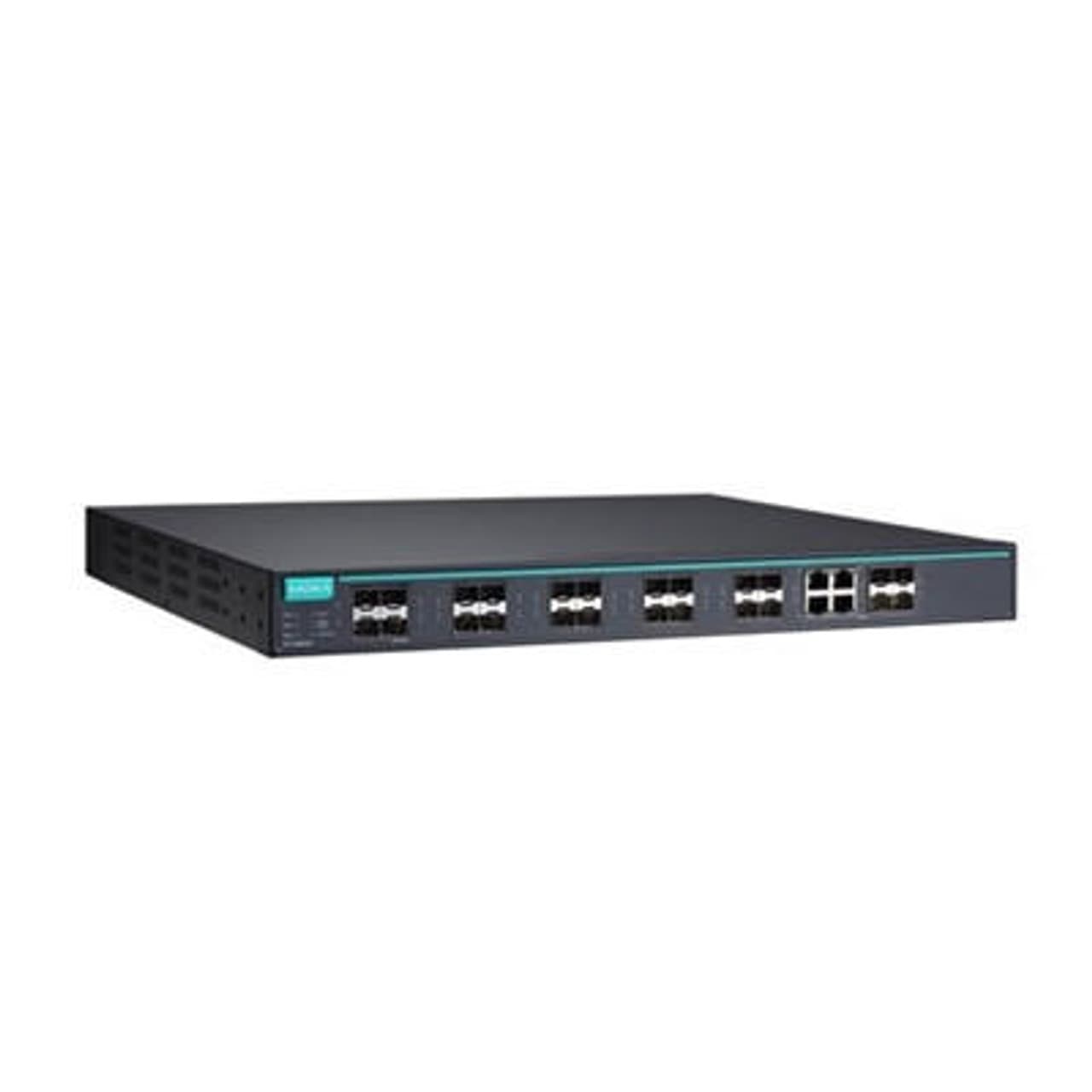

Moxa IKS-G6824A-20GSFP-4GTXSFP-HV-HV-T - Gigabit Managed Ethernet Switch

The Moxa IKS-G6824A-20GSFP-4GTXSFP-HV-HV-T is a high-performance Gigabit managed Ethernet switch designed for industrial applications. It features 24 Gigabit Ethernet ports with 4 combo Gigabit SFP slots and 4 Gigabit SFP slots, providing flexible and reliable connectivity options for your network.

It also has a rugged IP30-rated metal housing and redundant power inputs for enhanced reliability. It also supports Moxa's Turbo Ring and Turbo Chain technology for fast network redundancy and recovery. With its user-friendly web interface and CLI, this switch is easy to configure and manage. It also supports SNMP for centralized network management.

Gigabit Managed Ethernet Switch

Layer 3 routing interconnects multiple LAN segments

24 Gigabit Ethernet ports

Up to 24 optical fiber connections (SFP slots)

Fanless, -40 to 75°C operating temperature range (T models)

Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy

Isolated redundant power inputs with universal 110/220 VAC power supply range

Supports MXstudio for easy, visualized industrial network management

V-ON ensures millisecond-level multicast data and video network recovery

nput/Output Interface

Alarm Contact Channels

• Relay output with current carrying capacity of 2 A @ 30 VDC

Digital Inputs

• +13 to +30 V for state 1
•
  -30 to +1 V for state 0
•
  Max. input current: 8 mA
•

Ethernet Interface

100/1000BaseSFP Ports

• 20

Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

• 4

Standards

• IEEE 802.1D-2004 for Spanning Tree Protocol
•
  IEEE 802.1p for Class of Service
•
  IEEE 802.1Q for VLAN Tagging
•
  IEEE 802.1s for Multiple Spanning Tree Protocol
•
  IEEE 802.1w for Rapid Spanning Tree Protocol
•
  IEEE 802.1X for authentication
•
  IEEE 802.3 for 10BaseT
•
  IEEE 802.3ab for 1000BaseT(X)
•
  IEEE 802.3ad for Port Trunk with LACP
•
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
•
  IEEE 802.3x for flow control
•
  IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
•

Ethernet Software Features

Management

• ARP
•
  Back Pressure Flow Control
•
  BOOTP
•
  DDM
•
  DHCP Option 66/67/82
•
  DHCP Server/Client
•
  Flow control
•
  IPv4
•
  LLDP
•
  Port Mirror
•
  RARP
•
  RMON
•
  SCP
•
  SMTP
•
  SNMP Inform
•
  SNMPv1/v2c/v3
•
  Syslog
•
  Telnet
•
  TFTP

Filter

• 802.1Q
•
  BPDU Filter
•
  BPDU Guard
•
  GMRP
•
  GVRP
•
  IGMP v1/v2/v3
•
  QinQ VLAN

Multicast Routing

• DVMRP
•
  PIM-DM
•
  PIM-SM
•
  PIM-SSM

Redundancy Protocols

• Link Aggregation
•
  MRP
•
  MSTP
•
  RSTP
•
  Turbo Chain
•
  Turbo Ring v1/v2
•
  V-ON

Routing Redundancy

• VRRP

Security

• Access control list
•
  Broadcast storm protection
•
  HTTPS/SSL
•
  MAB authentication
•
  Sticky MAC
•
  NTP authentication
•
  Port Lock
•
  RADIUS
•
  SSH
•
  TACACS+

Time Management

• NTP Server/Client
•
  SNTP

Unicast Routing

• OSPF
•
  RIPV1/V2
•
  Static Route
•

Industrial Protocols

• EtherNet/IP
•
  Modbus TCP
•
  PROFINET

MIB

• Bridge MIB
•
  Ethernet-like MIB
•
  MIB-II
•
  P-BRIDGE MIB
•
  Q-BRIDGE MIB
•
  RMON MIB Groups 1, 2, 3, 9
•
  RSTP MIB

Switch Properties

DRAM

• 128 MB

Flash

• 16 MB

IGMP Groups

• 4096

Jumbo Frame Size

• 9.6 KB

MAC Table Size

• 16 K

Max. No. of VLANs

• 256

Packet Buffer Size

• 12 Mbits

VLAN ID Range

• VID 1 to 4094

Priority Queues

• 8

USB Interface

Storage Port

• USB Type A
•

Serial Interface

Console Port

• USB-serial console (Type B connector)
•

Power Parameters

Input Voltage

• 110 to 240 VAC
•
  Redundant dual inputs

Operating Voltage

• 85 to 264 VAC

Input Current

• Max. 0.66 A @ 110 VAC
•
  Max. 0.39 A @ 220 VAC

Power Consumption

• Max. 37.83 W @ 110 VAC
•
  Max. 40.15 W @ 220 VAC

Overload Current Protection

• Supported

Reverse Polarity Protection

• Supported
•

Physical Characteristics

IP Rating

• IP30

Dimensions

• 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)

Weight

• 5100 g (11.25 lb)

Installation

• Rack mounting
•

Environmental Limits

Operating Temperature

• -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

• -40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

• 5 to 95% (non-condensing)
