Manufacturer
Mikrotik
MPN
XQ+31LC02D
Available
46
Condition
New

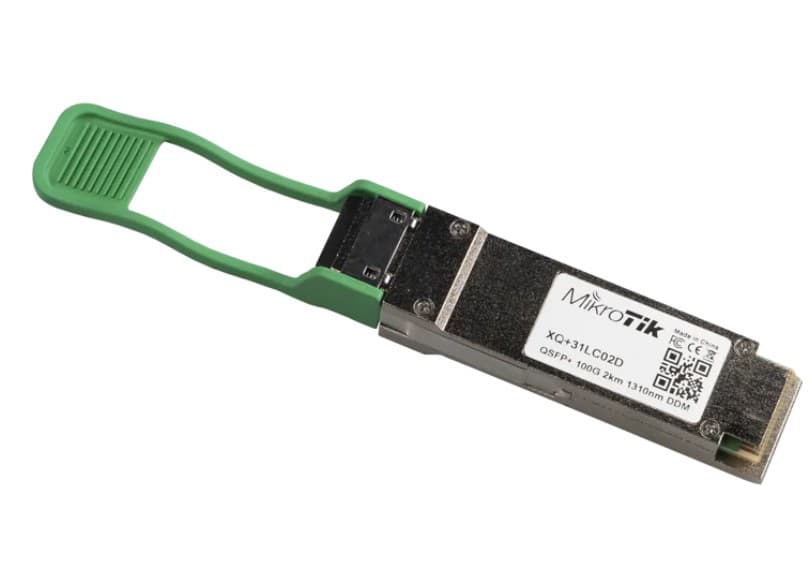

MikroTik XQ+31LC02D – QSFP28 Module – 100G CWDM4 – Dual LC UPC
The MikroTik XQ+31LC02D is a high-performance QSFP28 module designed for use in high-speed data transmission applications. This module features dual LC UPC connectors, allowing for easy and secure connections to other network devices. It is also hot-swappable, allowing for easy replacement or addition of modules without disrupting network operations.
Specifications | |
| Data Rate | 103.125 Gbps (4x 25.78Gbps) |
| Media Type | SMF |
| Transmitter Type | CWDM DFB |
| Transmitter Power | -6.5 ~ 2.5 dBm |
| Extinction Ratio | > 3.5 dB |
| Connector | LC Duplex |
| DDM/DOM | Yes |
| Environment | Operating Temperature: 0 to 70 °C (32 to 158 °F) Storage Temperature: -40 to 85 °C (-40 to 185 °F) Operating Humidity: 5% to 85%, Non-condensing Storage Humidity: 5% to 95%, Non-condensing |
| Form Factor | QSFP28 |
| Wavelength | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| Max Distance | 2 km (require FEC on host side) |
| Receiver Type | PIN |
| Receiver Sensitivity | < -10.0 dBm |
| Receiver Overload | > 2.5 dBm |
| Max Power Consumption | 3.5 W |
| Modulation | NRZ |
| Dimensions (L x W x H) | 118.3 x 18.4 x 8.5 mm (4.66 x 0.72 x 0.33 in) |
Please refer to the following attachments for additional details on the product.
