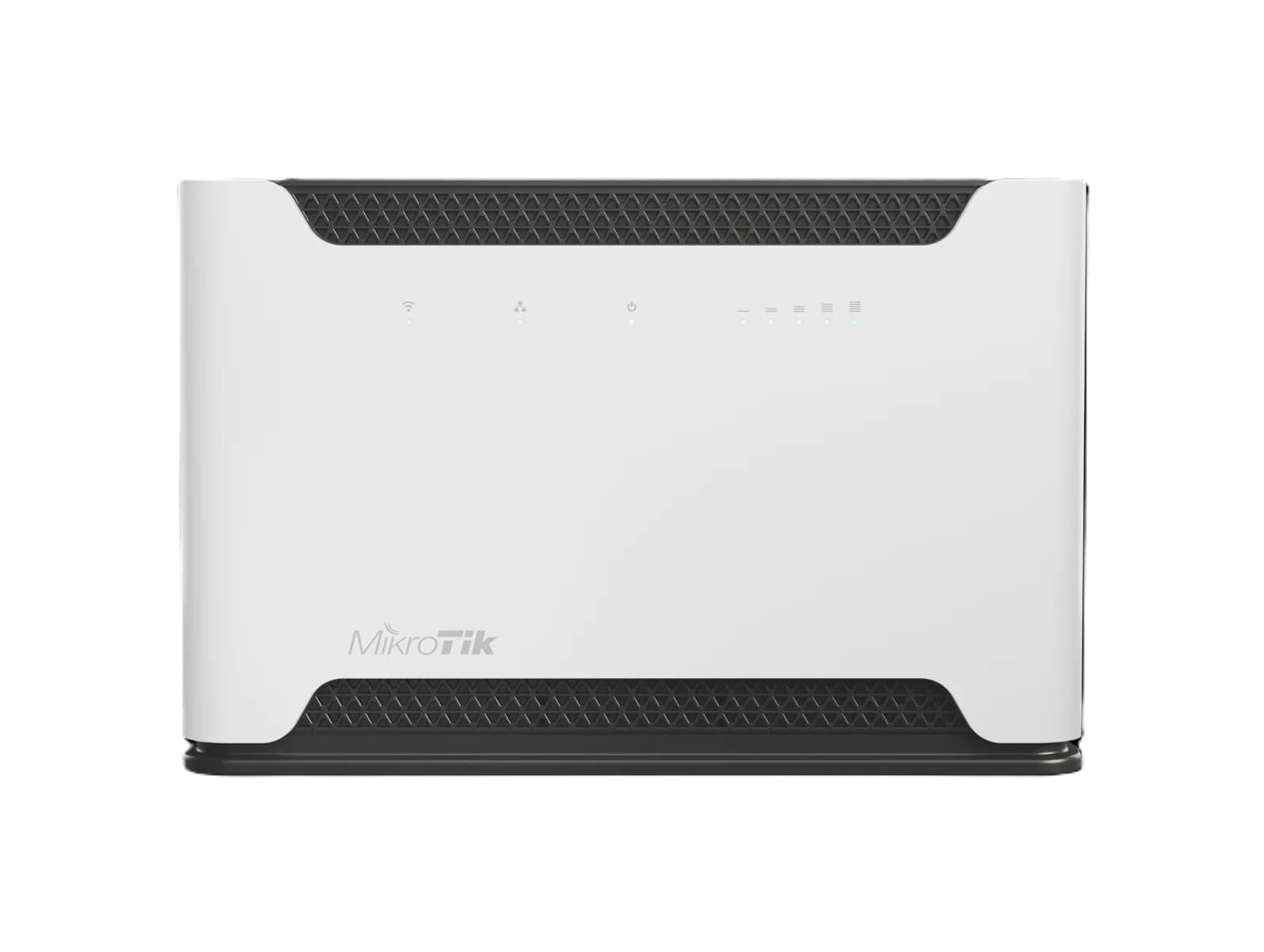

MikroTik RBD53G-5HACD2HND-TC&EG12-EA – Desktop LTE12 Access Point – Dual-band
Slide 1 of 2
Manufacturer
Mikrotik
MPN
RBD53G-5HacD2HnD-TC&EG12-EA
Available
5
Condition
New
MikroTik RBD53G-5HACD2HND-TC&EG12-EA – Desktop LTE12 Access Point – Dual-band
The MikroTik RBD53G-5HACD2HND-TC&EG12-EA is a powerful and versatile desktop access point that offers high-speed wireless connectivity and advanced features for both home and business use. This dual-band access point is equipped with the latest 802.11ac technology, providing lightning-fast speeds of up to 867Mbps on the 5GHz band and 300Mbps on the 2.4GHz band.
It also comes with a built-in LTE12 modem, allowing you to connect to the internet even in areas without traditional wired internet access. It also features two Gigabit Ethernet ports for high-speed wired connections, as well as a USB port for additional storage or 4G backup.
Specifications | ||
|---|---|---|
| Architecture | ARM 32bit | |
| CPU | IPQ-4019 | |
| CPU core count | 4 | |
| CPU nominal frequency | 716 MHz | |
| Switch chip model | IPQ-4019 | |
| Dimensions | 240 x 156 x 44 mm | |
| RouterOS license | 4 | |
| Operating System | RouterOS v7 | |
| Size of RAM | 256 MB | |
| Storage size | 16 MB | |
| Storage type | FLASH | |
| MTBF | Approximately 200'000 hours at 25C | |
| Tested ambient temperature | -40°C to 70°C | |
| IPsec hardware acceleration | Yes | |
Powering | ||
| Number of DC inputs | 1 (DC jack) | |
| DC jack input Voltage | 12-28 V | |
| Max power consumption | 23 W | |
| Max power consumption without attachments | 17 W | |
| Cooling type | Passive | |
Mobile | ||
| 3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) | |
| 3G bands | 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) / 3 (1800MHz) | |
| LTE Category | 12 (600Mbps Downlink, 150Mbps Uplink) | |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) | |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) | |
Wireless specifications | ||
| Wireless 2.4 GHz Max data rate | 300 Mbit/s | |
| Wireless 2.4 GHz number of chains | 2 | |
| Wireless 2.4 GHz standards | 802.11b/g/n | |
| Antenna gain dBi for 2.4 GHz | 3 | |
| Wireless 2.4 GHz chip model | IPQ-4019 | |
| Wireless 2.4 GHz generation | Wi-Fi 4 | |
| Wireless 5 GHz Max data rate | 867 Mbit/s | |
| Wireless 5 GHz number of chains | 2 | |
| Wireless 5 GHz standards | 802.11a/n/ac | |
| Antenna gain dBi for 5 GHz | 4 | |
| Wireless 5 GHz chip model | IPQ-4019 | |
| Wireless 5 GHz generation | Wi-Fi 5 | |
Ethernet | ||
| 10/100/1000 Ethernet ports | 5 | |
Peripherals | ||
| Number of SIM slots | 1 Modem (Micro SIM) | |
| Number of USB ports | 1 | |
| USB Power Reset | Yes | |
| USB slot type | USB type A | |
| Max USB current (A) | 1 | |
Other | ||
| Mode button | Yes | |
Wireless specifications | ||
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
| 1MBit/s | 25 | -100 |
| 11MBit/s | 25 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 23 | -78 |
| MCS0 | 26 | -96 |
| MCS7 | 22 | -73 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 22 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 21 | -75 |
| MCS9 | 19 | -70 |
Please refer to the following attachments for additional details on the product.
