Manufacturer
MikroTik
MPN
CRS112-8P-4S-IN
Available
0
Condition
New
MikroTik CRS112-8P-4S-IN – PoE Switch – 8 Gigabit Ethernet 4 SFP
The MikroTik CRS112-8P-4S-IN is a high-performance PoE switch designed for small to medium-sized networks. It features 8 Gigabit Ethernet ports and 4 SFP ports, providing a total of 12 ports for connecting devices. This switch is ideal for powering and connecting devices such as IP cameras, wireless access points, and VoIP phones.
It supports PoE (Power over Ethernet) on all 8 Ethernet ports, allowing for easy installation and powering of compatible devices without the need for additional power outlets. The CRS112-8P-4S-IN is powered by a powerful 400MHz CPU and 128MB RAM, ensuring smooth and efficient operation. It also supports Layer 2 switching and VLAN functionality, making it suitable for a variety of network setups.
CRS112-8P-4S-IN is eight Gigabit RJ45 ports PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE
Four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps

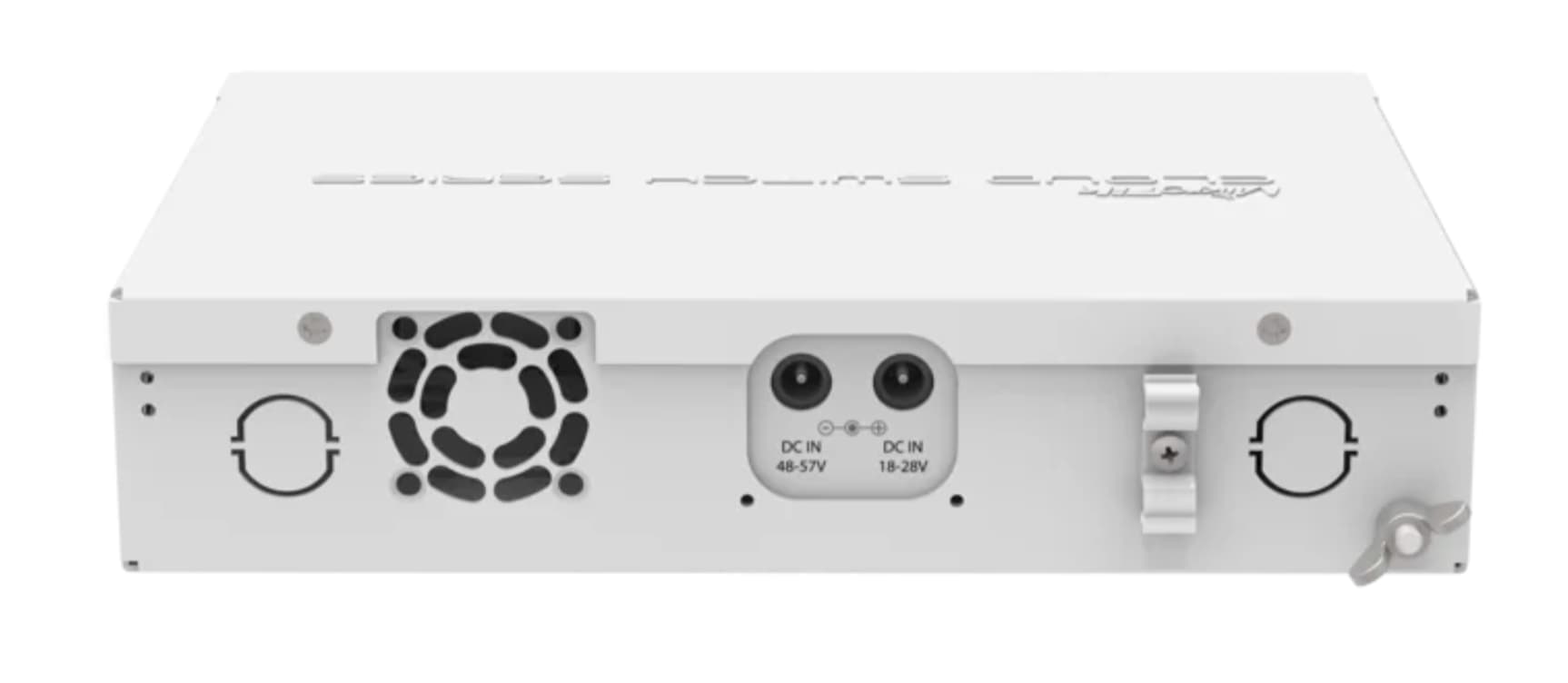

There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately)
CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices)
Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V
Specifications Details | |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA8511 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| Dimensions | 200 x 142 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
Powering Details | |
| Number of DC inputs | 2 (DC jack) |
| DC jack input Voltage | 18-28 V / 48-57 V |
| Max power consumption | 160 W |
| Max power consumption without attachments | 10 W |
| FAN count | Passive |
PoE-out Details | |
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1 A |
| Max out per port output (input 30-57 V) | 450 mA |
| Max total out (A) | 2.8A (18V-28V) & 1.4A (48V-57V) A |
Ethernet Details | |
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 8 |
Fiber Details | |
| SFP ports | 4 |
Peripherals Details | |
| Serial console port | RJ45 |
Other Details | |
| PCB temperature monitor | Yes |
