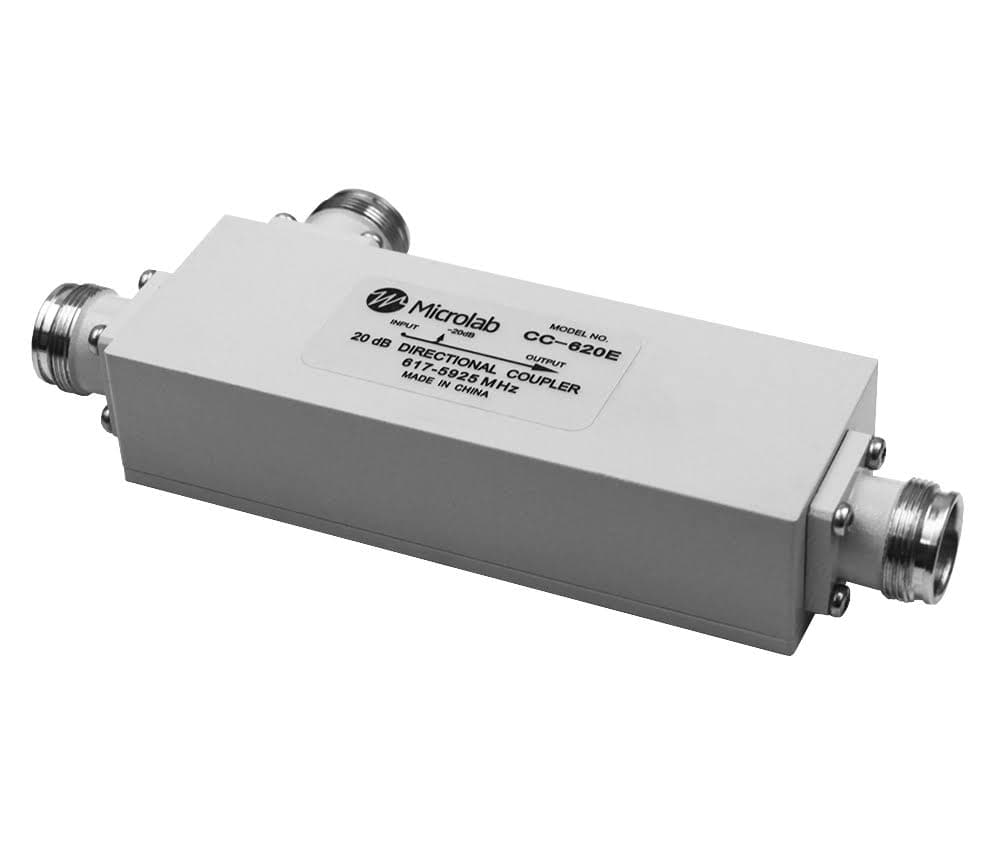

Microlab CC-620E - 20dB Directional Coupler 617- 5925 MHz

20dB Directional Coupler 617- 5925 MHz

The CC-6xxE series of Directional Couplers are designed to cover from 617 to 5925 MHz. Units couple off a defined fraction of signal with minimal reflections or loss. Availability in a wide range of coupling values makes this series useful in optimizing the power distribution required in 5G passive distributed antenna systems (DAS). The extremely wide frequency range allows use with multiband antennas, leaky cable systems and wireless base stations. With minimal solder joints and a low loss dielectric, the dissipative loss has been minimized and reliability enhanced.

• Frequency: 617 to 5925 MHz
  Directivity: 20 dB min for 617-2700MHz
                        18 dB min for 2700-4900MHz
                        17 dB min for 4900-5925MHz
  VSWR: 1.20:1 max for 617-3800MHz
                1.30:1 max for 3800-5925MHz
  PIM: -161 dBc (-118 dBm) min.
  Power Rating: 300 W avg., 1 kW pk*
  Dissipative Loss: 0.3 dB max
  Impedance: 50Ω nominal
  Group Delay: 1.2 ns typ.
  Housing Finish: Painted
  Connectors: 4.3-10 (f), 4-hole Flange Triplate
  Weight: 0.9 lbs (0.41 kg)
  Dimensions:
  5-8 dB: 5.53 x 1.64 x 1.10 inches
  [140.5 x 41.6 x 28 mm]
  10-20 dB: 5.61 x 1.72 x 1.10 inches
•
