Manufacturer
Microlab
MPN
BK-26N
Available
2
Condition
New

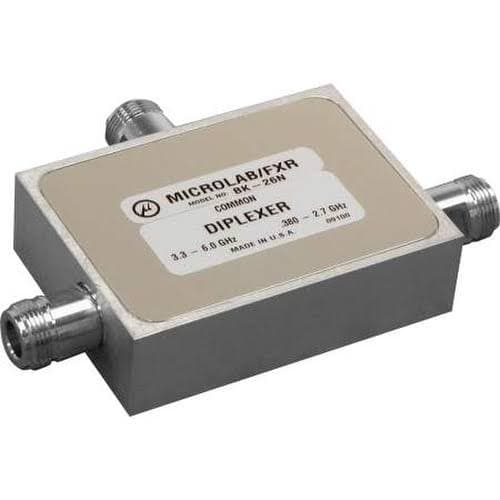

80-2700/3300-6000 Mhz Diplexer, N
BK-26N 3 GHz Diplexer allows efficient combining of WiMAX and 5 GHz W-LAN designed to 802.11(a) and similar systems, with a coaxial distributed in-building cellular network or DAS. The unit has an extremely broad frequency range with minimal loss for maximum flexibility. This can provide the benefit of the same controlled coverage of the higher frequency services with the DAS.
| Frequency: | ||
| Passband J1 to J3: | 3,300 to above 5,850 MHz | |
| Passband J2 to J3: | below 80 to 2,690 MHz | |
| Power: | 50W | |
| Return Loss: | 18 dB min. | |
| Isolation: | >50dB in band except near cross over | |
| >47dB 2680-2690 & 3300-3330 MHz | ||
| PIM: | -150 dBc (test with 2 x +43 dBm tones) | |
| Connectors: | N-Type | |
| Ingress Protection: | IP64 | |
| Weight: | 0.83 lbs (370 g) | |
Please refer to the following attachments for additional details on the product.
Warranty
30-days warranty
