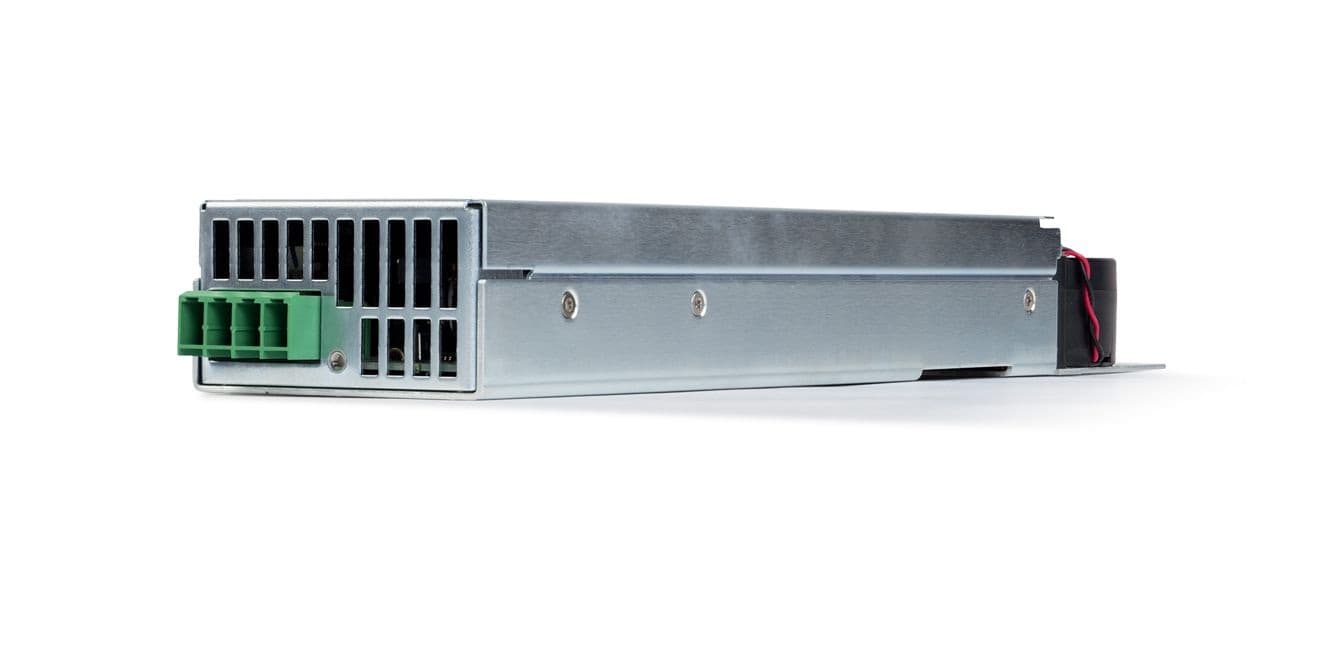

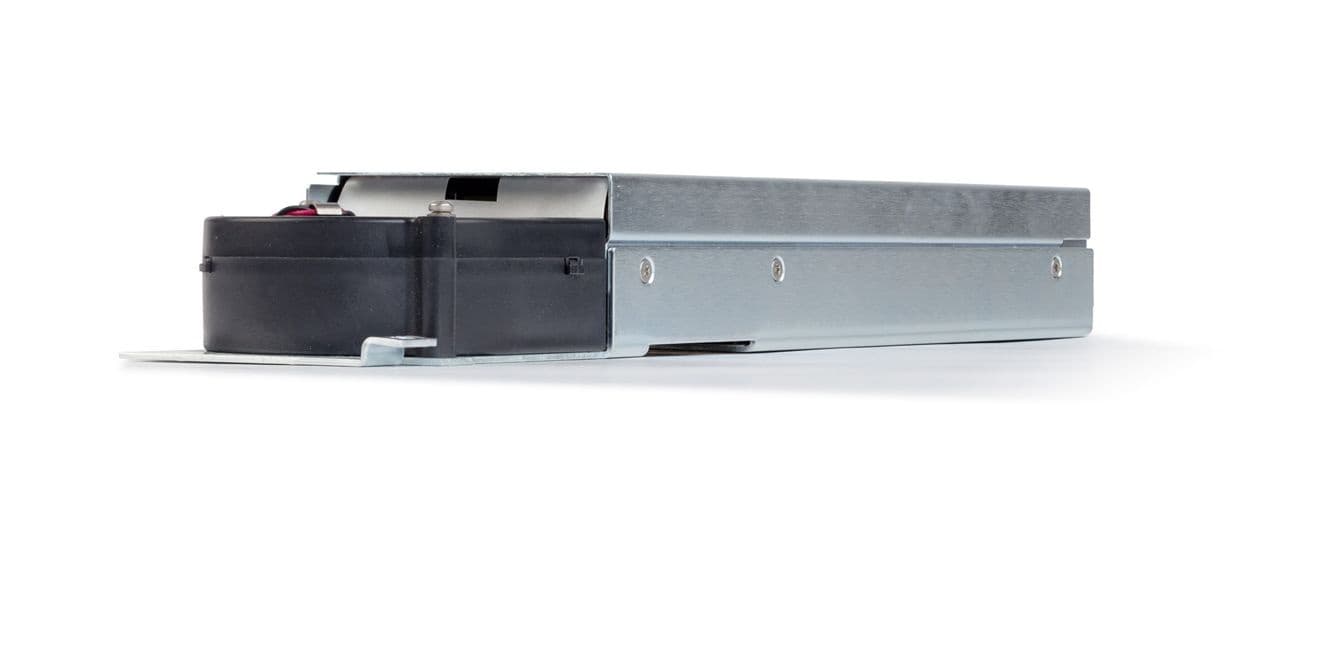

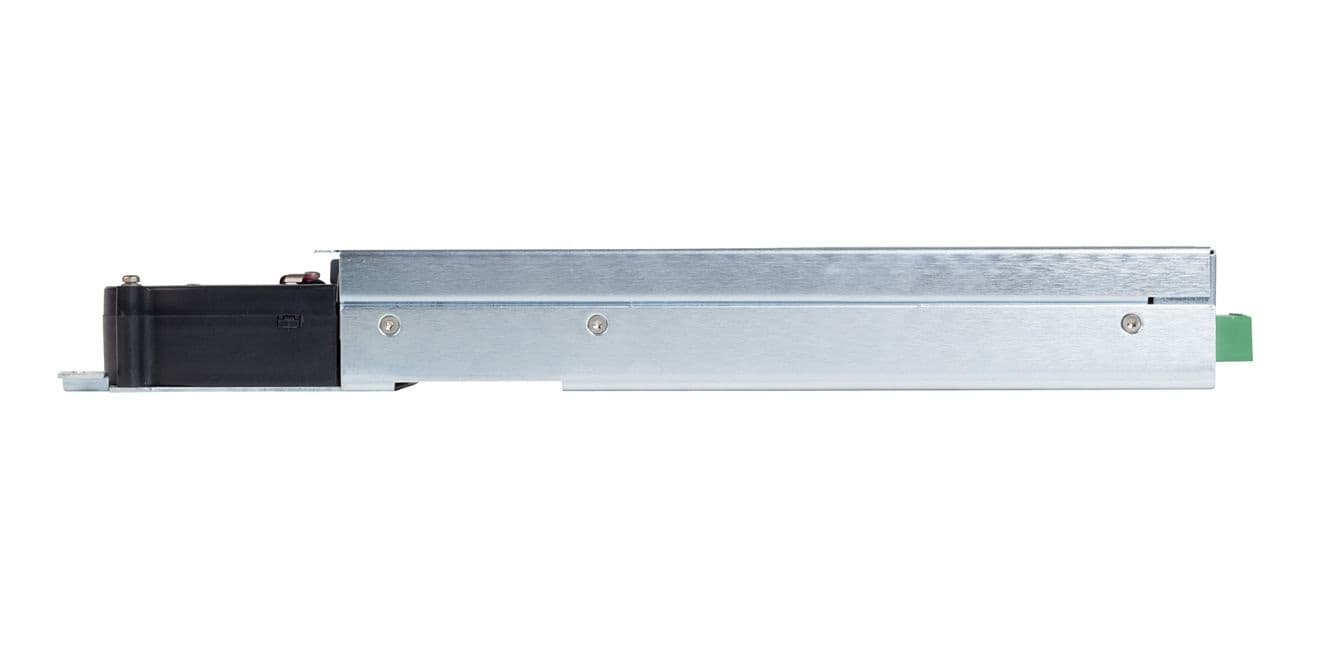

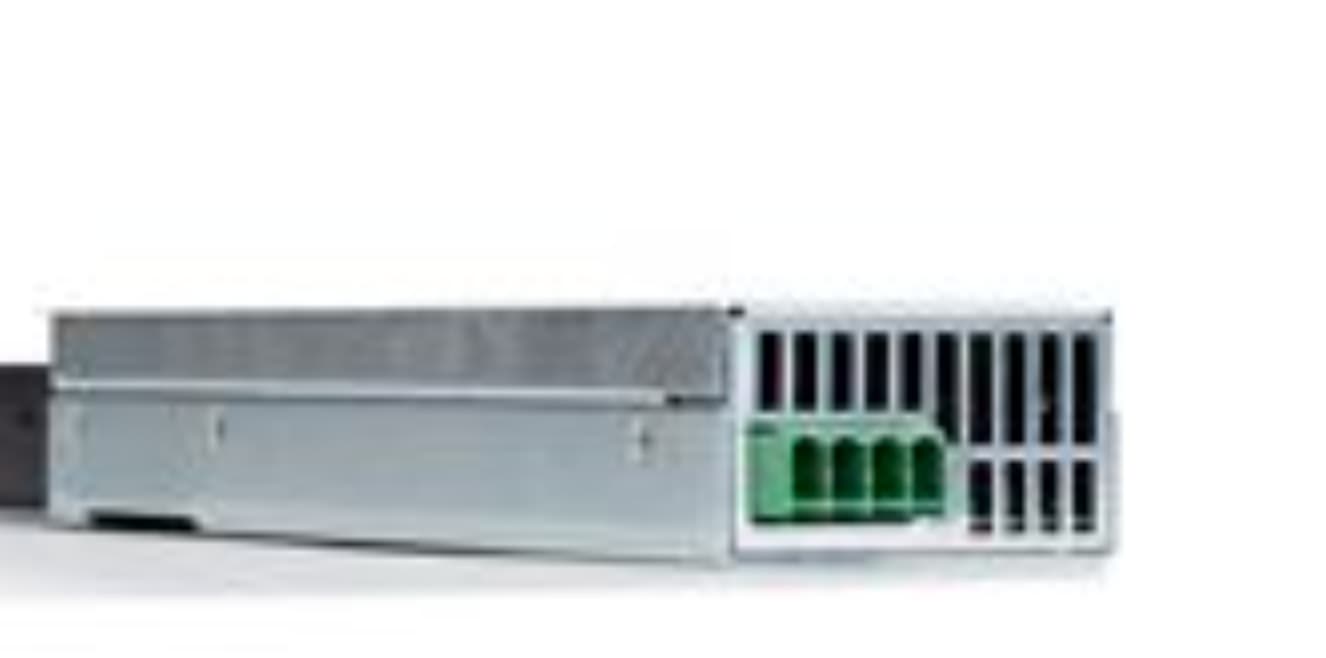

Keysight Technologies N6741B-N6741B - Dc Power Module 5v,20a,100w
Slide 1 of 4
Manufacturer
Keysight Technologies
MPN
N6741B-N6741B
Available
3
Condition
New
Keysight Technologies Canada Inc. N6741B-N6741B - Dc Power Module 5v,20a,100w
The Keysight Technologies Canada Inc. N6741B-N6741B is a high-quality DC power module designed for precision and reliability. It provides a stable output of 5V, 20A, and 100W, making it suitable for a wide range of applications. This power module is part of the N6700 modular power system, which allows for easy integration and expansion with other modules.
The N6741B-N6741B features advanced digital control and monitoring capabilities, allowing for precise voltage and current adjustments and real-time monitoring of output parameters. It also has built-in protection features to ensure safe operation and prevent damage to connected devices. This DC power module is compact and lightweight, making it ideal for use in both benchtop and rack-mount setups.
Ideal for ATE systems in R&D, design validation and manufacturing
Small sized : up to four outputs in 1U of rack space
Flexible modular system for mix and matching power and performance levels for great optimization
Suitable for critical test requirements
Perfect for basic DC power requirements
Fast command processing time and output speed to improve throughput
Connect via GPIB, LAN or USB
Fully compliant to LXI Class C specification
| Voltage: | 5 V |
| Current (derated 1% per °C above 40°C): | 10 A / 20 A |
| Power: | 50 W / 100 W |
| Voltage: | 0.1% + 19 mV |
| Current: | 0.15% + 20 mA |
| Ripple & Noise | 20 Hz to 20 MHz |
| CV peak-to-peak: | 10 mV / 11 mV |
| CV rms: | 2 mV |
| CC rms: | 8 mA |
| Current: | 2 mA |
