Manufacturer
Keysight Technologies Canada Inc.
MPN
N6733B-N6733B
Available
4
Condition
New

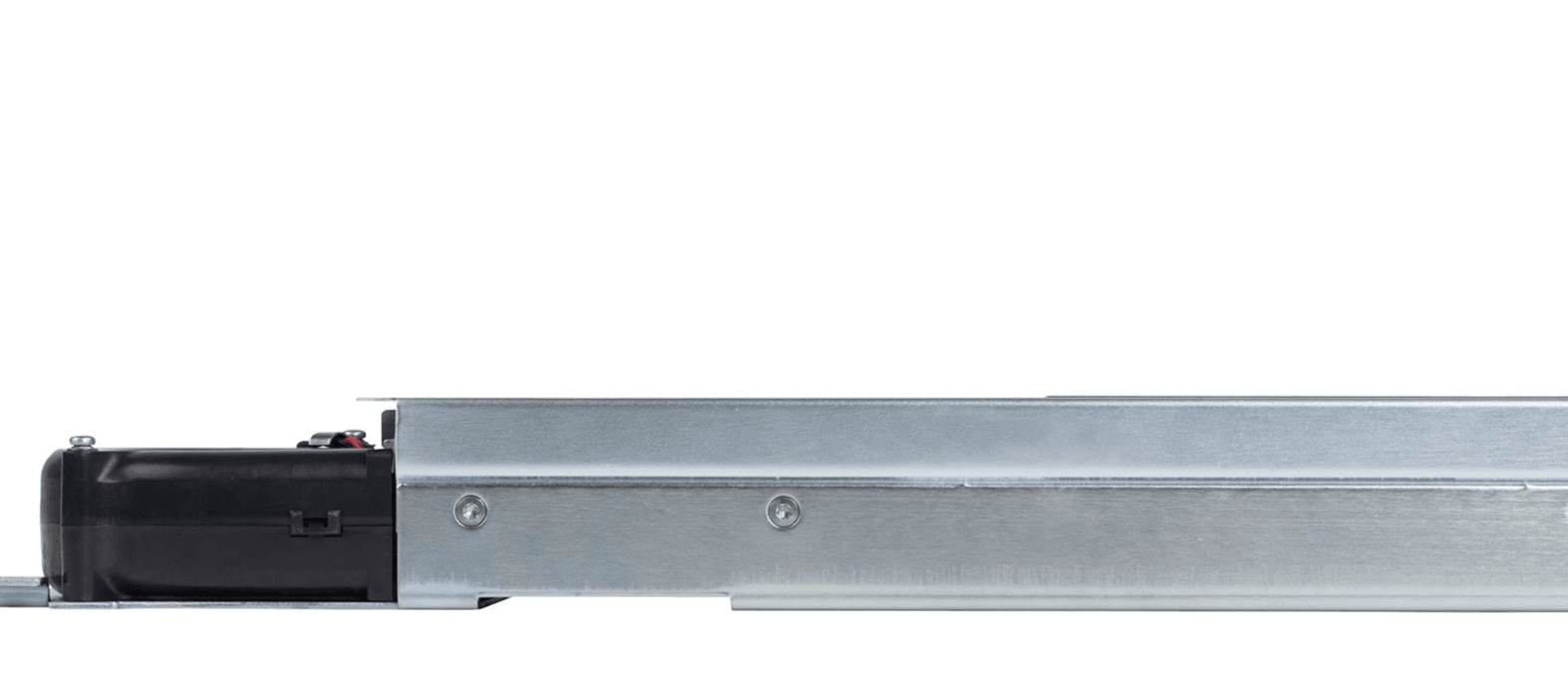

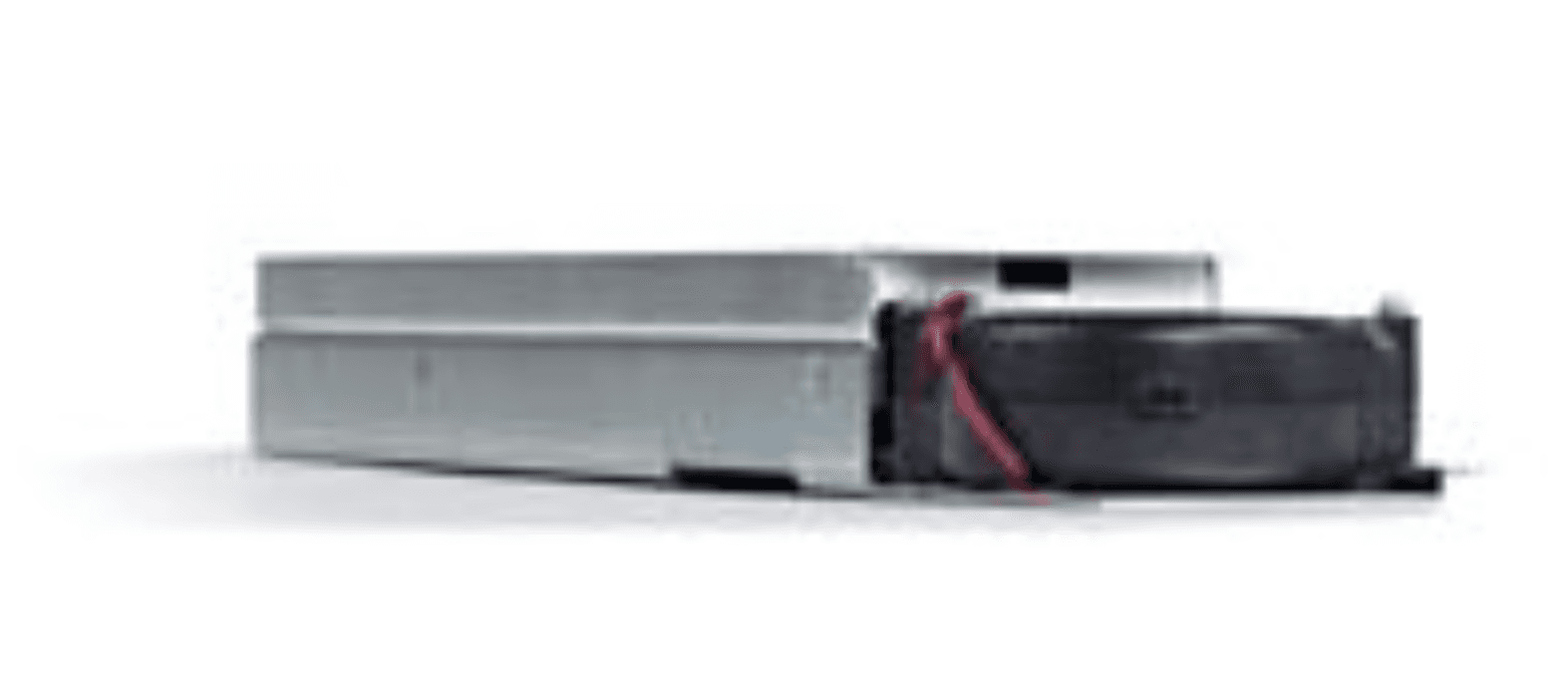

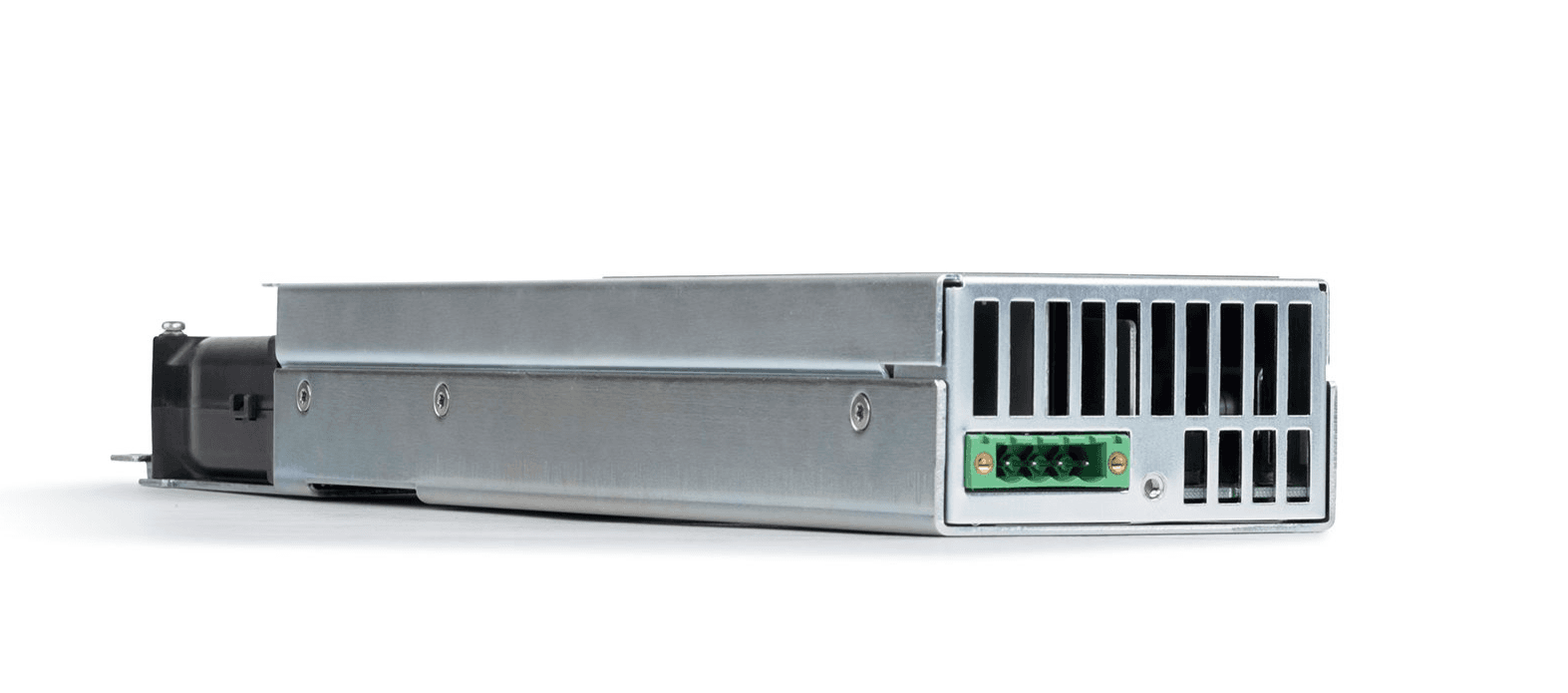

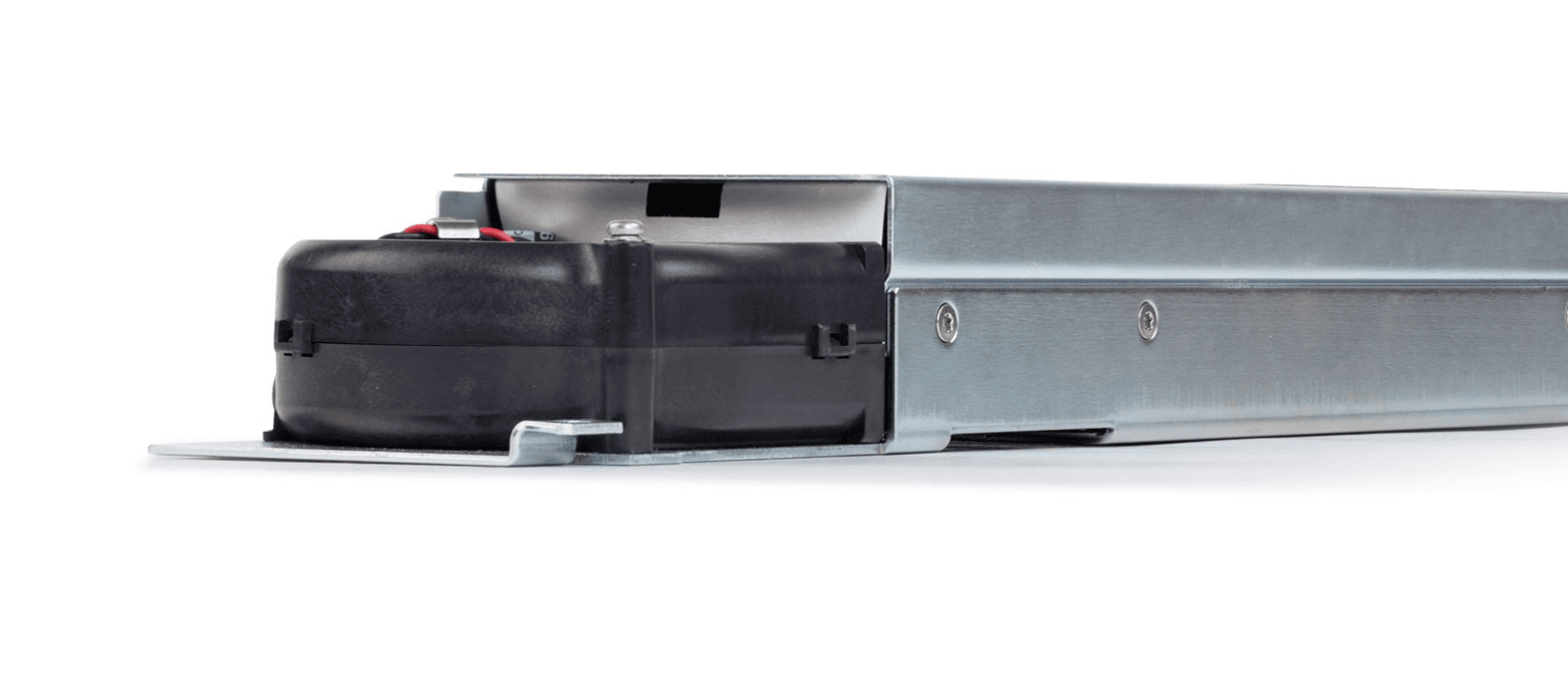

Keysight N6733B – DC Power Module – 20V, 2.5A, 50W
The Keysight N6733B is a high-quality DC power module designed for precision and reliability. It offers a voltage output of 20V, a current output of 2.5A, and a power output of 50W, making it suitable for a wide range of applications. It features advanced protection mechanisms to ensure safe and stable operation, including overvoltage, overcurrent, and overtemperature protection.
The module also has a built-in fan for efficient heat dissipation, allowing for continuous operation without overheating. It is commonly used in research and development, production testing, and quality assurance applications.
Maximum current per output 2.5 A | |
Maximum power 50 W | |
Maximum voltage per output 20 V | |
Number of outputs 1 | |
Type Module - Basic | |
Auxiliary Voltage Measurement Input No | |
Measurement accuracy 40 mV | |
Noise and ripple 14 mVpp | |
Output response time 0.2 ms | |
Programming accuracy 40 mV |
Up / down programming settling time 20 ms | |
Adjustable slew rate Yes | |
Data logger Yes | |
Regenerative power No | |
4-wire remote sense Yes | |
Arbitrary waveform generation Yes | |
Command processing time 32 ms |
Please refer to the following attachments for additional details on the product.
