Manufacturer
Juniper Networks
MPN
JNP-QSFP-4X10GE-LR
Available
236
Condition
New

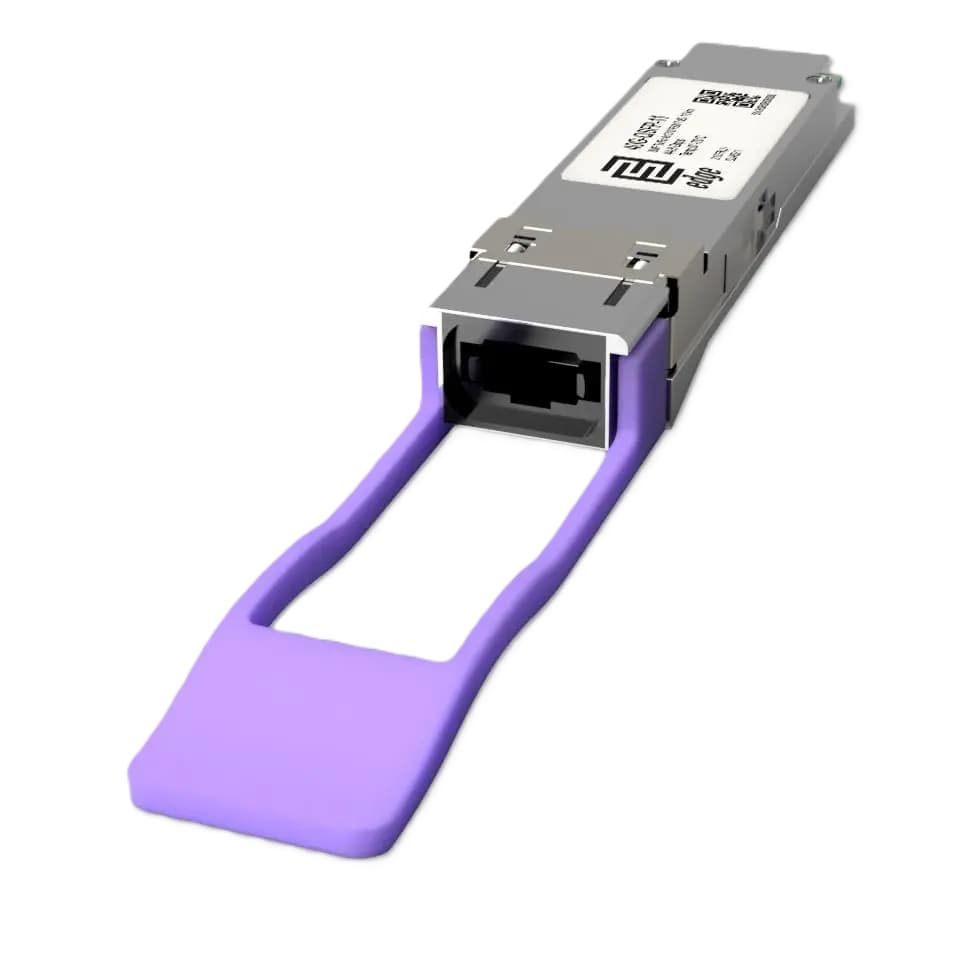

Juniper Networks JNP-QSFP-4X10GE-LR - Interface, Module, Sfp, 4x10g
The Juniper Networks JNP-QSFP-4X10GE-LR is a high-performance interface module designed for use in networking equipment. This module is equipped with four 10-gigabit Ethernet ports, allowing for a total bandwidth of 40 Gbps. It is compatible with a variety of Juniper Networks devices and can be used for a wide range of applications, including data center networking, cloud computing, and high-speed data transfer.
It is also hot-swappable, allowing for easy installation and replacement without disrupting network operations. With its compact size and low power consumption, this module is a cost-effective solution for expanding network capacity and improving overall performance. It is also compatible with a variety of optical transceivers, giving users the flexibility to choose the most suitable option for their specific needs.
Key Technical Data | |
|---|---|
| Media Type: | Single-Mode Fiber (SMF) |
| TX Wavelength: | 1310 nm. |
| Transceiver Type: | QSFP |
| RX Wavelength: | 1310 nm. |
| Minimum Optical Budget: | 7 dB |
| Maximum Distance: | 10km |
| Supported Data Rate: | 39.81 – 44.8 Gbps |
| Supported Applications: | 40G Ethernet (41.25Gbps), STM-256 (39.81 Gbps), OTU3 (43.01Gbps), OTU3e2 (44.58Gbps) |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | MTP/MPO |
| Tx Wavelength Bandwidth: | 95 nm (1260-1355 nm) |
| Rx Wavelength Bandwidth: | 95 nm (1260-1355 nm) |
| Minimum Transmitting Power: | Each Lane -5.5 dB |
| Maximum Transmitting Power: | Each Lane 1.5 dB |
| Receiver Sensitivity: | Each Lane -12.5 dB |
| Receiver Overload: | Each Lane 1 dB |
| Transmitter Type: | DFB Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH, UX |
