Manufacturer
Infinite Electronics Int'l
MPN
QGL22200
Available
25
Condition
New

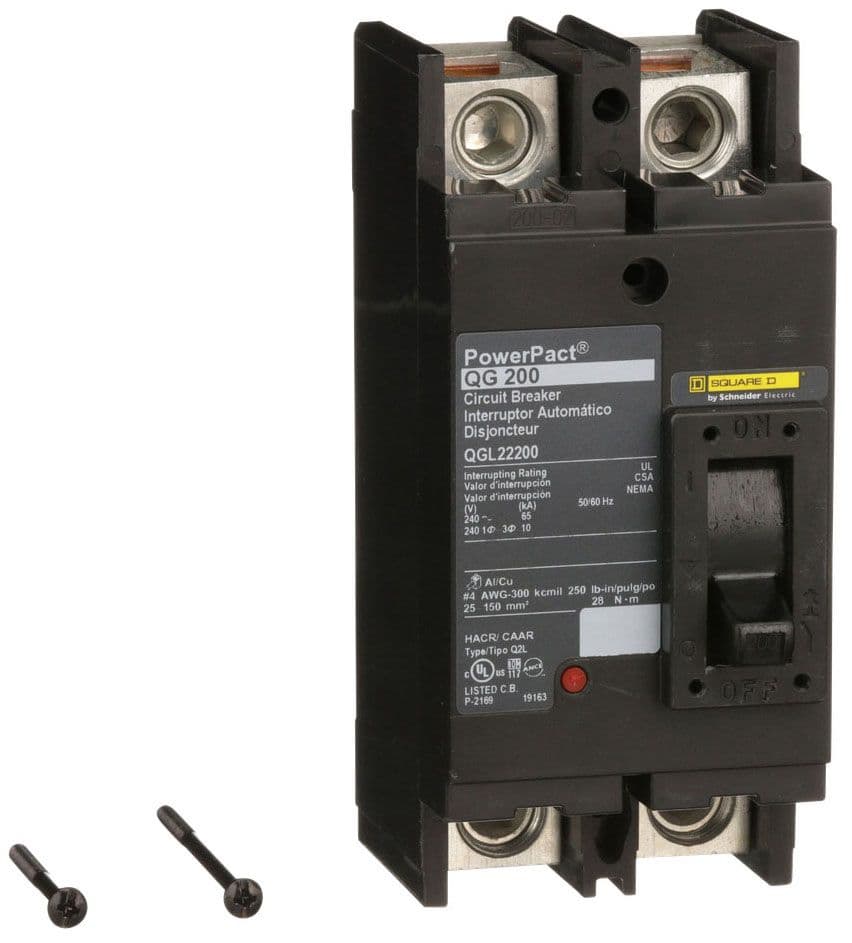

Infinite Electronics Int'l QGL22200 - Square D
The Infinite Electronics Int'l QGL22200 is a high-quality circuit breaker manufactured by Square D. It is designed to protect electrical circuits from overloads and short circuits, ensuring the safety and reliability of your electrical system. This circuit breaker has a maximum voltage rating of 240 volts and a current rating of 200 amps, making it suitable for use in residential, commercial, and industrial applications.
| Poles | 2 |
| Amperage (Rated Current) | 200 Amp |
| Voltage Rating | 240 VAC |
| Frame Type | Q Frame |
| Interrupt Rating | 65 kA @ 240V (G Interrupt Code) |
| Interrupt Rating at Other Voltages | 35 kA @ 480V, 18 kA @ 600V |
| Trip Unit Technology | Thermal Magnetic |
| Continuous Current Rating | 80% |
| Magnetic Hold Current | 1200 Amps |
| Magnetic Tripping Current | 2400 Amps |
| Mounting | Unit Mount with Lug |
| Electrical Connection | Lugs (Line and Load) |
| Dimensions (HxWxD) | 6.47" x 4.5" x 3.93" |
| Weight | Approx. 4.9 lbs (1.53 kg) |
| Breaking Capacity | 65 kA at 240V |
| Breaking Capacity Code | G |
| Control Type | Operating Handle |
| Device Application | Distribution |
| Rated Impulse Withstand Voltage | 8 kV |
| Mechanical Durability | 1000 cycles loaded, 5000 cycles no load |
| Network Frequency | 50/60 Hz |
| Ambient Operating Temperature | 104°F to 158°F |
Please refer to the following attachments for additional details on the product.
