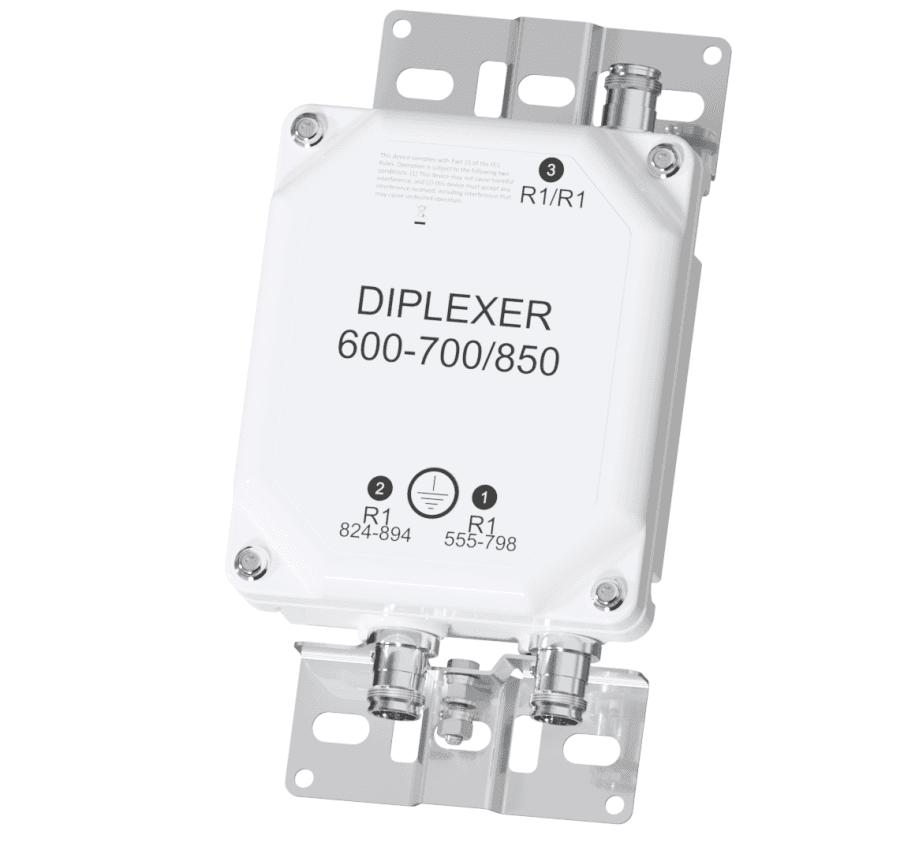

Generic Brand DBC0108F1V92-1 - DIPLEXER 600-700/850 DC AUTO 600-700:
The Generic Brand DBC0108F1V92-1 is a high-quality diplexer designed for use in telecommunications systems. This diplexer is capable of handling frequencies in the range of 600-700 MHz and 850 MHz, making it suitable for a wide range of applications. It is designed to provide excellent signal isolation and low insertion loss, ensuring optimal performance in any setup.
This diplexer features a DC auto function, which allows it to automatically switch between the 600-700 MHz and 850 MHz bands, depending on the signal strength. It is also compact and lightweight, making it easy to install and integrate into existing systems.
Enables antenna/feeder sharing for 600-700 and 850 networks
Designed and 100% tested for low passive intermodulation
Autosense of DC allows operation at the bottom or the top of the tower
Very low insertion losses
High Return Loss
Technical specifications | |||||||||||||||
| Port Name | 600-700 | 850 | |||||||||||||
| Passband | 555 - 798MHz | 824 - 894MHz | |||||||||||||
| Insertion loss | 0.15dB typical | ||||||||||||||
| Return loss | 23dB typical | ||||||||||||||
| EVM | ≤0.5% across any 10MHz | ≤0.5% across any 20MHz | |||||||||||||
| Group delay variation | 7.5ns typical over any 10MHz | 10ns typical over any 20MHz | |||||||||||||
| Absolute group delay | 7.5ns typical | 17.5ns typical | |||||||||||||
| Maximum input power | 120W (average) / 1200W (PEP) | 120W (average) / 1200W (PEP) | |||||||||||||
| Phase linearity over any 10MHz | 2° typical, 10 °maximum | ||||||||||||||
Electrical | |||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| Intermodulation products | -156dBc maximum / -160dBc typical all ports with 2 x 20W carriers | ||||||||||||||
| Isolation | 50dB typical | ||||||||||||||
Dc / aisg | |||||||||||||||
| Passband | 2.076 -2.276MHz | ||||||||||||||
| Input voltage range | 7.5 - 30V DC | ||||||||||||||
| DC current rating | 2.5A continuous | ||||||||||||||
| Port priority (combiner mode) | 1st) 600-700, 2nd) 850 | ||||||||||||||
Environmental | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40ºF to +149ºF | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Altitude | 3000m/10,000ft maximum | ||||||||||||||
| Lightning protection | RF: ±5kA maximum (8/20us), IEC61312-1 | ||||||||||||||
| MTBF | >1,000,000 hours | ||||||||||||||
Mechanical | |||||||||||||||
| Dimensions H x D x W (single unit) | 172 x 145 x 89 mm | 6.8 x 5.7 x 3.52 in | ||||||||||||||
| Weight (single unit) | 2.9kg / 6.4lbs | ||||||||||||||
| Finish | Painted, light grey (RAL7035) | ||||||||||||||
| Wind Load | Front 198N, Side 75N (single) At 74m/s (AS/NZS 1170-2-2011 Structural design - Wind actions - Cyclone areas) | ||||||||||||||
| Connectors (single unit) | 4.3-10 (F) x 3 long neck | ||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles | ||||||||||||||
