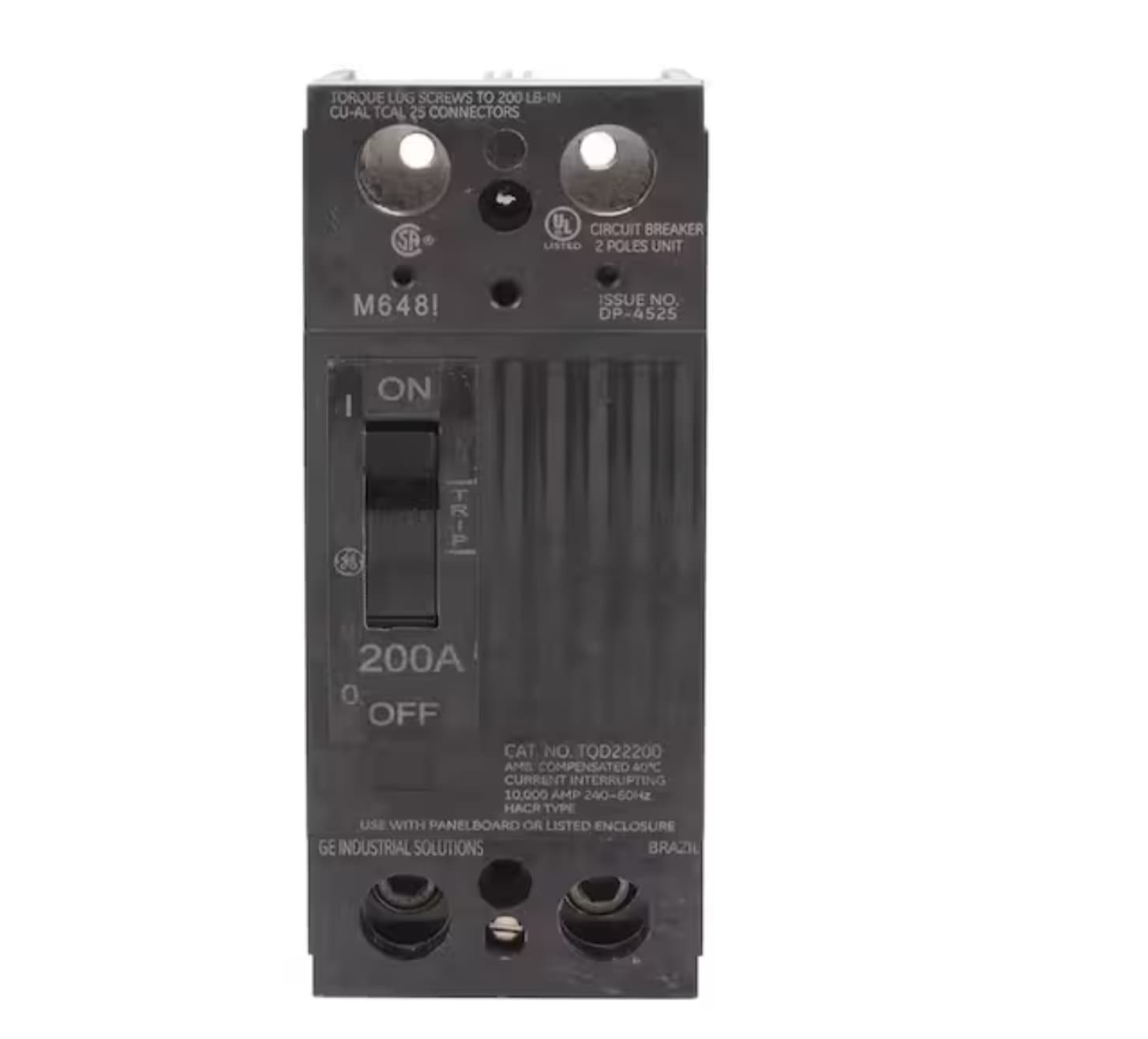

General Electric TQD22200 - Two Pole 200 Amp Breaker
Features
- Molded case is molded from high mechanical and high dielectric strength engineered plastic
- Trip indication is shown by handle position midway between on and off, to reset the trip mechanism, move the handle to extreme off, then to on position
- Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into position
- Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in on position
- VERIFIER "twist-to-trip" and ''push-to-trip'' mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
- Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
- Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
- Arc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcs
- UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight-in wiring
- 10 kA at 120 VAC, 10 kA at 120/240 VAC, 10 kA at 240 VAC interrupt rating
