Manufacturer
FranklinWH Energy Storage Inc.
MPN
AGT-R1V1-US
Available
171
Condition
New

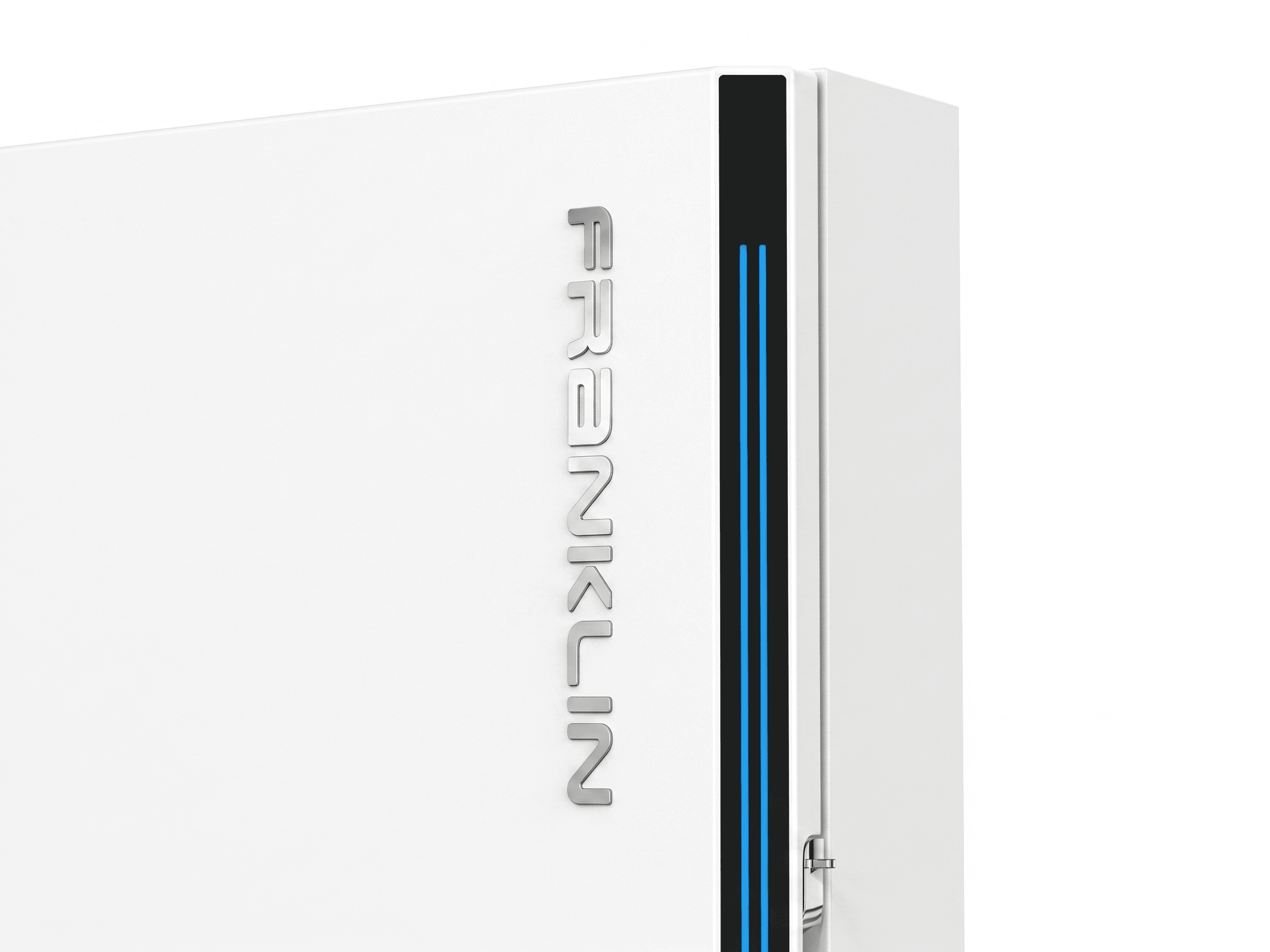

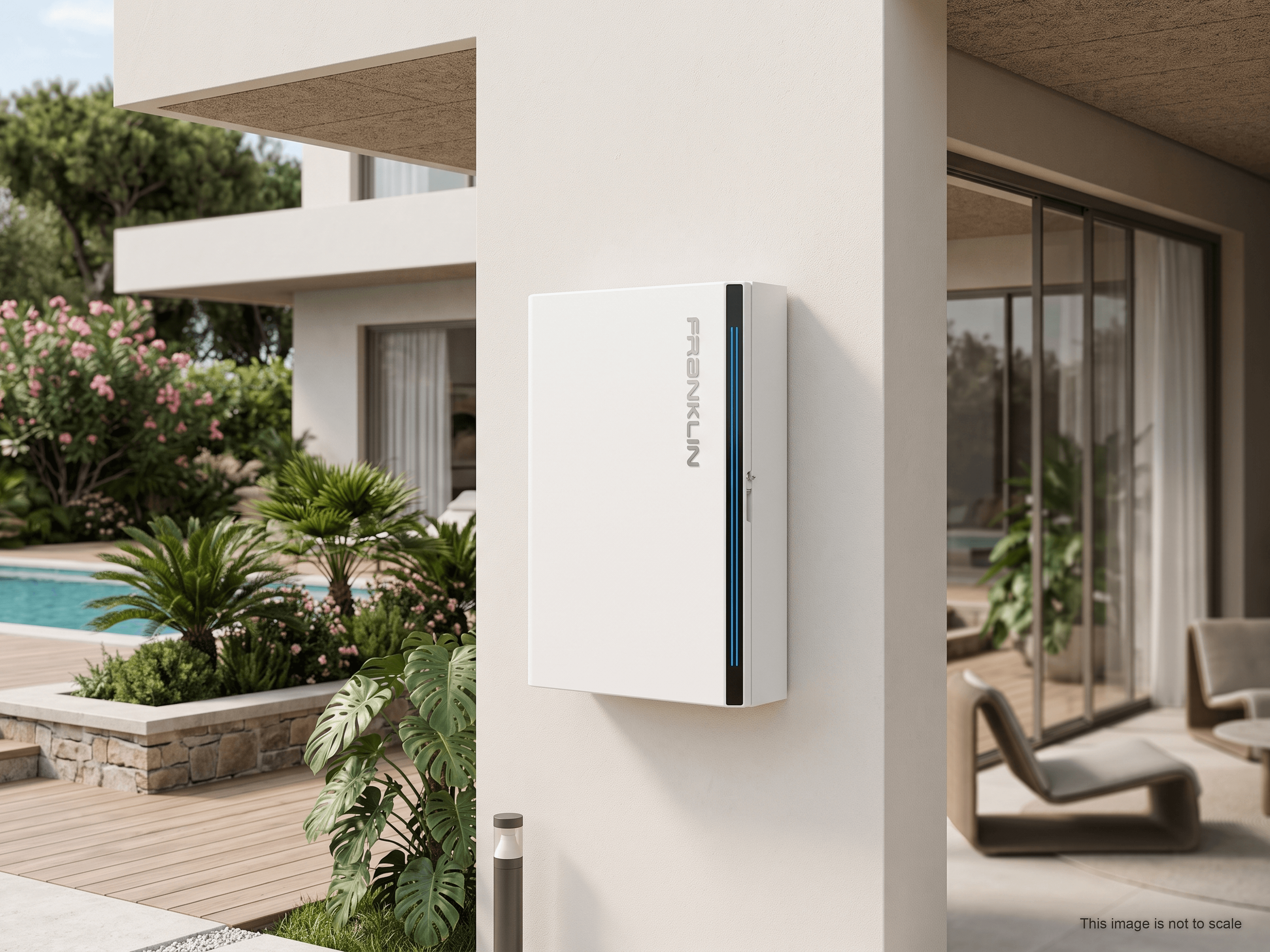

FranklinWH Energy Storage Inc. AGT-R1V1-US - Fwh Agate X
It is designed to store excess energy generated from renewable sources such as solar panels, wind turbines, and hydroelectric systems. The Fwh Agate X utilizes lithium-ion battery technology, which offers a longer lifespan, higher energy density, and faster charging capabilities compared to traditional lead-acid batteries.
Automatic whole home backup power with near-instantaneous 16ms transfer.
Intelligent energy management optimizing solar, battery, grid, and generator use.
Universal compatibility with any solar inverter brand.
Durable indoor/outdoor rated NEMA 3R enclosure.
UL certified for rigorous safety standards.
Mobile app monitoring provides real-time energy insights.
Specifications | |
| Battery Chemistry | Lithium Iron Phosphate (LFP) |
| Usable Battery Energy | 13.6 kWh per unit |
| Nominal AC Voltage | 120V / 240V, 60 Hz |
| Max Continuous Power | 5 kW |
| Peak Power (10 sec) | 10 kW |
| Round Trip Efficiency | 89% |
| Battery Dimensions (H x W x D) | 45.3 x 29.5 x 11.4 in |
| Battery Weight | 408 lbs (185 kg) |
| Battery Enclosure Rating | IP67 |
| Battery Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Switch-Over Time | <16 ms |
| Max Supply Fault Current | 20 kA |
| Backup Load Overcurrent Protection | 200 A |
| Controller Dimensions (H x W x D) | 31.5 x 21.7 x 6.3 in |
| Controller Weight | 50 lbs (23 kg) |
| Controller Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
