Manufacturer
Duracomm Corp.
MPN
RCP-1000-48-C
Available
6
Condition
New

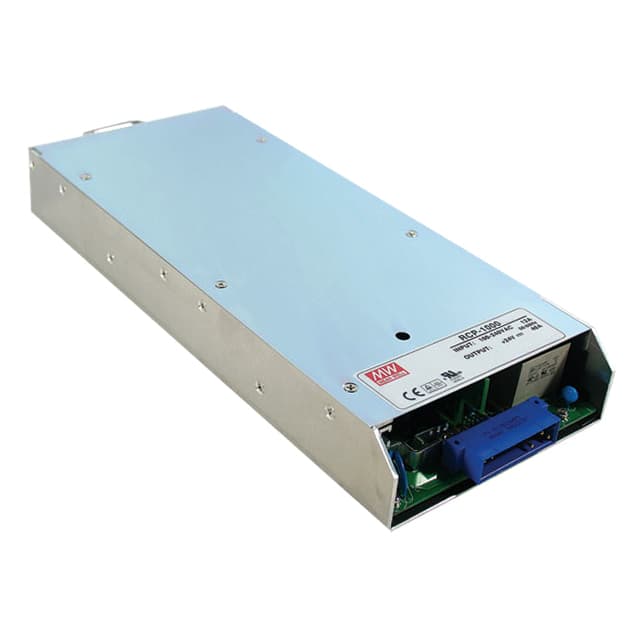

Duracomm Corp. RCP-1000-48-C - *48 VDC Rectifier Module, Samlex
The Duracomm Corp. RCP-1000-48-C is a high-quality rectifier module designed for use with a 48 VDC power supply. The RCP-1000-48-C features a compact and lightweight design, making it easy to install and integrate into existing power systems.
It has a maximum output power of 1000 watts, making it suitable for powering a wide range of devices. The module also has built-in protection features, including overvoltage, overcurrent, and short circuit protection, ensuring the safety of your equipment.
Specifications | |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 48V |
| Current - Output 1 | 21 A |
| Power (Watts) | 1008W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 89% |
| Operating Temperature | -20°C ~ 60°C (With Derating) |
| Features | Adjustable Output, I2C Interface, PFC, Remote On/Off, Universal Input |
| Mounting Type | Rack Mount |
| Size / Dimension | 11.61" L x 5.00" W x 1.61" H (295.0mm x 127.0mm x 41.0mm) |
No specifications available.
