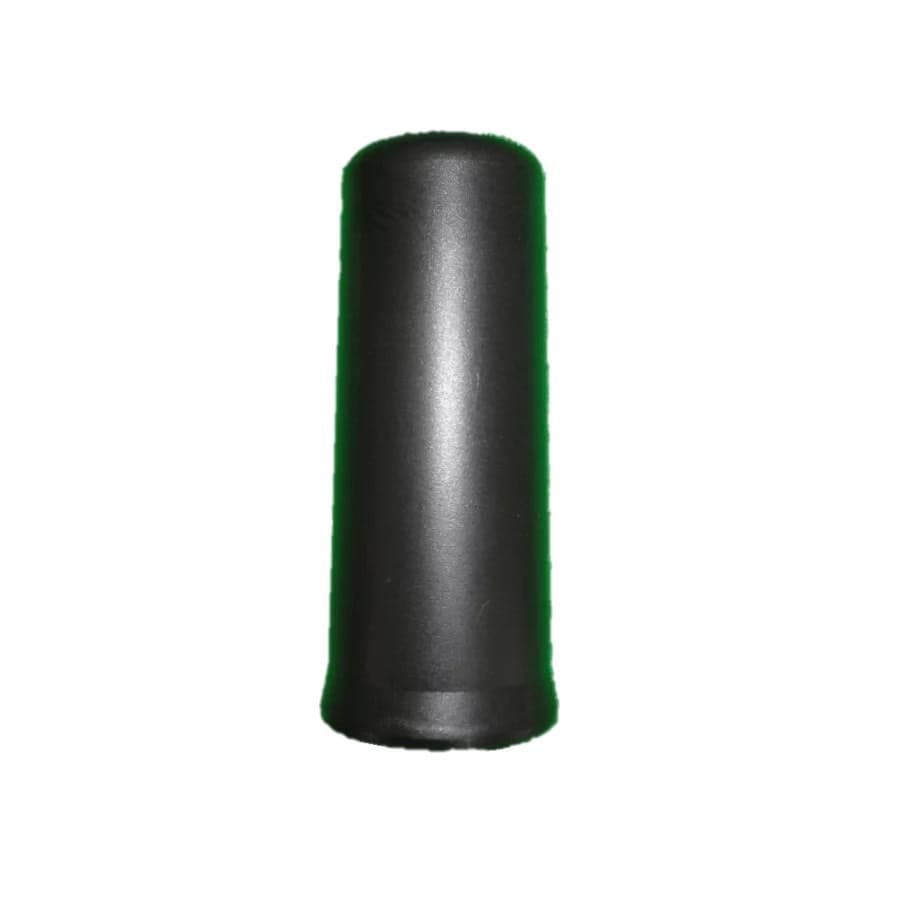

Denke Laboratories TTA450ES-2 - Eot Antenna For Pulse Es Series

Eot Antenna For Pulse Es Series

The TTA450ES-2 antenna is designed to be used in commercial, military or private fleet communication systems where reliability is needed most. This antenna works with all radios within the 445-465 MHz band.

The antenna is designed to provide maximum Data, Video & Voice performance in a wide range of applications.

The antenna is provided with state-of-the-art radiating elements essential for maximum reliability and superior performance.

Robust and tough, this antenna is housed in a thick UV stable radome and is constructed from corrosion resistant materials for reliability in the harshest environments.

Low VSWR

High Strength Xenoy Radome

Built for Shock & Vibration

Simple Installation

ELECTRICAL:

Frequency Range: 445‐465 MHz

Gain: 1.0 dBi Over Ground Plane

VSWR: 1.5:1 Typical

Input Impedance: 50 Ω Nominal

Polarization: Vertical

Input Connector: NMO

MECHANICAL:

Overall Height: 4 in. (101 mm)

Diameter: 1.5 in. (38.1 mm) OD

Maximum Wind Load: 150 mph (241 km/h)

Net Weight: 0.4 lb. (0.19 kg)

Operational Temps: ‐40° to +185°F (‐40° to +85°C)

Color: Black

Mounting: NMO
