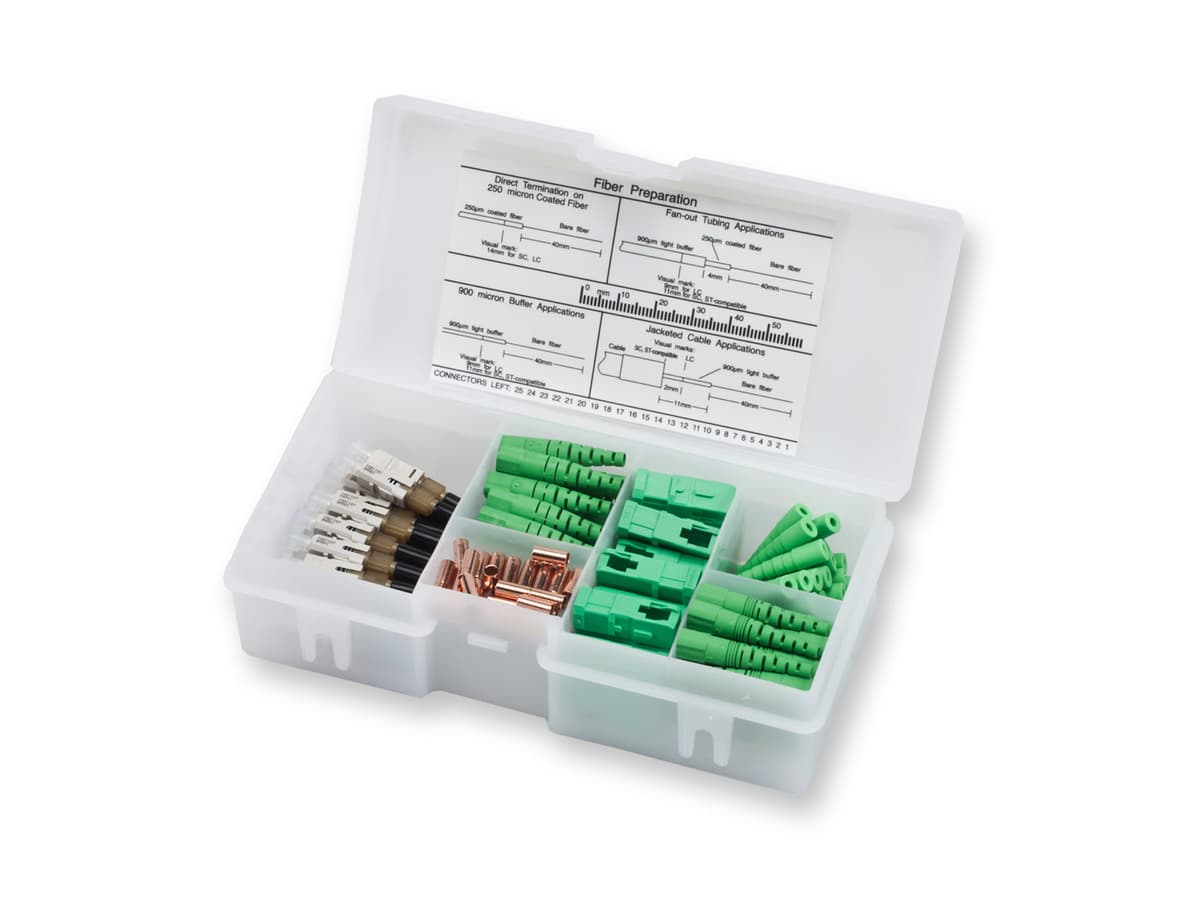

Corning OSNP-SCA-900-Z - Connector Optisnap Sc Apc Singlemode (os
Slide 1 of 1
Manufacturer
Corning
MPN
OSNP-SCA-900-Z
Available
9
Condition
New
Corning OSNP-SCA-900-Z - Connector Optisnap Sc Apc Singlemode (os
FEATURES
- No-epoxy/no-polish or other consumables required, quick and easy installation, less than one minute per connector on average
- 100% factory tested for insertion loss, typical insertion loss of 0.2 dB for UPC and 0.3 dB for APC connectors
- Factory polished end face, low insertion loss and high performance return loss
- Reliable, proven mechanical splice technology, over 70 million connectors deployed in various applications
- No need for electrical power for ovens or lights, reduces complexity
Please refer to the following attachments for additional details on the product.
- Product Type:
- Field-Installable Connectors
- Fiber Category:
- Single-mode (OS2)
- Compatibility:
- 900 µm
- Technology:
- No-Epoxy/No-Polish
- Temperature Range, Operation:
- -40 °C to 75 °C (-40 °F to 167 °F)
- Connector Type:
- SC
- Housing Color:
- Green
- Ferrule Material:
- Ceramic
- Cable Compatibility:
- 900 µm
- Nominal Fiber Outer Diameter:
- 125 µm
- Tensile Strength Jacketed Cable:
- 49.5 N (11.13 lbf)
- Durability:
- ≤ 0.2 dB change, 500 rematings, FOTP-21
- Tensile Strength 900 µm Cable:
- 4.8 N (1.1 lb) change ≤ 0.2 dB
- Polish:
- APC
- Reflectance:
- ≥ -40 dB (FBC-009 for 250 µm)
- Reflectance (angled cleave):
- ≥ -55 dB (FBC-016 for 900 µm)
