Manufacturer
Corning
MPN
MTB-0844TD400FW-P
Available
1
Condition
New

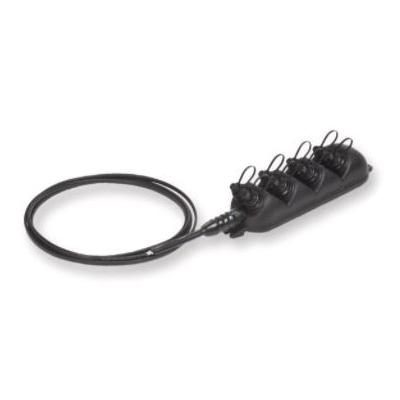

Multiport Terminal Mtb, 08 Port, 44 - Sm Scapc Sm Connector, Wall/Pole/Pedestal Mount, 400 Ft Stub Of Sst Flat Toneable Drop Cable
The Corning MTB-0844TD400FW-P is a multiport terminal designed for use in fiber optic networks. It features 08 ports. This terminal is suitable for wall, pole, or pedestal mounting. The terminal comes with a 400 ft stub of SST flat toneable drop cable, making it easy to connect to the network. The cable is designed to be toneable, allowing for easy identification and tracing during installation and maintenance.
| Cable Type | SST Flat Toneable Drop |
| Fibre Category | Single-mode OS2 |
| Housing Material | Plastic |
| Ports | 8 (OptiTap cable assembly connector ports) |
| Number of Fibres in Input Cable | 8 |
| Preconnectorized | Yes (Stubbed hardware) |
| Technology | Pushlok |
| Environmental Rating | IP68 (sealed, environmental protection) |
| Operating Temperature Range | -40 °C to +70 °C (-40 °F to +158 °F) |
| Design Lockable | No |
| Cable Length | 400 ft (122 m) |
| Connector Type (A/B) | SC, APC Polish |
| Insertion Loss, typical | 0.35 dB |
| Reflectance, typical | 65 dB |
| Dimensions (L x W x H) | 312 mm x 76 mm x 86 mm (12.3 in x 3.0 in x 3.4 in) |
| Weight | 0.7 kg (1.5 lb) |
