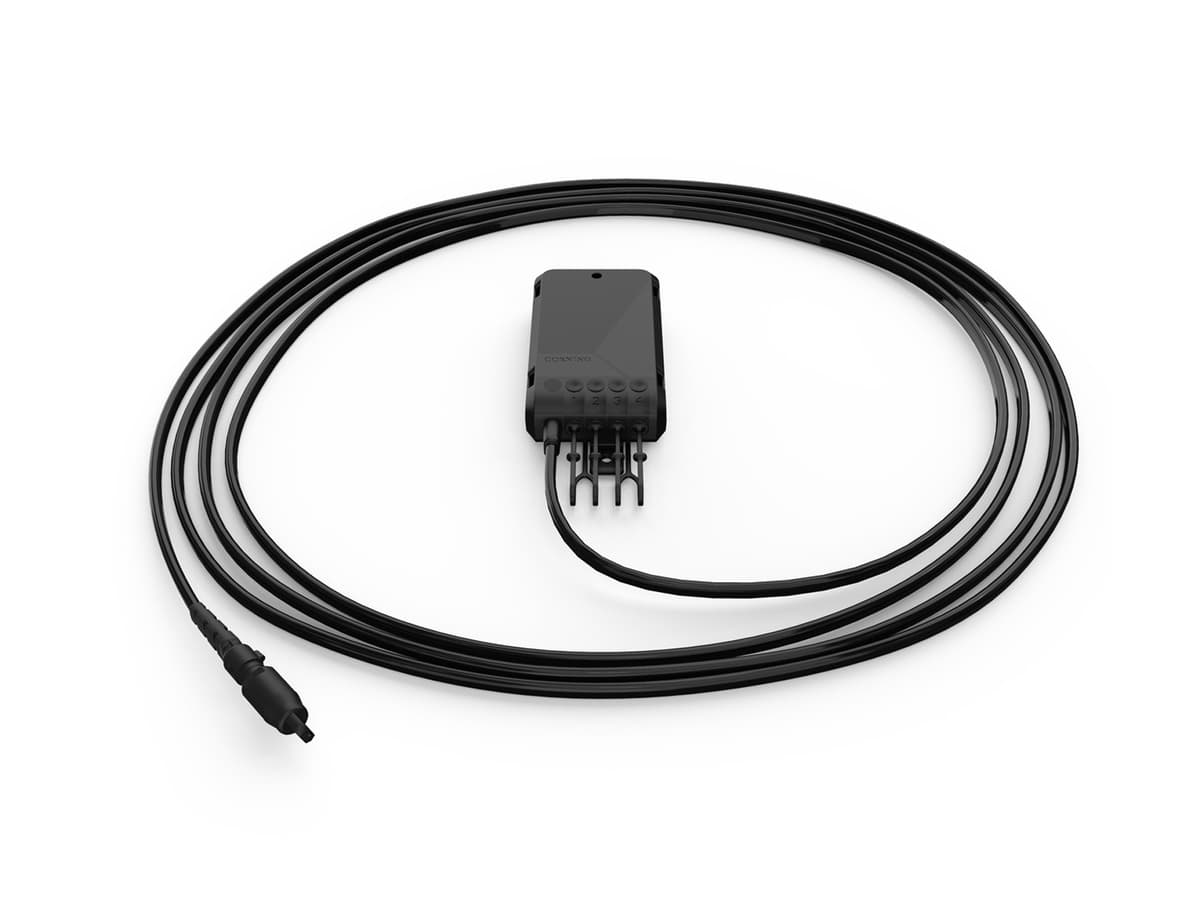

Corning DFA4F1FDD1M1050F0P - Evolv Terminal
Please refer to the following attachments for additional details on the product.
- Product Type:
- Terminals
- Environment:
- Outdoor
- Cable Type:
- SST Flat Dielectric Drop
- Fiber Category:
Warranty
Functional on Delivery Guarantee
Preconnectorized "Stubbed" Hardware:Yes Cable type stubbed:SST Drop Cable Mounting Type:Strand-mount, Pole-mount, Pedestal-mount, Handhole Mount Application:Fiber to the Premises Temperature Range, Operation:-40 °C to 85 °C (-40 °F to 185 °F ) Temperature Range, Storage:-40 °C to 85 °C (-40 °F to 185 °F ) Fiber Coloring:Blue, Orange, Green, Brown Number of single-fiber ports, SC APC connector:4 Input Cable Type:SST Flat Dielectric Drop Number of Fibers in Input Cable:4 Cold Mate/Demate:-40 °C (-40 °F) Module Insertion Loss, Max:0.5 dB Reflectance, Maximum:> 65 dB Insertion Loss, Max.:0.50 dB Insertion Loss, Typical:0.15 dB Insertion Loss, Max.:0.50 dB Insertion Loss, Typical:0.15 dB
