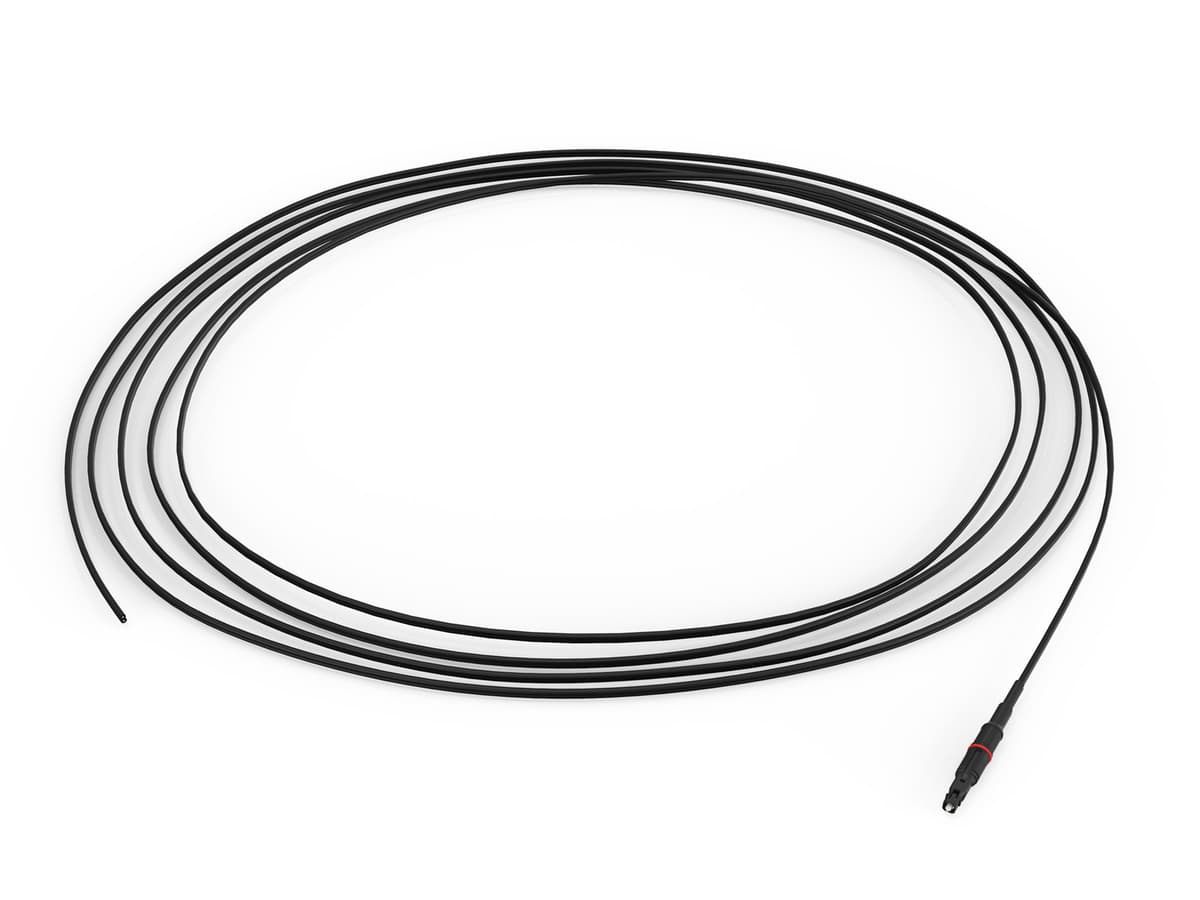

Corning 00D101EB49RA00F-P - Pigtail Pushlok(tm) Apc, Smf-28e, 1f Roc 900 Drop, Dielectric, 1000.000 Feet Individual Packaging
Slide 1 of 1
Manufacturer
Corning
MPN
00D101EB49RA00F-P
Available
20
Condition
New
Corning 00D101EB49RA00F-P - Pigtail Pushlok(tm) Apc, Smf-28e, 1f Roc 900 Drop, Dielectric, 1000.000 Feet Individual Packaging
Please refer to the following attachments for additional details on the product.
- Fiber Category:
- Single-mode (OS2)
- Cable Assembly Type:
- Drop Assemblies
- Environment:
- Outdoor
- Cable Type:
- ROC dielectric drop
- Assembly Insertion Loss:
- ≤ 0.15 dB
- Installation Methods:
- Aerial
- Temperature Range, Operation:
- -40 °C to 70 °C (-40 °F to 158 °F )
- Fiber Count:
- 1
- Cold Mate/Demate:
- -40 °C (-40 °F)
- Axial Pull, Plug to Cable, Through the Dust Cap:
- 444.82 N (100 lb) in axial pull with load applied to the dust cap
- Fiber Code:
- E
- Performance Option Code:
- 01
- Fiber Category:
- OS2
- Fiber Type:
- Single-mode (OS2) / 250 µm
- Fiber Name:
- Single-mode (OS2)
- Maximum Attenuation:
- 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
- Wavelengths:
- 1310 nm / 1383 nm / 1550 nm
- Reflectance, Typical:
- > 65 dB (optical return loss)
- Insertion Loss, Typical:
- ≤ 0.15 dB
- Connector Type:
- No connector
- Reflectance, Typical:
- > 65 dB (optical return loss)
- Insertion Loss, Typical:
- ≤ 0.15 dB
- Connector Type:
- Pushlok
