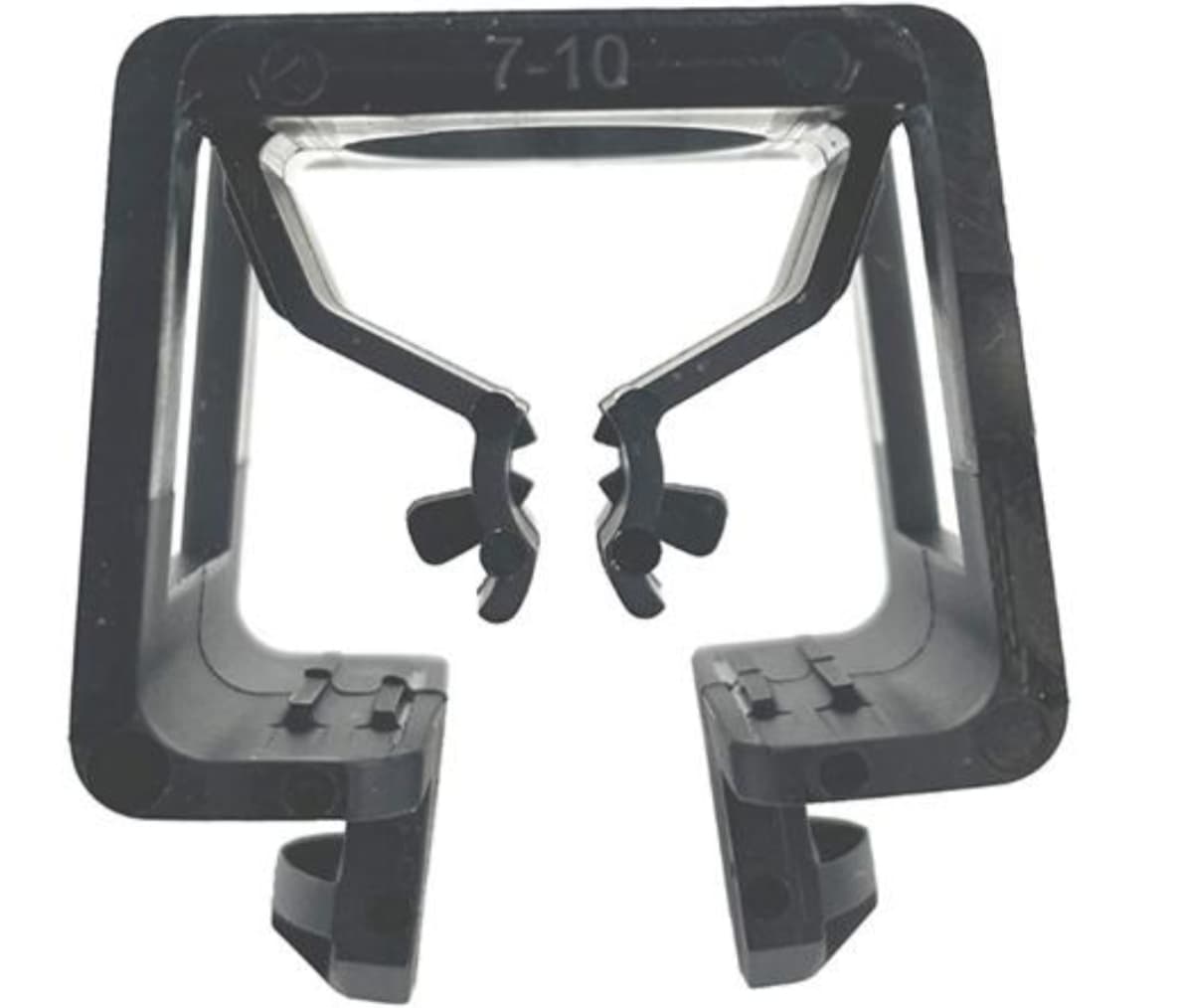

Concealfab PSPS-0710-10 - Pim Shield Plastic Snap-inln 7

Concealfab PSPS-0710-10 - Pim Shield Plastic Snap-in, 7 To 10 Mm, (qty 10 Each)

Features

General PIM Shield Plastic Snap-ins provide a low passive intermodulation method to secure RF, fiber, power and RET cables in high risk PIM zones. Four all-plastic designs provide inherently PIM-free support for cables ranging from 4mm to 17mm in diameter.

Mounting Plastic Snap-ins are designed to insert into support bars (sold separately) that are 0.118-inch to 0.160-inch thick with 0.71-inch to 0.76-inch diameter holes. ConcealFab offers a variety of low PIM Support Bar options for use in the high risk PIM zone.

System PIM Performance(when tested at next higher assembly)
IM3 <-100 dBm when tested in accordance with proposed IEC 62037-8, near field test, 2x 20W test tones, while subjected to dynamic stimulus.
