Manufacturer
CommScope
MPN
TMAT23B78-21A
Available
14
Condition
New

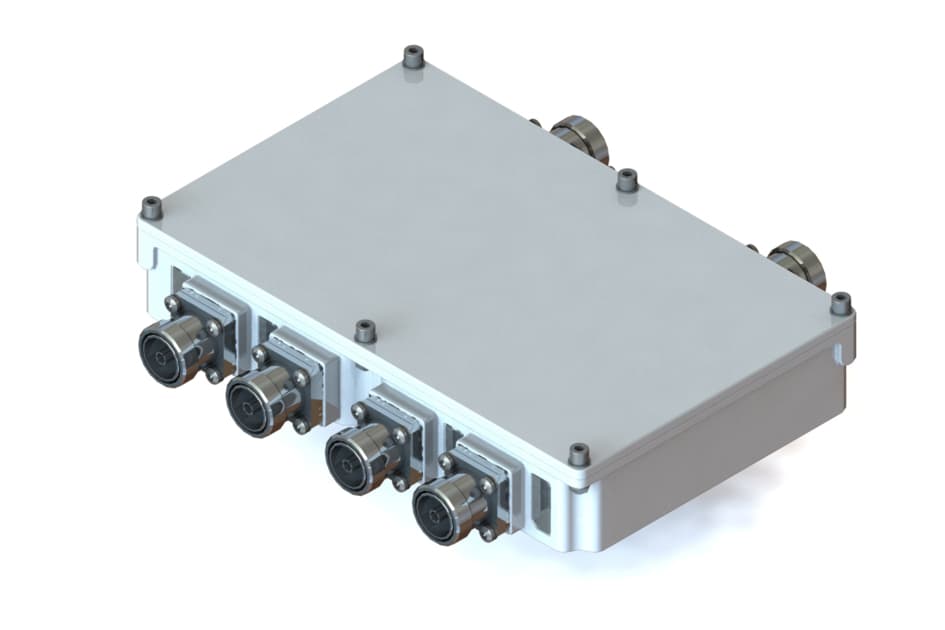

CommScope TMAT23B78-21A - Twin Tower Mounted Amplifier Wcs With 700-850 Bypass Aisg
The CommScope TMAT23B78-21A is a high-performance Twin Tower Mounted Amplifier designed for use in wireless communication systems. This amplifier is specifically designed for use in the WCS (Wireless Communication Service) frequency band, with a bypass feature for the 700-850 MHz frequency range. This allows for seamless integration with existing communication systems and ensures optimal performance.
This amplifier is part of their TMAT series, which is designed to provide enhanced coverage and capacity for wireless networks. This Twin Tower Mounted Amplifier is equipped with advanced features such as Automatic Gain Control (AGC) and Automatic Level Control (ALC) to ensure consistent and reliable signal amplification. It also has an integrated AISG (Antenna Interface Standards Group) protocol for remote monitoring and control.
General specifications | ||
| RF Connector Interface | 7-16 DIN Female | |
| RF Connector Interface Body Style | Long neck | |
Dimensions | ||
| Height | 170 mm | 6.693 in | |
| Width | 270 mm | 10.63 in | |
| Depth | 50 mm | 1.969 in | |
Electrical specifications | ||
| License Band, Band Pass | CEL 850 | LMR 750 | LMR 800 | USA 700 | USA 750 | |
| License Band, LNA | WCS 2300 | |
Electrical specifications, common port | ||
| Composite Power, RMS | 200 kW | |
Electrical specifications, dc power/alarm | ||
| Lightning Surge Current | 10 kA | |
| Lightning Surge Current Waveform | 8/20 waveform | |
| Operating Current at Voltage | 210 mA @ 12 Vdc | |
| Voltage, CWA Mode | 10–18 Vdc | |
Electrical specifications, aisg | ||
| AISG Carrier | 2.176 MHz ± 100 ppm | |
| AISG Connector | 8-pin DIN Female | |
| AISG Connector Standard | IEC 60130-9 | |
| Protocol | AISG 1.1 | AISG 2.0 | |
| Voltage, AISG Mode | 10–30 Vdc | |
Electrical specifications | ||
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | ANT 1 698-894 | ANT 0 WCS |
| AISG 2.0 Device Subunit | E25A01P03 1/2 | |
| License Band | CEL 850, Band Pass LMR 750, Band Pass LMR 800, Band Pass USA 700, Band Pass USA 750, Band Pass | WCS 2300, LNA |
Electrical specifications, band pass | ||
| Frequency Range, MHz | 698–894 | |
| Insertion Loss, maximum, dB | 0.20 | |
| Return Loss, minimum, dB | 18 | |
| Return Loss, typical, dB | 20 | |
| Isolation, minimum, dB | 60 | |
| Input Power, RMS, maximum, W | 200 | |
| Input Power, PEP, maximum, W | 3,000 | |
| 3rd Order PIM, maximum, dBc | -153 | |
Electrical specifications, rx uplink | ||
| Frequency Range, MHz | 2305–2315 | |
| Gain, nominal, dB | 13.0 | |
| Gain Tolerance, dB | 1 | |
| Noise Figure, typical, dB | 1.7 | |
Electrical specifications, tx downlink | ||
| Frequency Range, MHz | 2350–2360 | |
| Insertion Loss, maximum, dB | 0.60 | |
| Insertion Loss, typical, dB | 0.50 | |
| Total Group Delay, maximum, ns | 50 | |
| Return Loss, minimum, dB | 18 | |
| Return Loss, typical, dB | 20 | |
| Input Power, RMS, maximum, W | 200 | |
| Input Power, PEP, maximum, W | 3,000 | |
| 3rd Order PIM, typical, dBc | -153 | |
| 3rd Order PIM Test Method | Two +43 dBm carriers | |
Environmental specifications | ||
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) | |
| Relative Humidity | Up to 100% | |
| Corrosion Test Method | IEC 60068-2-11, 30 days | |
| Ingress Protection Test Method | IEC 60529:2001, IP67 | |
Weights | ||
| Weight, net | 4.2 kg | 9.259 lb |
Please refer to the following attachments for additional details on the product.
