CommScope TMAT21-11-43 - COMMSCOPE,TMAT21-11-43,TWIN AWS TMA 4.3-10

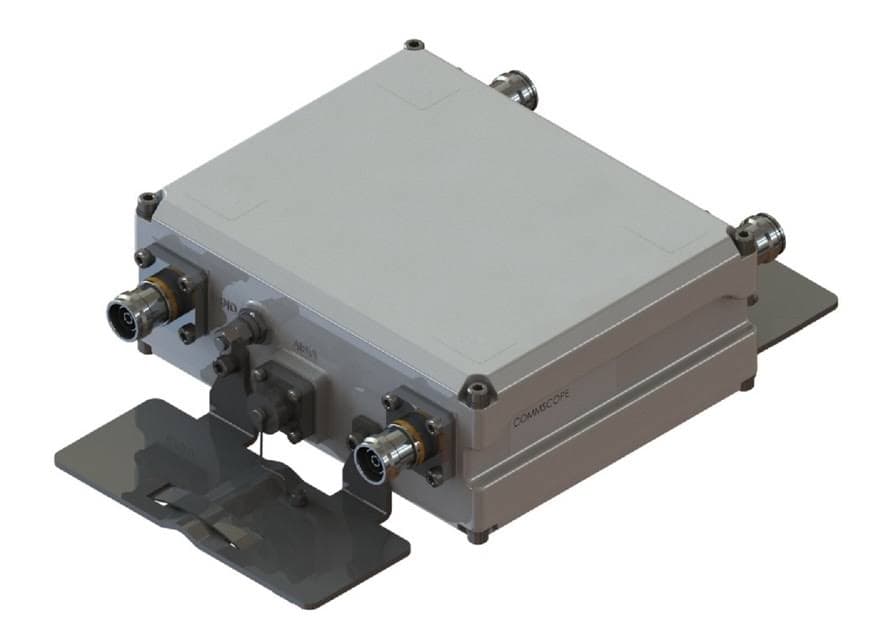

The CommScope TMAT21-11-43 is a twin AWS TMA 4.3-10 connector with certification. It is designed to provide reliable and secure connections for a variety of applications. The connector is made from high-quality materials and is designed to withstand harsh environmental conditions. It is suitable for use in both indoor and outdoor applications. The connector is easy to install and provides a secure connection for a variety of applications.Features and BenefitsNew 4.3-10 connectors for improved PIM performance and size reductionSpecificationsProduct ClassificationProduct Type1-BTS:1-ANT (Uniplex) | Tower mounted amplifierGeneral SpecificationsColorGrayModularity2-TwinMountingPole | WallMounting Pipe HardwareBand clamps (2)RF Connector Interface4.3-10 FemaleRF Connector Interface Body StyleLong neckDimensionsHeight161 mm | 6.339 inWidth196 mm | 7.717 inDepth78 mm | 3.071 inGround Screw Diameter5 mm | 0.197 inMounting Pipe Diameter Range40–160 mmOutline DrawingClick on image to enlarge.Electrical SpecificationsLicense Band, LNAAWS 1700Electrical Specifications, dc Power/Alarmdc Switching/RedundancyYesLightning Surge Current20 kALightning Surge Current Waveform8/20 waveformOperating Current at Voltage100 mA @ 12 VOperating Current Tolerance±20 mAVoltage7–30 VdcVoltage, CWA Mode10–18 VdcAlarm Current, CWA Mode190 mA ±10 mAElectrical Specifications, AISGAISG Connector8-pin DIN FemaleAISG Connector StandardIEC 60130-9ProtocolAISG 2.0Voltage, AISG Mode10–30 VdcElectrical SpecificationsSub-module1 | 2Branch1Port DesignationANTLicense BandAWS 1700, LNAElectrical Specifications, Band PassSub-module1 | 2Higher Order PIM, typical, dBc-161Higher Order PIM Test Method2 x 20 W CW tonesElectrical Specifications, Rx UplinkFrequency Range, MHz1695–1780Gain, nominal, dB12.0Gain Tolerance, dB±1Noise Figure, typical, dB1.2Total Group Delay, maximum, ns35Output IP3, minimum, dBm22Return Loss, typical, dB21Insertion Loss - Bypass Mode, typical, dB1.7Return Loss - Bypass Mode, typical, dB17Electrical Specifications, Tx DownlinkFrequency Range, MHz2110–2200Insertion Loss, typical, dB0.20Total Group Delay, maximum, ns10Return Loss, typical, dB21Input Power, RMS, maximum, W200Input Power, PEP, maximum, W2,000Block DiagramClick on image to enlarge.Material SpecificationsFinishPaintedEnvironmental SpecificationsOperating Temperature-40 °C to +65 °C (-40 °F to +149 °F)Relative HumidityUp to 100%Corrosion Test MethodIEC 60068-2-11, 30 daysIngress Protection Test MethodIEC 60529:2001, IP67Packaging and WeightsIncludedMounting hardwareWeight, without mounting hardware3.4 kg | 7.496 lb
