Manufacturer
CommScope
MPN
TMAT1921XB68-21A
Available
46
Condition
New

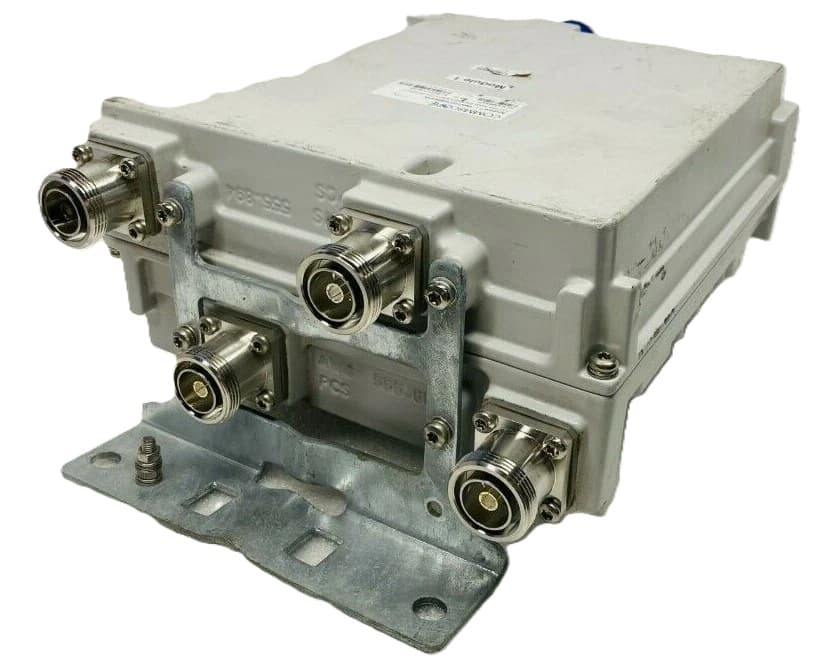

CommScope TMAT1921XB68-21A - Tower Mounted Amplifier, Twin Diplexed Pcs/aws 14, 555894 Mhz Bypass With Aisg
It is specifically designed to enhance the signal strength and quality of PCS/AWS 14 and 555894 MHz frequencies. This amplifier is equipped with twin diplexers, allowing it to support multiple frequency bands simultaneously. This allows for remote monitoring and control of the amplifier, making it easier to troubleshoot and maintain.
The AISG feature also enables the amplifier to adjust its gain and power consumption according to the network's needs, ensuring optimal performance at all times. This tower mounted amplifier is easy to install and can be mounted directly onto the tower, saving space and reducing installation time. It also comes with a weatherproof housing to protect it from the elements.
Specifications | |
| Standard Supported | AWS 1700, PCS 1900 |
| Frequency | 1.695 to 2.2 GHz |
| Bypass | Yes |
| Bypass Band | 555-894 MHz |
| Power | 200 W |
| Configuration | Twin TMA |
| Peak Power | 3 kW |
| AISG | v2.0 |
| Application | AWS1700 / PCS1900 |
| Band | Dual Band |
| Intermodulation | -155 dBc |
| Current | 240 mA |
| Voltage | 7 to 30 V |
Down Link (Tx) Specifications | |
| Frequency TX | 1.93 to 2.2 GHz |
| Insertion Loss TX | 0.3 to 0.45 dB |
| Group Delay TX | 15 to 50 ns |
| Return Loss TX | 22 dB |
Uplink (Rx) Specifications | |
| Gain RX | 12 dB |
| Frequency RX | 1.695 to 1.91 GHz |
| Insertion Loss RX | 1.3 to 2.2 dB |
| Group Delay RX | 80 to 150 ns |
| Noise Figure RX | 1 to 1.3 dB |
| Return Loss RX | 80 to 150 ns |
Mechanical Specifications | |
| Connectors | 7/16 DIN, 7/16 DIN - Female |
| Dimension | 9.1 x 8.7 x 4.1 Inch |
| Mounting | Tower Mount, Pole Mount, Wall Mount |
| Weight | 8 Kg |
Environmental Specifications | |
| Operating Temperature | -40 to 65 Degree C |
