Manufacturer
CommScope
MPN
SFG23RHDXL-13-B
Available
5
Condition
New

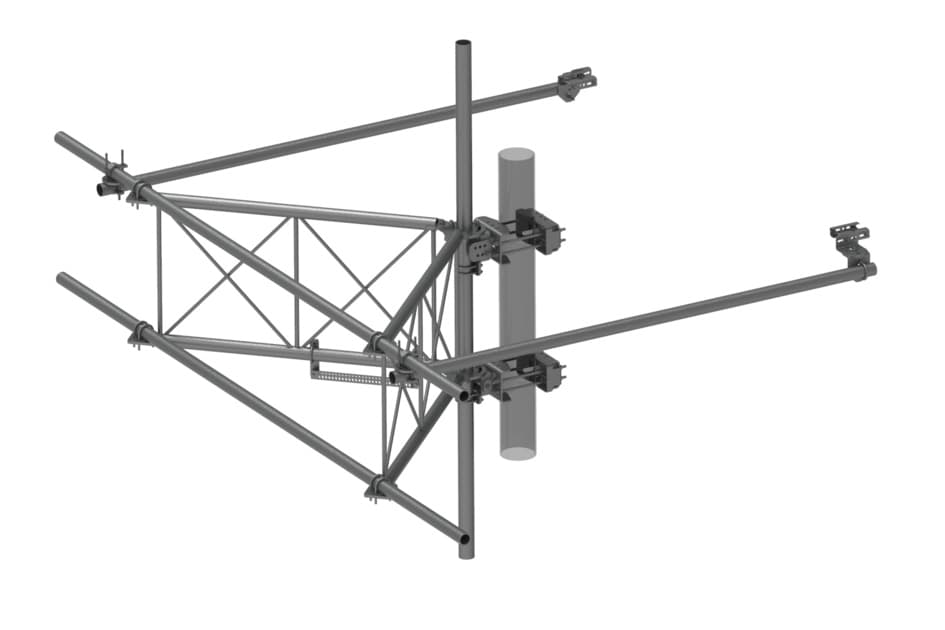

CommScope SFG23RHDXL-13-B - Pim-guard-sf, 13 Face, No-ap, 62 So
The CommScope SFG23RHDXL-13-B is a high-performance Pim-guard-sf antenna designed for use in wireless communication systems. It features a 13 face design with no-ap (no azimuth pattern) and 62 So (62 degree beamwidth) for optimal coverage and signal strength.
General specifications | |
| Mounting | Angle 60°, 203.2 mm (8 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Patent Number | For patents see: www.cs-pat.com |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions | |
| Height | 838.200 mm | 33 in |
| Face Width | 3.962 m | 13 ft |
| Width | 3962.400 mm | 156 in |
| Face Support Pipe Diameter | 73.025 mm | 2.875 in |
| Mounting Diameter, maximum | 203.200 mm | 8 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 1549.400 mm | 61 in |
Material specifications | |
| Material Type | Hot dip galvanized steel |
Please refer to the following attachments for additional details on the product.
No specifications available.
