Manufacturer
CommScope
MPN
SBNHH-1D65A
Available
1
Condition
New

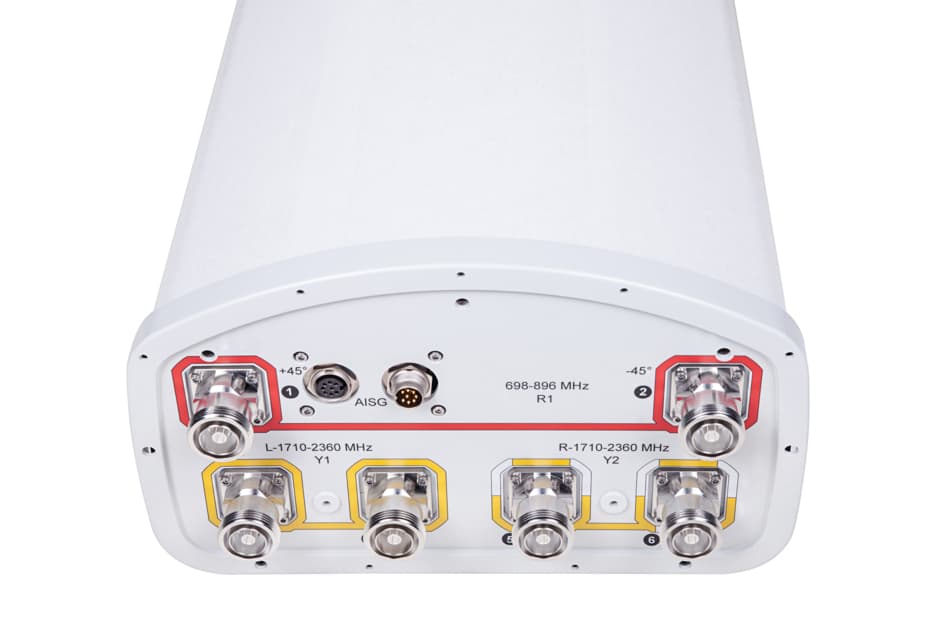

CommScope SBNHH-1D65A - ANT - 2LB, 4HB, 65DEG, 2RET
The CommScope SBNHH-1D65A is a high-performance antenna designed for use in wireless communication systems. It features a compact and durable design, making it suitable for both indoor and outdoor installations.
This antenna has a frequency range of 2.4-2.5 GHz and is capable of providing a gain of 2LB, 4HB, and 65 degrees. It also comes with 2RET functionality, allowing for easy adjustment of the antenna's tilt angle.
General specifications | ||||||
| Antenna Type | Sector | |||||
| Band | Multiband | |||||
| Color | Light Gray (RAL 7035) | |||||
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket | |||||
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN | |||||
| Radome Material | Fiberglass, UV resistant | |||||
| Radiator Material | Aluminum | Low loss circuit board | |||||
| RF Connector Interface | 7-16 DIN Female | |||||
| RF Connector Location | Bottom | |||||
| RF Connector Quantity, high band | 4 | |||||
| RF Connector Quantity, mid band | 0 | |||||
| RF Connector Quantity, low band | 2 | |||||
| RF Connector Quantity, total | 6 | |||||
Remote electrical tilt (ret) information | ||||||
| RET Interface | 8-pin DIN Female | 8-pin DIN Male | |||||
| RET Interface, quantity | 1 female | 1 male | |||||
| Input Voltage | 10–30 Vdc | |||||
| Internal RET | High band (1) | Low band (1) | |||||
| Power Consumption, idle state, maximum | 2 W | |||||
| Power Consumption, normal conditions, maximum | 13 W | |||||
| Protocol | 3GPP/AISG 2.0 (Multi-RET) | |||||
Dimensions | ||||||
| Width | 301 mm | 11.85 in | |||||
| Depth | 180 mm | 7.087 in | |||||
| Length | 1413 mm | 55.63 in | |||||
| Net Weight, without mounting kit | 15.2 kg | 33.51 lb | |||||
Electrical specifications | ||||||
| Impedance | 50 ohm | |||||
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz | |||||
| Polarization | ±45° | |||||
Electrical specifications | ||||||
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain, dBi | 13.4 | 13.5 | 16.5 | 16.7 | 17.2 | 17.5 |
| Beamwidth, Horizontal, degrees | 66 | 61 | 70 | 65 | 62 | 61 |
| Beamwidth, Vertical, degrees | 17.6 | 15.9 | 7.1 | 6.6 | 6.2 | 5.5 |
| Beam Tilt, degrees | 0–18 | 0–18 | 0–10 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 16 | 13 | 13 | 13 | 12 | 12 |
| Front-to-Back Ratio at 180°, dB | 25 | 27 | 28 | 28 | 27 | 29 |
| CPR at Boresight, dB | 22 | 16 | 22 | 25 | 21 | 22 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 30 | 30 | 30 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 200 |
Mechanical specifications | ||||||
| Effective Projective Area (EPA), frontal | 0.19 m² | 2.045 ft² | |||||
| Effective Projective Area (EPA), lateral | 0.16 m² | 1.722 ft² | |||||
| Wind Loading @ Velocity, frontal | 206.0 N @ 150 km/h (46.3 lbf @ 150 km/h) | |||||
| Wind Loading @ Velocity, lateral | 169.0 N @ 150 km/h (38.0 lbf @ 150 km/h) | |||||
| Wind Loading @ Velocity, maximum | 396.0 N @ 150 km/h (89.0 lbf @ 150 km/h) | |||||
| Wind Loading @ Velocity, rear | 208.0 N @ 150 km/h (46.8 lbf @ 150 km/h) | |||||
| Wind Speed, maximum | 241 km/h (150 mph) | |||||
Weights | ||||||
| Weight, gross | 23.4 kg | 51.588 lb |
