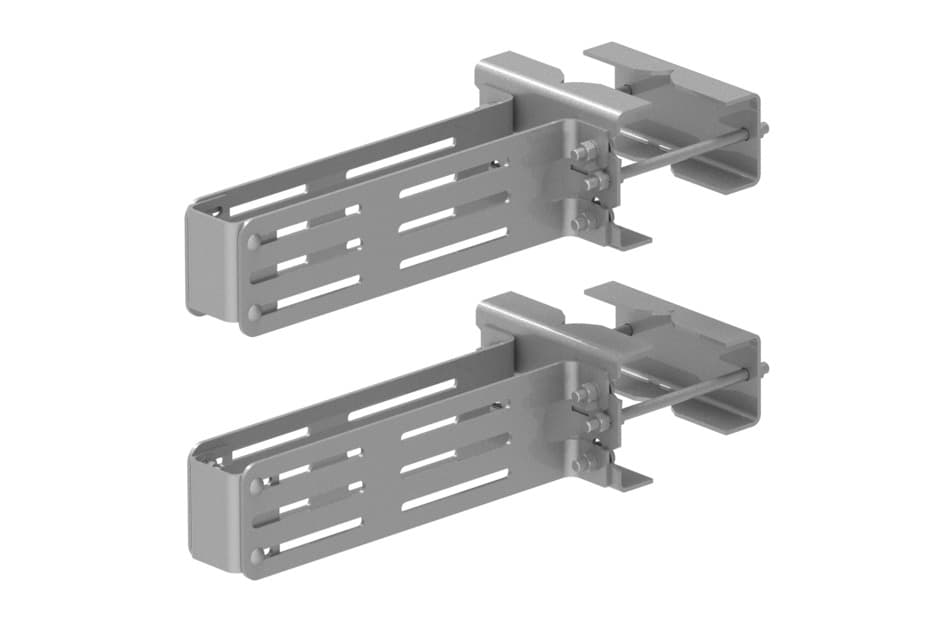

CommScope RR-FA2 - Mnt Kit Rrju B/b Str - Tapered by CommScope

CommScope RR-FA2 - Mount Kit, Rru, Back To Back Mounting, Low Profile, Straight Or Tapered Legs

General specifications
Mounting	Round and angle legs
Radio Compatibility, Ericsson	(2) RRUS11/12/32, 2212, 4415, 4426, 4478 \| 4415 \| 4435 \| 4449 \| 4460 \| 4467 \| 4480 \| 4890 \| 8843 \| 8863
Radio Compatibility, Nokia	AHBCA \| AHBCC \| AHCA \| AHEJ \| AHFB \| AHFIA \| AHFIB \| AHFIC \| AHGB \| AHHA \| AHIA \| AHIB \| AHLBA \| AHLBBA \| AWHHF \| AWHQN \| AZHL \| AZRB
Radio Compatibility Samsung	RF4402D-D1A \| RF4437D \| RF4439D \| RF4440D \| RF4442D \| RFV01U-D1A \| RFV01U-D2A \| RT2201-46A \| RT4401-48A \| RT8808-77A
Tower Taper	Non-tapered \| Tapered
Dimensions
Height	416.56 mm \| 16.4 in
Length	457.2 mm \| 18 in
Mounting Diameter 2, maximum	152.400 mm \| 6 in
Mounting Diameter 2, minimum	38.100 mm \| 1.5 in
Mounting Diameter, maximum	142.24 mm \| 5.6 in
Mounting Diameter, minimum	60.960 mm \| 2.4 in
Material specifications
Material Type	Hot dip galvanized steel
Weights
Weight, net	16.329 kg \| 36 lb

Please refer to the following attachments for additional details on the product.
