Manufacturer
CommScope
MPN
PWRT-210-S
MOQ
67
Available
30,557
Condition
New

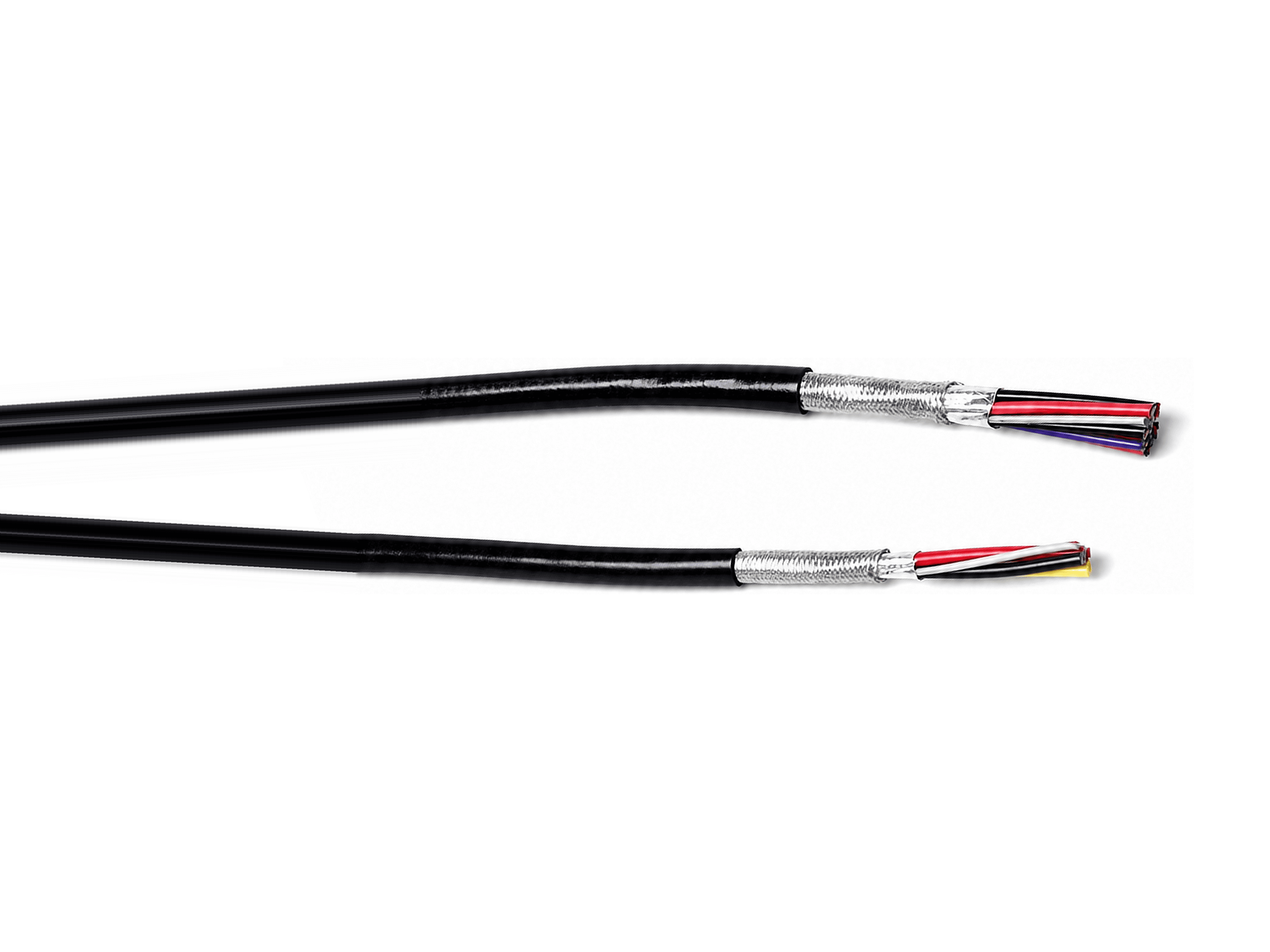

Power Cable 2 X 10g Shielded
The CommScope PWRT-210-S is a high-quality power cable designed for use in data centers and other networking environments. This cable features shielded conductors, providing superior protection against electromagnetic interference (EMI) and ensuring reliable power transmission. The cable is also equipped with certification, guaranteeing its compliance with industry standards for safety and performance
Specifications | |
| able Type | Power |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 2 |
| Construction Type | Discrete power cable / Non-armored |
| Ground Wire Type | Stranded |
| Jacket Color | Black |
| Jacket Color, singles | Black / Red |
| Supported Application | Industrial |
| Diameter Over Conductor, singles, specific | 0.1260 in per 105 strands |
| Diameter Over Dielectric | 4.724 mm / 0.186 in |
| Diameter Over Drain Wire, specific | 1.8800 in per 7 strands |
| Diameter Over Ground Wire | 3.2 mm / 0.126 in |
| Diameter Over Jacket, nominal | 12.395 mm / 0.488 in |
| Diameter Over Jacket, maximum | 12.954 mm / 0.51 in |
| Diameter Over Shield (Braid) | 10.109 mm / 0.398 in |
| Jacket Thickness | 1.143 mm / 0.045 in |
| Conductor Gauge, singles | 10 AWG |
| Drain Wire Gauge | 14 AWG |
| Ground Wire Gauge | 10 AWG |
| Outer Shield (Braid) Gauge | 36 AWG |
| Conductor dc Resistance | 3.478 ohms/km / 1.06 ohms/kft |
| Safety Voltage Rating | 600 V |
