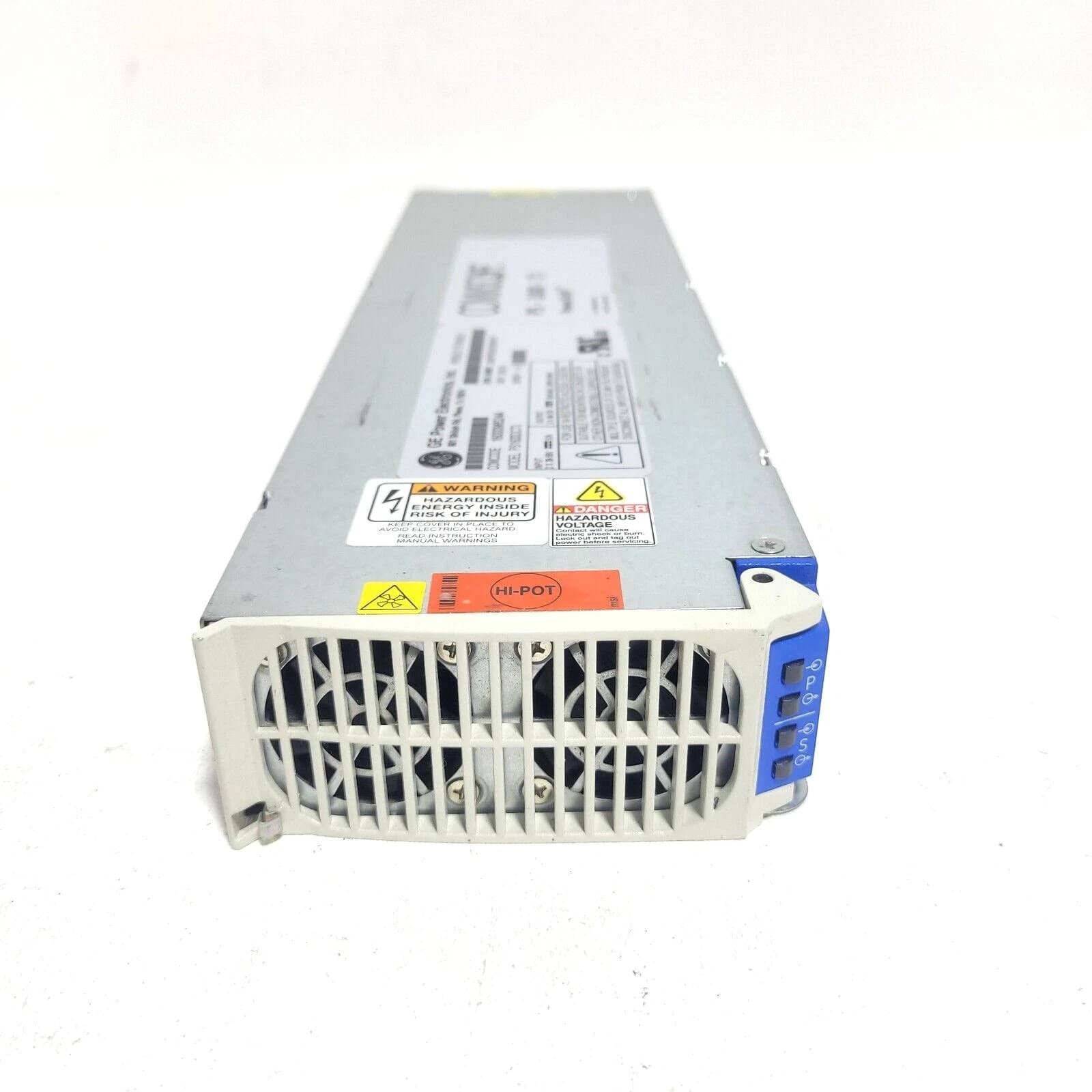

CommScope PS-1600-73 - POWERSHIFT (TM) 1600 WATT MODULE 73V
Slide 1 of 1
Manufacturer
CommScope
MPN
PS-1600-73
Available
6
Condition
New
The Commscope PS-1600-73 Powershift 1600 Watt Module 73V is a high-performance power supply designed to provide reliable and efficient power for a variety of applications. This module features a wide input voltage range of 85-264VAC and a wide output voltage range of 0-73V. It is equipped with a built-in EMI filter and over-voltage protection to ensure safe operation. The module is also designed with a low-noise fan to keep the unit cool and efficient. This module is ideal for powering a variety of devices such as computers, servers, and other electronic equipment.
Features and Benefits
- Reduced capital/operating expenditures
- Engineering flexibility
- Future-ready design
Product Classification
| Product Type | Module |
| Product Brand | PowerShift Macro® |
| Product Series | V2 |
Dimensions
| Height | 41.402 mm | 1.63 in |
| Width | 101.6 mm | 4 in |
| Depth | 351.79 mm | 13.85 in |
Electrical Specifications
| Input Current Range | 0-57 A @ -38Vdc |
| Input Voltage Range | -38 to -58 Vdc |
| Input Voltage, nominal | -54 Vdc |
| Output Current Range | 0-30 A |
| Output Voltage Range | -48 to -73 Vdc |
| Output Voltage Ripple | 400 mVpp |
| Output Voltage, nominal | -56 Vdc |
| Electrical Safety Standard | CE | IEC 60950 | UL | cUL |
| Electromagnetic Compatibility/Interference (EMC/EMI) | EN 55022 Class A |
| Power Efficiency | 93 % |
| Power Efficiency, nominal | 97 % |
| Programmable RRU Voltage, nominal | -56 Vdc |
| Total Output Power | 2000 W, input voltage dependent |
Environmental Specifications
| Relative Humidity | 95%, non-condensing |
| Ambient Temperature | -40 °C | -40 °F | 65 °C | 149 °F |
| Mean Time Between Failures (MTBF) at Temperature | 300,000 h @ 25 °C |
