Manufacturer
CommScope
MPN
RDT-SM12K00P12290
Available
1
Condition
New

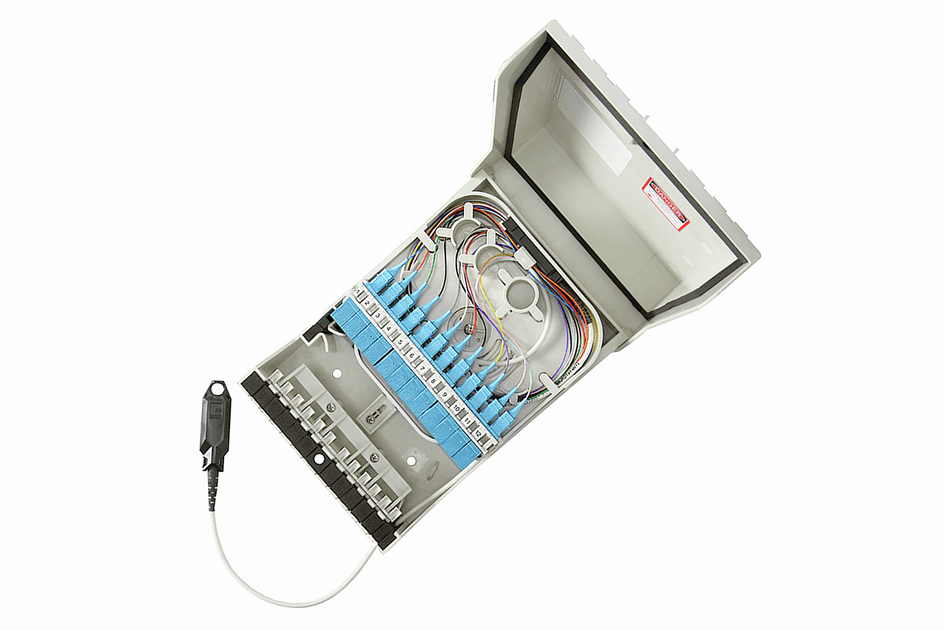

CommScope - Panel 12 fiber rdt wall-mnt sm lcu-unc sm ps 122M adc telecom inc - RDT-SM12K00P12290
The Commscope Technologies LLC RDT-SM12K00P12290 is a 12-fiber wall-mounted panel designed for use in central office and headend applications. This panel features an LCU-UNC SM PS 122M ADC Telecom Inc connector, allowing for easy installation and maintenance. The panel is designed to provide reliable performance and is suitable for a variety of applications.
Designed to provide a quick and simple solution for installing fiber in small and medium sized MDU's
Incorporates a unique fiber cable spooling system that stores up fiber cable within the enclosure
Removes the need for field termination and extensive site survey inspections
General Specifications | |
| Functionality | Patching |
| Adapters, quantity | 6 |
| Cable Entry Location | Bottom left | Bottom right |
| Cable Type | Plenum - Stranded |
| Color | Gray |
| Interface | LC/UPC |
| Interface, stub | No connector |
| Mounting | Wall |
| Port, quantity | 12 |
Dimensions | |
| Height | 200 mm | 7.874 in |
| Width | 140 mm | 5.512 in |
| Depth | 60 mm | 2.362 in |
| Cable Length | 121.92 m | 400 ft |
| Outer Cable Diameter | 3 mm | 0.118 in |
Material Specifications | |
| Material Type | Plastic |
Optical Specifications | |
| Fiber Mode | Singlemode |
Environmental Specifications | |
| Environmental Space | Indoor |
