Manufacturer
CommScope
MPN
RDT-SM12K00P03090
Available
3
Condition
New

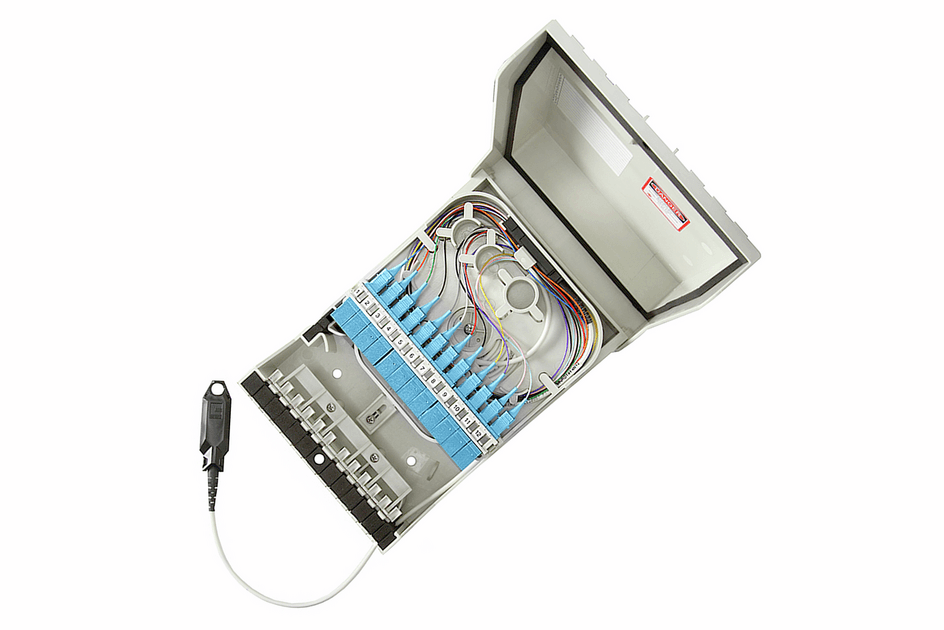

CommScope - Panel 12 fiber rdt wall-mnt sm lcu-unc sm ps 030M adc telecom inc - RDT-SM12K00P03090
The Commscope Technologies LLC RDT-SM12K00P03090 is a 12-fiber wall-mounted panel designed for use in central office and headend applications. This panel features a small form factor, low-cost uncoupled single-mode PS 030M adapter from ADC Telecom Inc. It is designed to provide reliable and secure connections for fiber optic networks. The panel is easy to install and maintain, and is suitable for a variety of applications.
Designed to provide a quick and simple solution for installing fiber in small and medium sized MDU's
Incorporates a unique fiber cable spooling system that stores up fiber cable within the enclosure
Removes the need for field termination and extensive site survey inspections
General Specifications | |
| Functionality | Patching |
| Adapters, quantity | 6 |
| Cable Entry Location | Bottom left | Bottom right |
| Cable Type | Plenum - Stranded |
| Color | Gray |
| Interface | LC/UPC |
| Interface, stub | No connector |
| Mounting | Wall |
| Port, quantity | 12 |
Dimensions | |
| Height | 200 mm | 7.874 in |
| Width | 140 mm | 5.512 in |
| Depth | 60 mm | 2.362 in |
| Outer Cable Diameter | 3 mm | 0.118 in |
Material Specifications | |
| Material Type | Plastic |
Optical Specifications | |
| Fiber Mode | Singlemode |
Environmental Specifications | |
| Environmental Space | Indoor |
Please refer to the following attachments for additional details on the product.
