CommScope NNH4-45B-R6 - Commscope, Nnh4-45b-r6, 6ft Ultra-broadband, 12-port Sector Antenna, 4x 698896 And 8x 16952360 Mhz, 45deg Hpbw, 6x Ret: Incl Std Mntg Bracket And Actuators:, 6ft Ultra-broadband, 12-port Sector Antenna, 4x 698896 And 8x 16952360 Mhz, 45deg Hpbw, 6x Ret: Incl Std Mntg Bracket And Actuators:
Slide 1 of 1
Manufacturer
CommScope
MPN
NNH4-45B-R6
Available
0
Condition
New
CommScope NNH4-45B-R6 - Commscope, Nnh4-45b-r6, 6ft Ultra-broadband, 12-port Sector Antenna, 4x 698896 And 8x 16952360 Mhz, 45deg Hpbw, 6x Ret: Incl Std Mntg Bracket And Actuators:, 6ft Ultra-broadband, 12-port Sector Antenna, 4x 698896 And 8x 16952360 Mhz, 45deg Hpbw, 6x Ret: Incl Std Mntg Bracket And Actuators:
Features and benefits
- Interleaved dipole technology providing for attractive, low wind load mechanical package
- Array configuration provides capability for 4T4R (4x MIMO) on Low band and Dual 4T4R (4x MIMO) on High band
- Optimized SPR performance across all operating bands
- Excellent wind loading characteristics
- The antenna is supplied with mounting kits that provide 0 degree of mechanical downtilt; optional downtilt mounting kits are available
Please refer to the following attachments for additional details on the product.
- Antenna Type:
- Sector
- Band:
- Multiband
- Color:
- Light Gray (RAL 7035)
- Grounding Type:
- RF connector inner conductor and body grounded to reflector and mounting bracket
- Performance Note:
- Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
- Radome Material:
- Fiberglass, UV resistant
- Radiator Material:
- Aluminum | Low loss circuit board
- Reflector Material:
- Aluminum

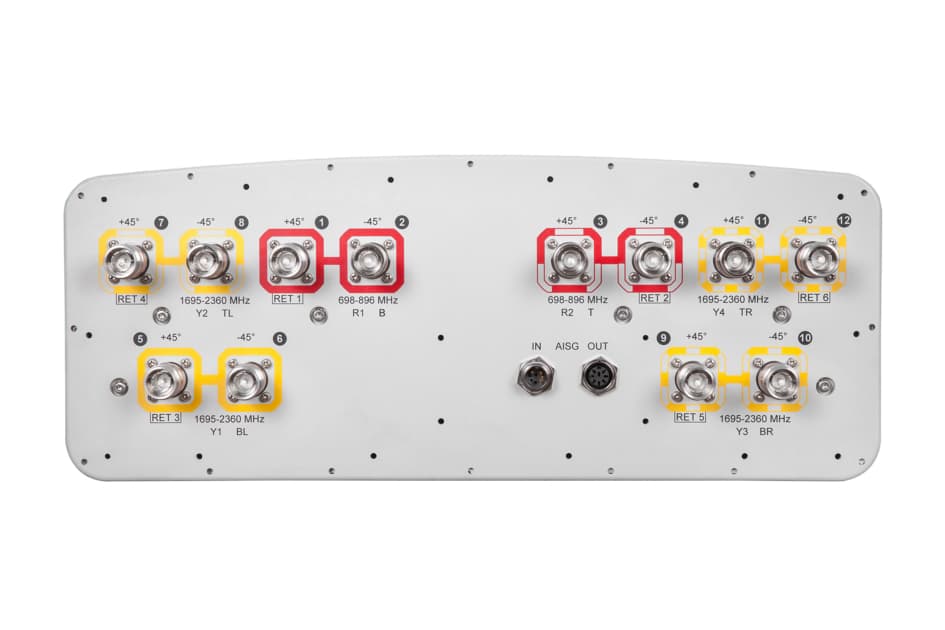

- RF Connector Interface:
- 4.3-10 Female
- RF Connector Location:
- Bottom
- RF Connector Quantity, high band:
- 8
- RF Connector Quantity, mid band:
- 0
- RF Connector Quantity, low band:
- 4
- RF Connector Quantity, total:
- 12
- RET Hardware:
- CommRET v2
- RET Interface:
- 8-pin DIN Female | 8-pin DIN Male
- RET Interface, quantity:
- 1 female | 1 male
- Input Voltage:
- 10–30 Vdc
- Internal RET:
- High band (4) | Low band (2)
- Power Consumption, idle state, maximum:
- 1 W
- Power Consumption, normal conditions, maximum:
- 8 W
- Protocol:
- 3GPP/AISG 2.0 (Multi-RET)
- Width:
- 457 mm | 17.992 in
- Depth:
- 178 mm | 7.008 in
- Length:
- 1848 mm | 72.756 in
- Net Weight, without mounting kit:
- 36.4 kg | 80.248 lb
- Impedance:
- 50 ohm
- Operating Frequency Band:
- 698 – 896 MHz | 1695 – 2360 MHz
- Polarization:
- ±45°
- Total Input Power, maximum:
- 900 W @ 50 °C
- Effective Projective Area (EPA), frontal:
- 1.01 m² | 10.872 ft²
- Effective Projective Area (EPA), lateral:
- 0.21 m² | 2.26 ft²
- Mechanical Tilt Range:
- 0°–15°
- Wind Loading @ Velocity, frontal:
- 1,077.0 N @ 150 km/h (242.1 lbf @ 150 km/h)
- Wind Loading @ Velocity, lateral:
- 222.0 N @ 150 km/h (49.9 lbf @ 150 km/h)
- Wind Loading @ Velocity, maximum:
- 1,077.0 N @ 150 km/h (242.1 lbf @ 150 km/h)
- Wind Loading @ Velocity, rear:
- 946.0 N @ 150 km/h (212.7 lbf @ 150 km/h)
- Wind Speed, maximum:
- 241 km/h (150 mph)
- Weight, gross:
- 49.3 kg | 108.688 lb
