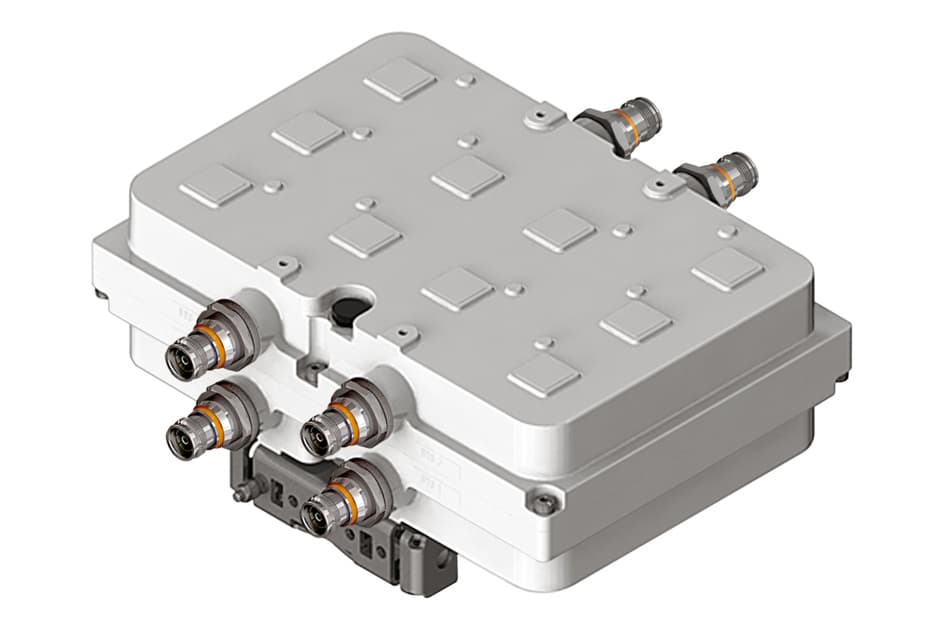

CommScope IMFQ-AWSBAS-43 - Commscope,imfq-awsbas-43,aws Quad Imf For Bas Colocation,, Aws Quad Imf For Bas Colocation
Slide 1 of 1
Manufacturer
CommScope
MPN
IMFQ-AWSBAS-43
Available
1
Condition
New
CommScope IMFQ-AWSBAS-43 - Commscope,imfq-awsbas-43,aws Quad Imf For Bas Colocation,, Aws Quad Imf For Bas Colocation
Features and benefits
- Provides interference mitigation in the Broadcast Auxiliary Service band of 2097.5-2109.5 MHz
- Supports dual band PCS/AWS radios with diplexed ports or diplexed single band radios
- Supports AWS1-4 and PCS bands (1695–1780, 1850–2000 & 2110–2200 MHz)
- Easy to install in existing AWS systems and prevent adjacent channel interference for BAS licensees
- New 4.3-10 connectors for improved PIM performance and size reduction
- Compact form factor with reduced size and weight
- Available in twin (IMFT-AWSBAS-43) and quad (IMFQ-AWSBAS-43) configurations
Please refer to the following attachments for additional details on the product.
- Product Type:
- Interference mitigation filter
- Color:
- Gray
- Modularity:
- 4-Quad
- Mounting Pipe Hardware:
- Band clamps (2)
- RF Connector Interface:
- 4.3-10 Female
- RF Connector Interface Body Style:
- Long neck
- Height:
- 298 mm | 11.732 in
- Width:
- 204 mm | 8.031 in
- Depth:
- 100 mm | 3.937 in
- Ground Screw Diameter:
- 5 mm | 0.197 in
- dc/AISG Pass-through Path:
- ANT port to BTS port
- Lightning Surge Current:
- 10 kA
- Lightning Surge Current Waveform:
- 8/20 waveform
- Operating Temperature:
- -40 °C to +65 °C (-40 °F to +149 °F)
- Relative Humidity:
- Up to 100%
- Weight, without mounting hardware:
- 8.2 kg | 18.078 lb
